NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1NDTV

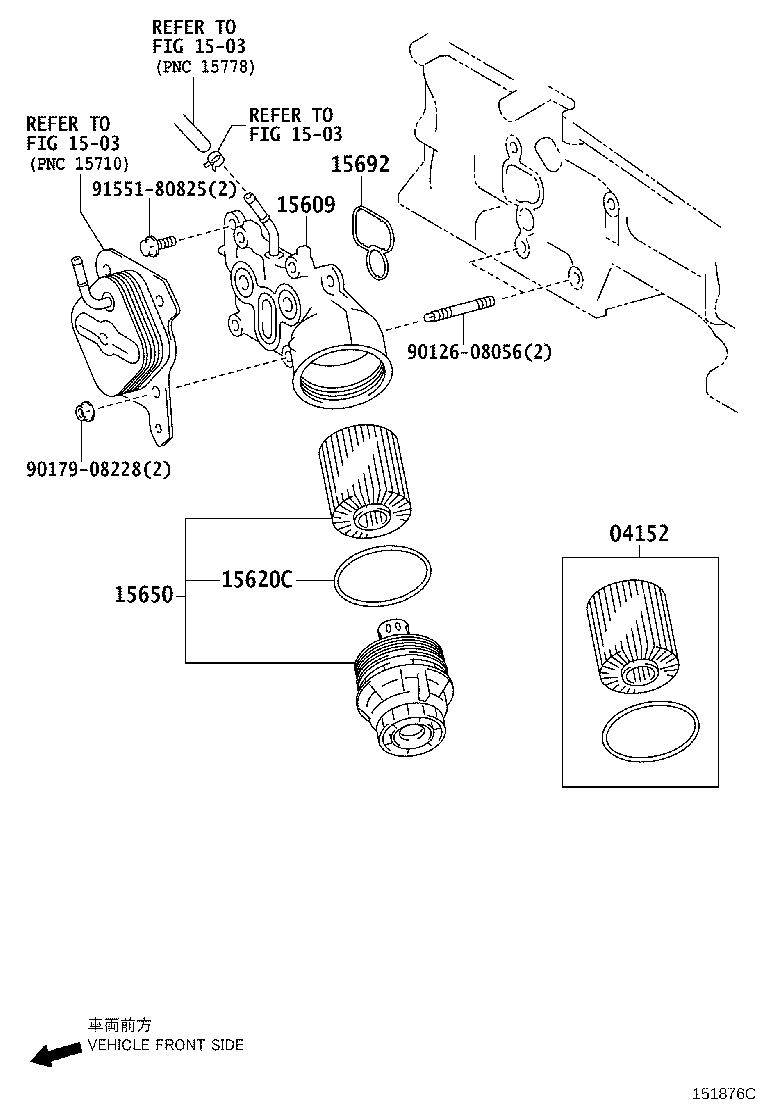

Click highlighted areas on diagram

diagram 04152 1503 1503 1503 15609 15620C 15650 15692 9012608056 9017908228 9155180825
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31110

1NDTV..NLP130

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0N010

1NDTV..NLP130

(L)

 1
15609-33030

1NDTV..NLP130

(J)

 1
15609-33030

1NDTV..NLP130

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

1NDTV..NLP130

 1
15650 - CAP ASSY, OIL FILTER W/ELEMEMT
15650-33010

1NDTV..NLP130

 1
15692 - GASKET, OIL FILTER BRACKET
15692-33010

1NDTV..NLP130

 1
Common parts
90126-08056
90179-08228
91551-80825
Linked diagrams
1503
