NLP130L-CGFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1NDTV

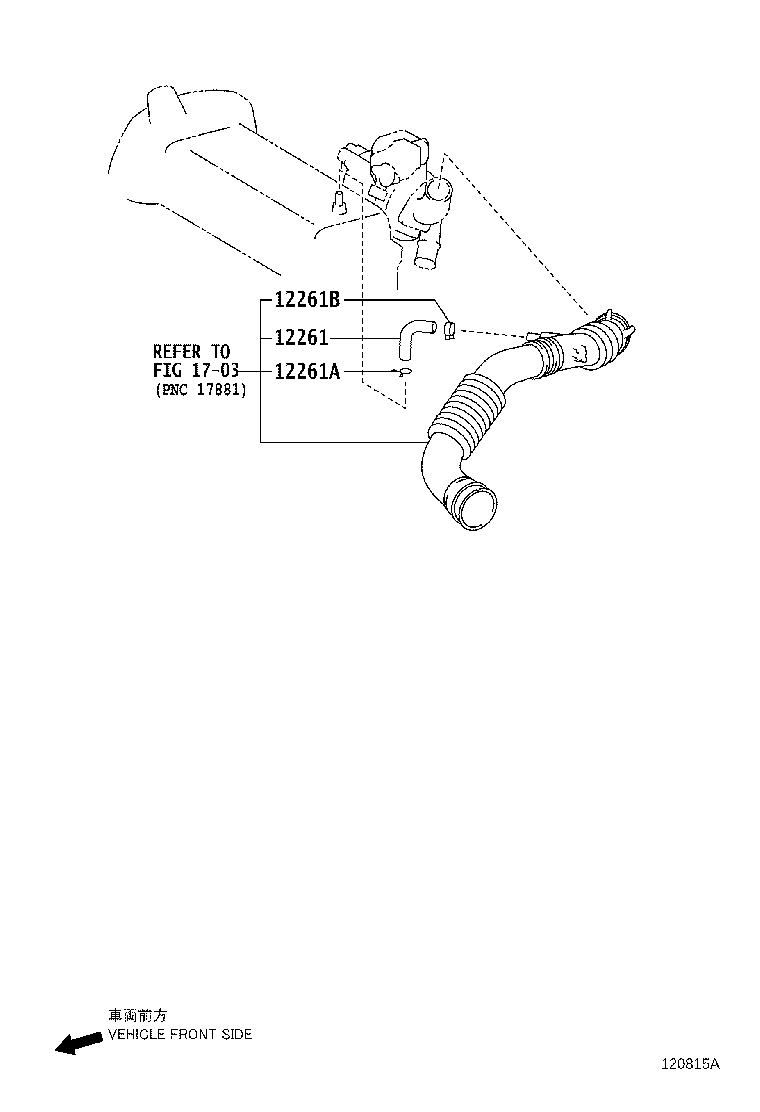

Click highlighted areas on diagram

diagram 12261 12261A 12261B 1703
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-33100

1NDTV..NLP130

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

1NDTV..NLP130

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21010

1NDTV..NLP130

 1
Linked diagrams
1703
