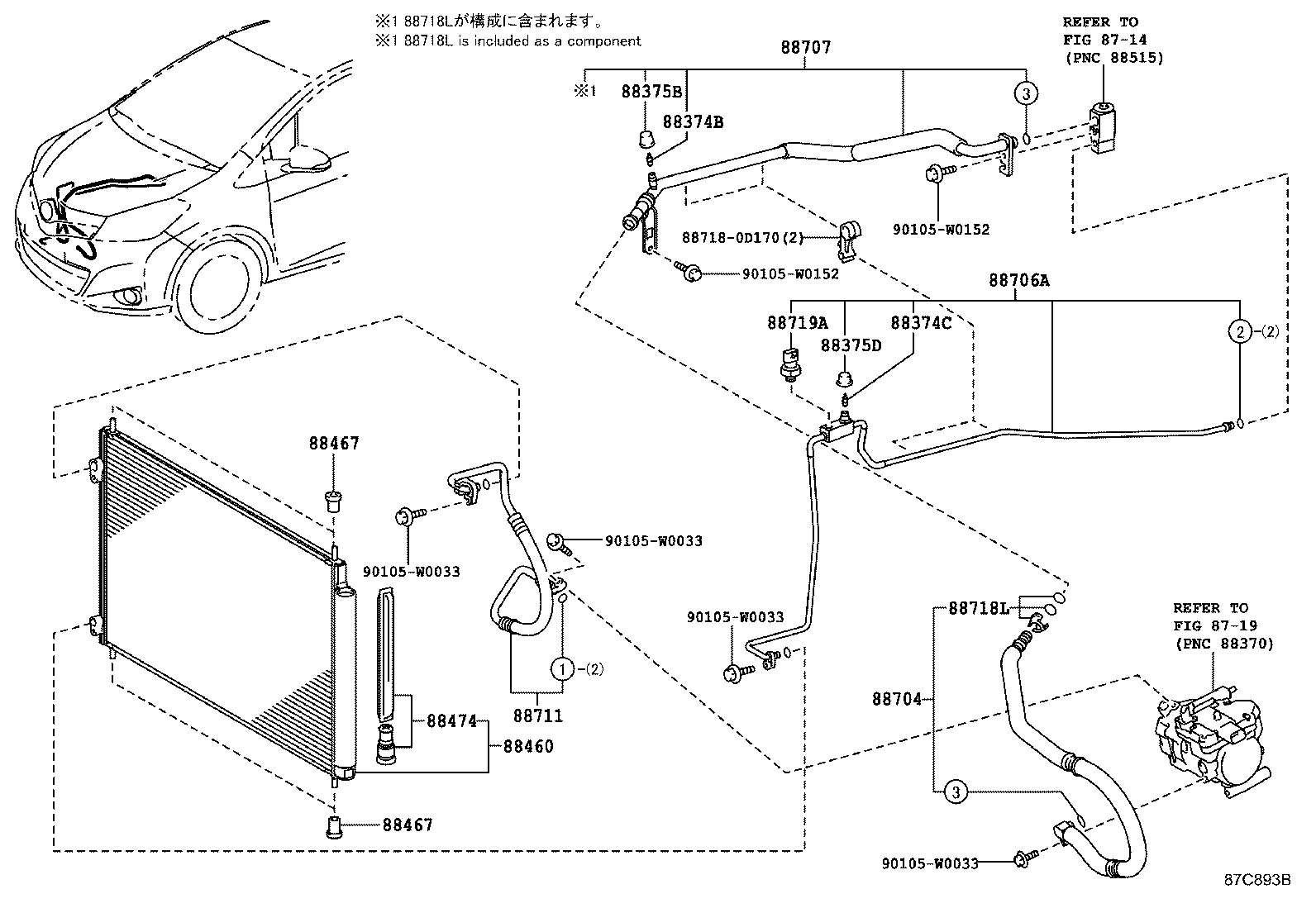

Toyota Yaris/hybrid (frp) NHP130 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-33010	NHP130	04/2012 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-0D220	NHP130	04/2012 - 07/2014	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NHP130	04/2012 - 07/2014	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NHP130	04/2012 - 07/2014	4
88474 - DRYER, COOLER
88474-47020	NHP130	04/2012 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D070	NHP130	04/2012 - 12/2999	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D470	NHP130	04/2012 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0D290	NHP130	04/2012 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D370	NHP130	04/2012 - 12/2999	1
88718L - CLAMP, PIPING
88718-52280	NHP130	04/2012 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
88718-0D170
90105-W0033
90105-W0152
Linked diagrams
8714
8719

NHP130R-CHXNBW (2012)
