NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130..RHD

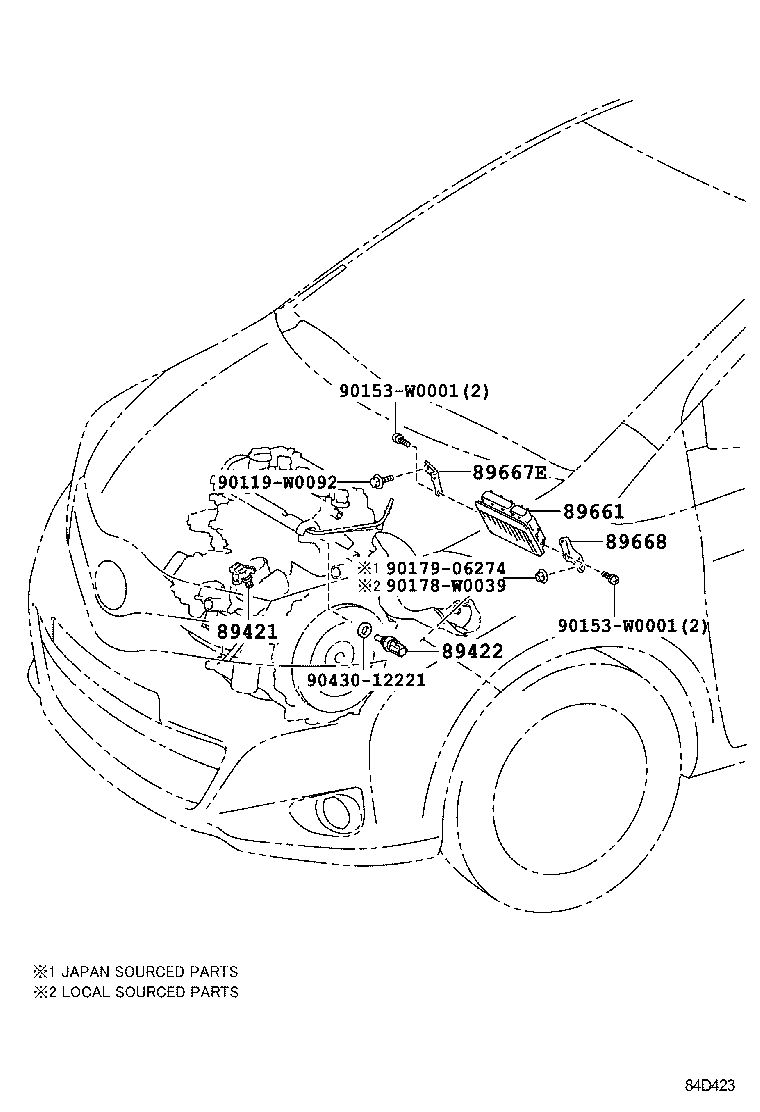

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 90119W0092 90153W0001 90153W0001 90178W0039 9017906274 9043012221
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

NHP130

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP130,NHP130,NSP130

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DC00

NHP130

 1
89661-0DN00

NHP130

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
89661-0DN00

NHP130..RHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE

 1
89661-0DC01

NHP130

 1
89661-0DN01

NHP130

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
89661-0DN01

NHP130..RHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0D120

NHP130,NSP130..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D120

NHP130,NSP130..RHD

 1
Common parts
90119-W0092
90153-W0001
90178-W0039
90179-06274
90430-12221
