Toyota Yaris/hybrid (frp) NHP130 SWITCH & RELAY & COMPUTER

Part #	Description	Period	Qty

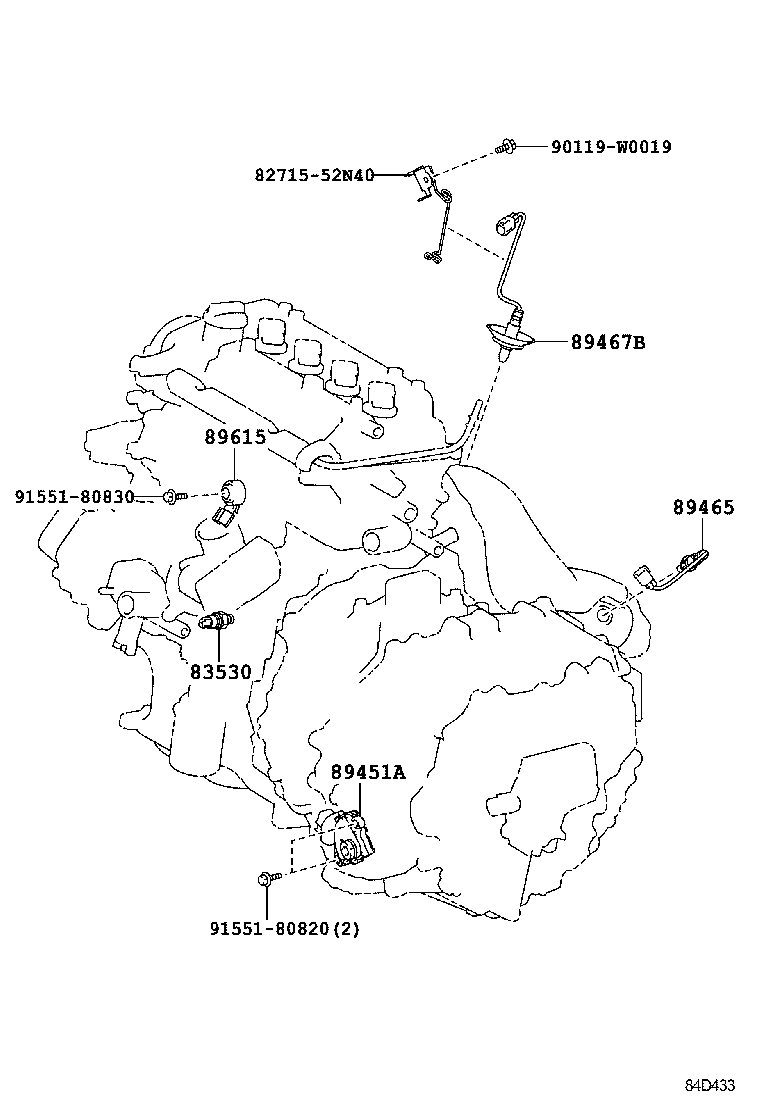

83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020	KSP130,NHP130,NSP130 YAZAKI	07/2011 - 12/2999	1
83530-28020	KSP130,NHP130,NSP130 DENSO	07/2011 - 12/2999	1
83530-05010	KSP130,NHP130,NSP130 VALEO	07/2011 - 12/2999	1
89451A - SENSOR, SHIFT LEVER POSITION
89451-52040	NHP130	04/2012 - 07/2014	1
89465 - SENSOR, OXYGEN
89465-52670	NHP130	04/2012 - 12/2999	1
89467B - SENSOR, AIR FUEL RATIO
89467-52080	NHP130	04/2012 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	NHP130,NSP130	07/2011 - 12/2999	1
Common parts
82715-52N40
90119-W0019
91551-80820
91551-80830

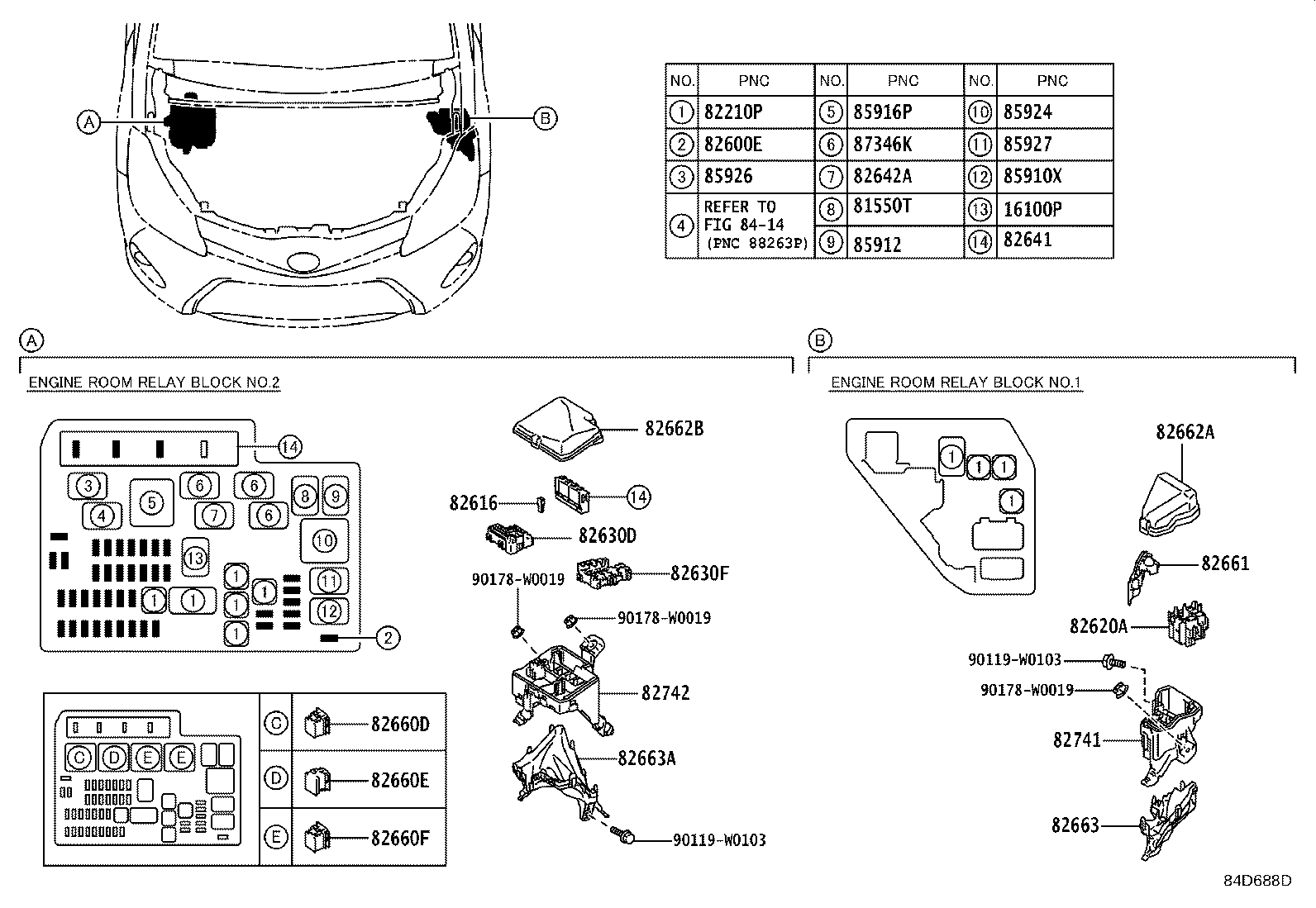

Part #	Description	Period	Qty
16100P - RELAY, WATER PUMP
90080-87021	1NZFXE..NHP130	04/2012 - 12/2999	1
81550T - RELAY, BACK UP LAMP
90080-87021	NHP130	04/2012 - 12/2999	1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08294	KSP130,NHP130,NLP130,NSP130 40A,TERM.:FEMALE,GRN	07/2011 - 07/2014	1
90982-08300	KSP130,NHP130,NLP130,NSP130 50A-30A-30A,FEMALE	07/2011 - 07/2014	1
90982-08296	KSP130,NHP130,NLP130,NSP130 50A,TERM.:FEMALE,RED	07/2011 - 07/2014	1
90982-08295	NHP130 30A,TERM.:FEMALE,PNK	04/2012 - 07/2014	1
90982-08246	NHP130 100A,TERM.:MALE,BLUE	04/2012 - 07/2014	1
82600E - ENGINE ROOM FUSE
90982-09022	KSP130,NHP130,NLP130,NSP130 15A,MINI FUSE,BLUE	07/2011 - 07/2014	1
90982-09024	KSP130,NHP130,NLP130,NSP130 25A,MINI FUSE	07/2011 - 07/2014	1
90982-09025	KSP130,NHP130,NLP130,NSP130 30A,MINI FUSE,GRN	07/2011 - 07/2014	1
90982-09019	KSP130,NHP130,NLP130,NSP130 5A,MINI FUSE,TAN	07/2011 - 07/2014	1
90982-09021	KSP130,NHP130,NLP130,NSP130 10A,MINI FUSE,RED	07/2011 - 07/2014	1
90982-09020	KSP130,NHP130,NLP130,NSP130 7.5A,MINI FUSE,BROWN	07/2011 - 07/2014	1
90982-09023	KSP130,NHP130,NLP130,NSP130 20A,MINI FUSE,YELLOW	07/2011 - 07/2014	1
82616 - PULLER, FUSE
82616-58010	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-52091	NHP130	03/2013 - 07/2014	1
82620-52090	NHP130	04/2012 - 03/2013	1
82630D - HOLDER, FUSE
82631-52050	NHP130	04/2012 - 07/2014	1
82630F - HOLDER, FUSE
82631-52060	NHP130	04/2012 - 07/2014	1
82641 - RELAY, INTEGRATION NO.1
82641-47020	NHP130	04/2012 - 07/2014	1
82642A - RELAY, RUNNING LIGHT
90080-87021	NHP130	04/2012 - 12/2999	1
82660D - BLOCK ASSY, RELAY
82660-0C110	NHP130	04/2012 - 07/2014	1
82660E - BLOCK ASSY, RELAY
82660-0H070	NHP130	04/2012 - 07/2014	1
82660F - BLOCK ASSY, RELAY
82660-52010	NHP130..RHD	04/2012 - 07/2014	1
82661 - COVER, RELAY BLOCK, NO.1
82661-52030	NHP130	04/2012 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-52791	NHP130	02/2013 - 12/2999	1
82662-52790	NHP130	04/2012 - 02/2013	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-52800	NHP130	04/2012 - 12/2999	1
82663 - COVER, RELAY BLOCK, LOWER
82663-52100	NHP130	04/2012 - 07/2014	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-52110	NHP130	04/2012 - 07/2014	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-52090	NHP130	04/2012 - 07/2014	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-52100	NHP130	04/2012 - 07/2014	1
85910X - RELAY, HEATER MIRROR
90080-87021	NHP130 OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	04/2012 - 12/2999	1
90080-87021	NHP130 OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 12/2999	1
90080-87021	NHP130..ACTIV OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	04/2012 - 12/2999	1
85912 - RELAY, DEFOGGER
90080-87020	NHP130	04/2012 - 12/2999	1
85916P - RELAY, HEADLAMP
90080-87030	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
85924 - RELAY, IGNITION CONTROL
90080-87030	NHP130	04/2012 - 12/2999	1
85926 - RELAY, HEADLAMP DIMMER
90080-87021	NHP130	04/2012 - 12/2999	1
85927 - RELAY, COOLING FAN
90080-87021	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
90119-W0103
90178-W0019
Linked diagrams
8414

NHP130R-CHXNBW (2012)

ILLUST NO. 1 OF 7(1204- )NHP130

ILLUST NO. 3 OF 7(1204- )NHP130

ILLUST NO. 2 OF 7(1204- )NHP130

Part Price Details

Part #	Description	Period	Qty

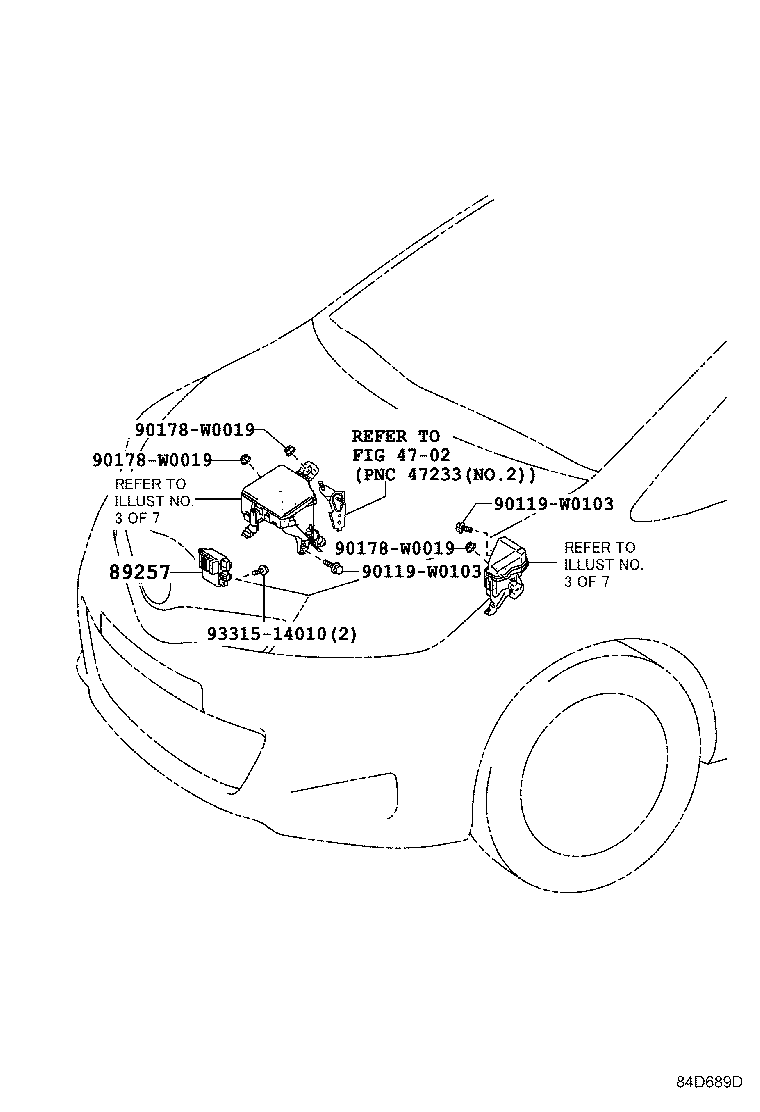

89257 - COMPUTER, COOLING FAN
89257-12020	NHP130	04/2012 - 07/2014	1
Common parts
90119-W0103
90178-W0019
93315-14010
Linked diagrams
4702
