NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1204- )NHP130

Click highlighted areas on diagram

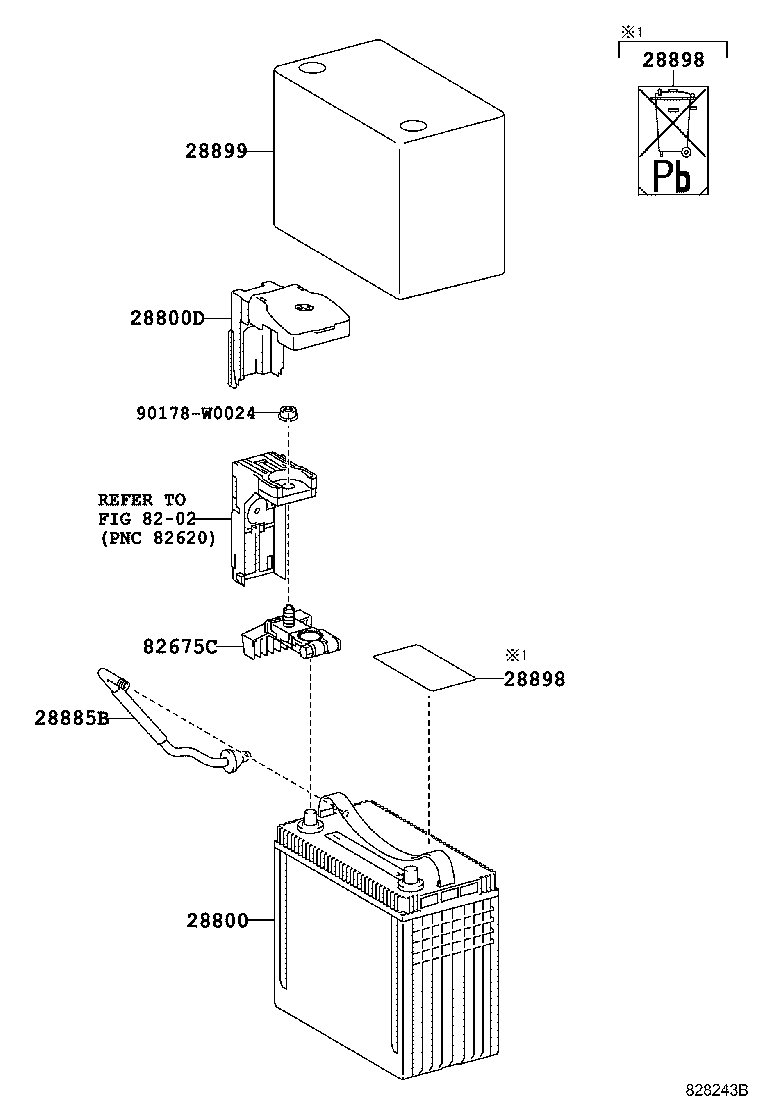

12V BATTERY

diagram 28800 28800D 28885B 28898 28898 28899 8202 82675C 90178W0024
Part # Description Qty Price
28800 - BATTERY
28800-21181

1NZFXE..NHP130

S34B20R

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-47110

1NZFXE..NHP130

 1
28885B - HOSE, BATTERY
28885-21070

1NZFXE..NHP130

 1
28898 - PLATE, BATTERY
28898-16020

1NZFXE..NHP130

 1
28898 - PLATE, BATTERY
28898-16020

1NZFXE..NHP130

 1
28899 - INSULATOR, BATTERY
28877-21030

1NZFXE..NHP130

 1
82675C - TERMINAL, JUNCTION
82675-52160

NHP130

 1
Common parts
90178-W0024
Linked diagrams
8202

ILLUST NO. 2 OF 4(1204- )NHP130

Click highlighted areas on diagram

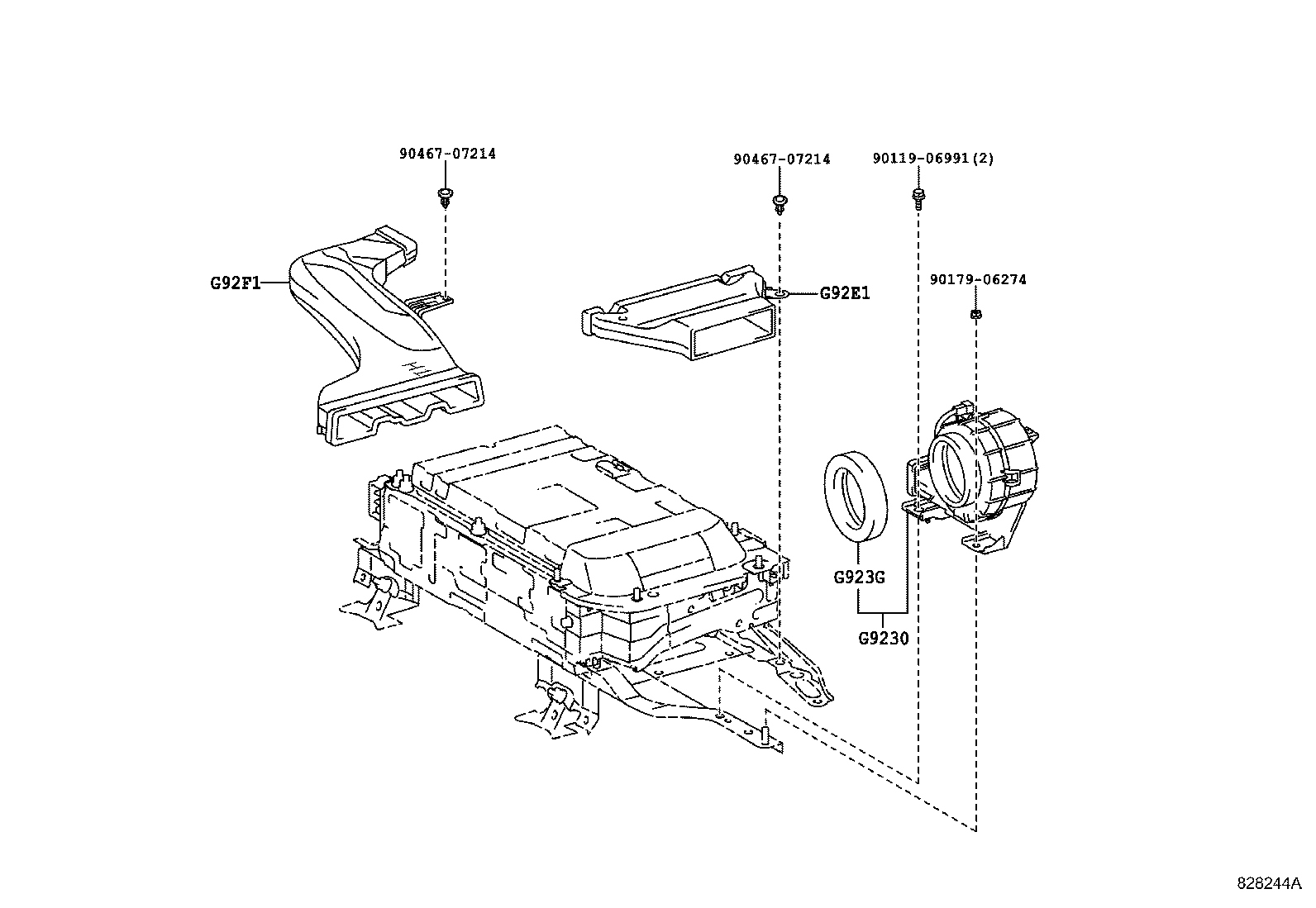

HV BATTERY

diagram 9011906991 9017906274 9046707214 9046707214 G9230 G923G G92E1 G92F1
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-52010

NHP130

 1
G923G - MESH, BATTERY COOLING BLOWER
G923G-52010

NHP130

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-52010

NHP130

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-0D010

NHP130

 1
Common parts
90119-06991
90179-06274
90467-07214

ILLUST NO. 3 OF 4(1204- )NHP130

Click highlighted areas on diagram

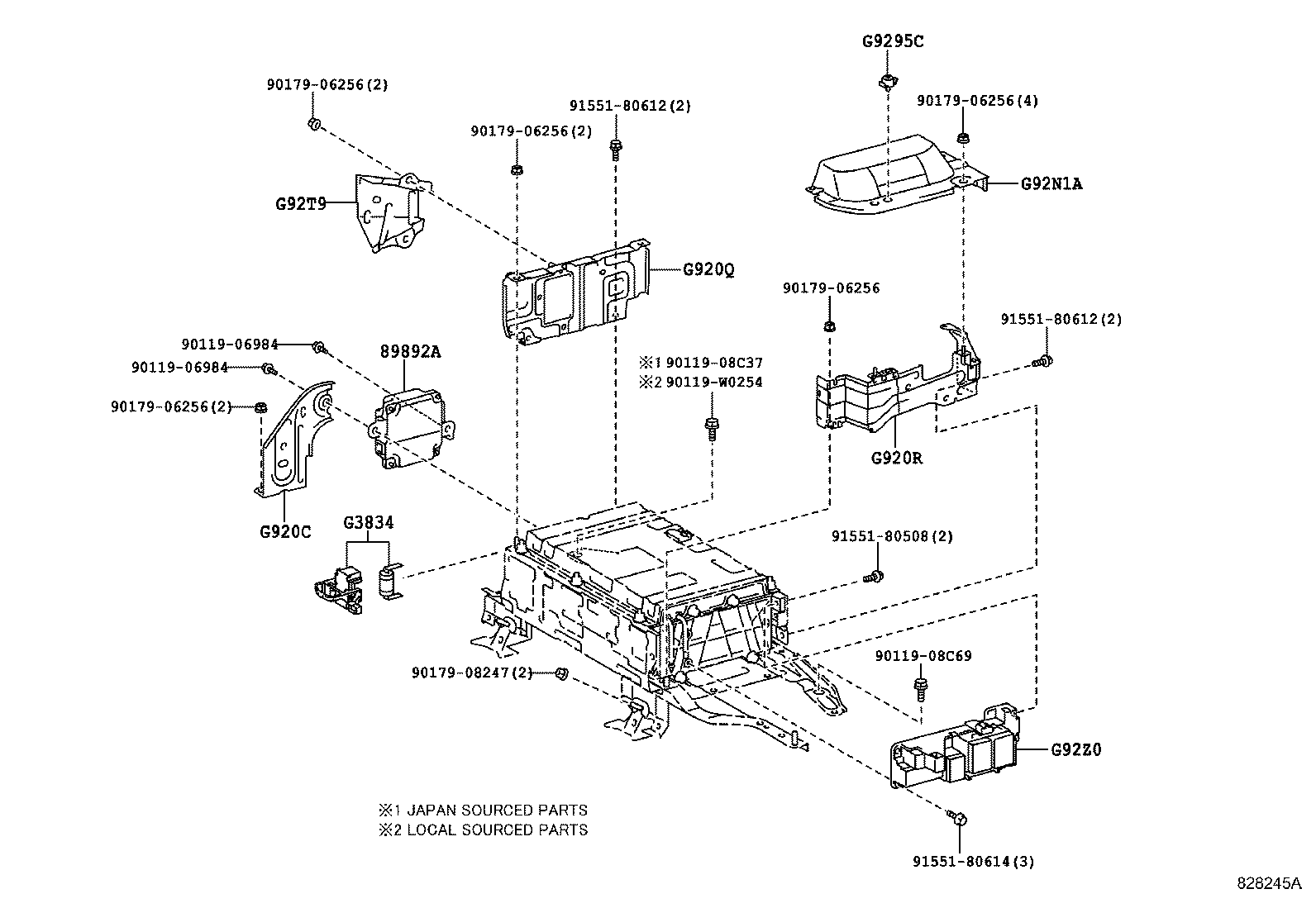

HV BATTERY

diagram 89892A 9011906984 9011906984 9011908C37 9011908C69 90119W0254 9017906256 9017906256 9017906256 9017906256 9017906256 9017908247 9155180508 9155180612 9155180612 9155180614 G3834 G920C G920Q G920R G9295C G92N1A G92T9 G92Z0
Part # Description Qty Price
89892A - SENSOR, BATTERY VOLTAGE
89892-52010

NHP130

 1
89892-52011

NHP130

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

NHP130

 1
G920C - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.2
G92LB-52010

NHP130

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-52010

NHP130

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-52010

NHP130

 1
G9295C - STRIKER, BATTERY COVER LOCK, NO.2
G9295-30020

NHP130

 1
G92N1A - PANEL, HV BATTERY LH COVER, NO.1
G92NE-52010

NHP130

 1
G92T9 - COVER, HYBRID BATTERY SERVICE PLUG
G92T9-52010

NHP130

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33030

NHP130

 1
G92Z0-33020

NHP130

 1
Common parts
90119-06984
90119-08C37
90119-08C69
90119-W0254
90179-06256
90179-08247
91551-80508
91551-80612
91551-80614

ILLUST NO. 4 OF 4(1204- )NHP130

Click highlighted areas on diagram

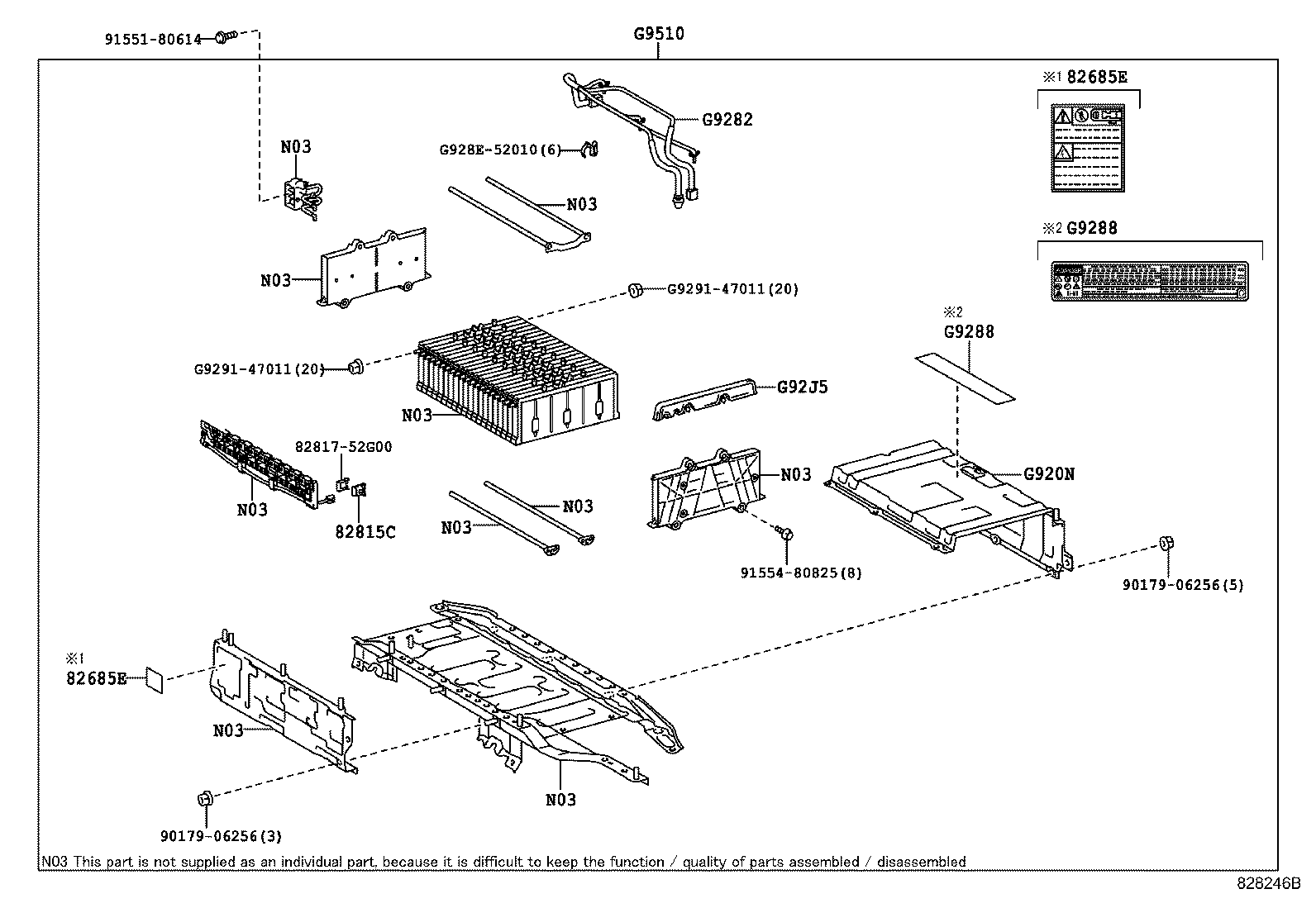

HV BATTERY

diagram 82685E 82685E 82815C 8281752G00 9017906256 9017906256 9155180614 9155480825 G920N G9282 G9288 G9288 G928E52010 G929147011 G929147011 G92J5 G9510
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-76010

NHP130

 1
82685E - PLATE, SERVICE PLUG CAUTION
82685-76010

NHP130

 1
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-52430

NHP130

 1
G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2
G920N-52010

NHP130

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-52010

NHP130

 1
G9288 - LABEL, BATTERY CHARGING NOTICE
G9288-48040

NHP130

 1
G9288 - LABEL, BATTERY CHARGING NOTICE
G9288-48040

NHP130

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-52010

NHP130

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-52031

NHP130

 1
G9510-52030

NHP130

 1
Common parts
82817-52G00
90179-06256
91551-80614
91554-80825
G928E-52010
G9291-47011
