NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)

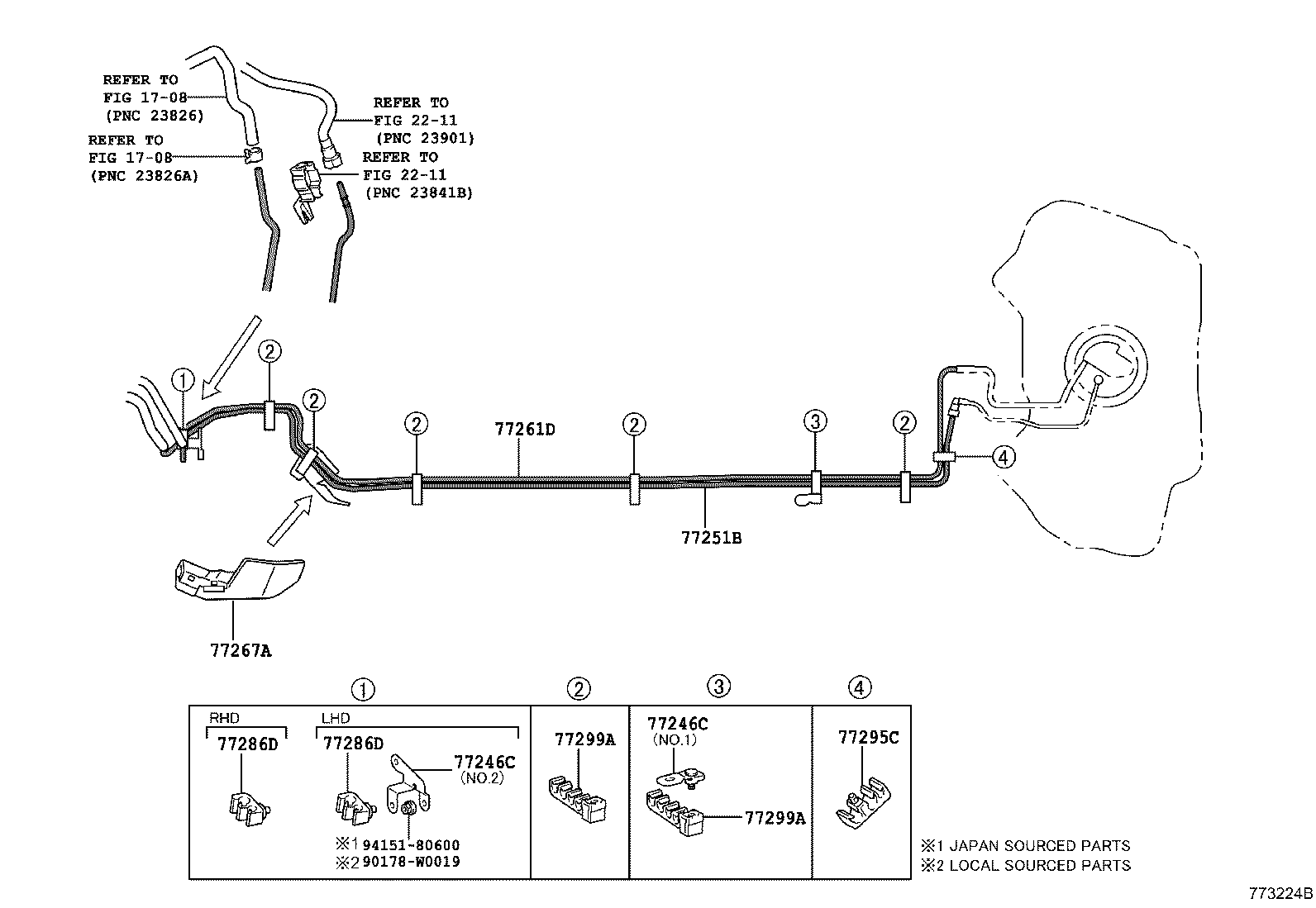

ILLUST NO. 2 OF 3(1204- )NHP130
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-52020 |
NHP130 NO.1 |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-52020 |
NHP130 NO.1 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D310 |
NHP130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0D250 |
NHP130 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-52060 |
NHP130 |
1 | ||
| 77267-52061 |
NHP130 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20190 |
NHP130 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20190 |
NHP130 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-42061 |
NHP130 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52050 |
NHP130 |
6 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52050 |
NHP130 |
6 | ||
| Common parts | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

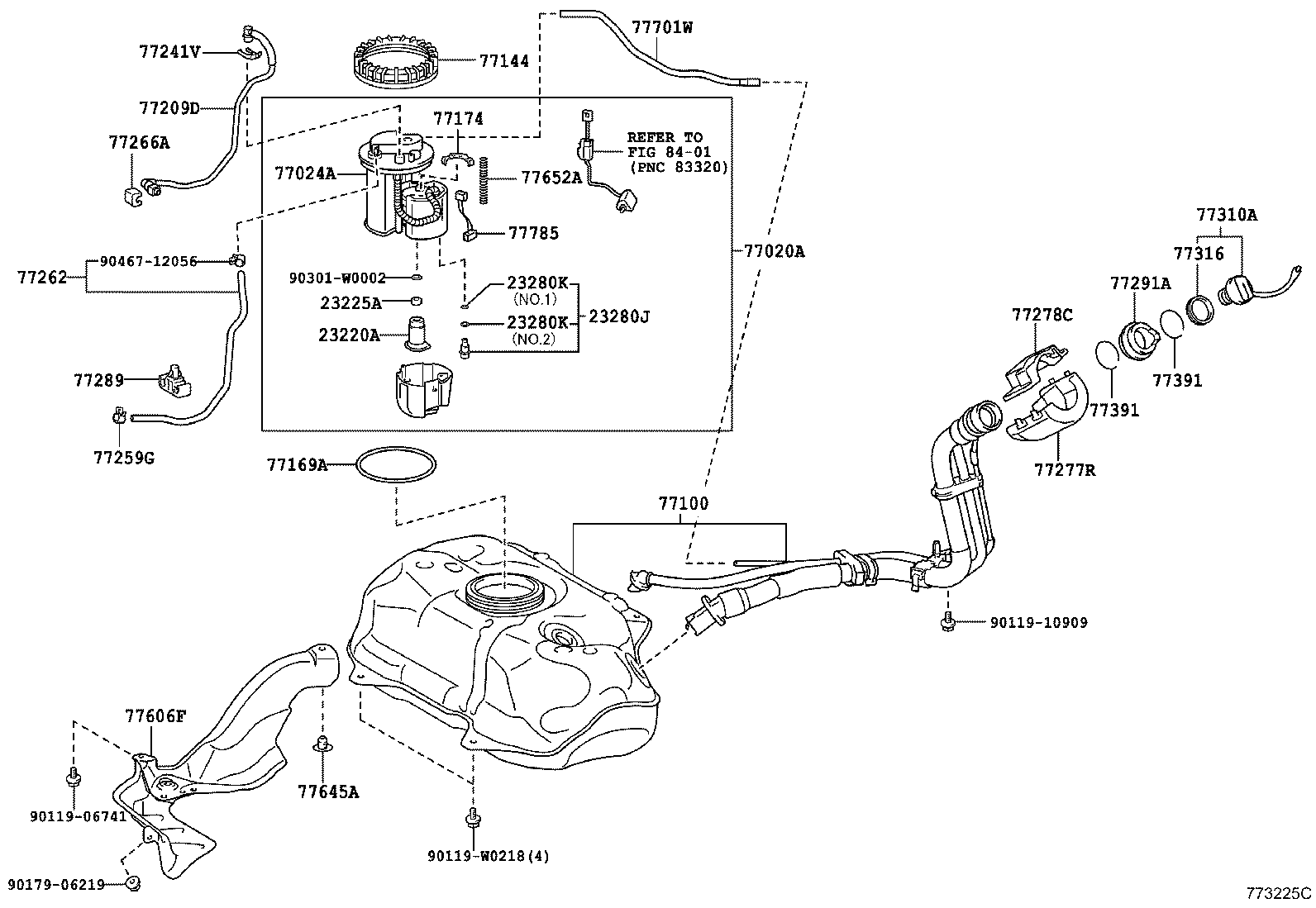

ILLUST NO. 1 OF 3(1204- )NHP130
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0Q041 |
1NZFXE..NHP130 |
1 | ||
| 23220-0Q040 |
1NZFXE..NHP130 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
1KRFE,1NZFXE,1NRFE..KSP130,NHP130,NSP130 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFXE..NHP130 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE..NHP130 NO.1 |
1 | ||
| 90301-15024 |
1NZFXE..NHP130 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE..NHP130 NO.1 |
1 | ||
| 90301-15024 |
1NZFXE..NHP130 NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D160 |
NHP130 |
1 | ||
| 77020-0D161 |
NHP130 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0D120 |
NHP130 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D200 |
NHP130 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0D050 |
NHP130 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D120 |
NHP130 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-32060 |
KSP130,NHP130,NSP130 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-13004 |
KSP130,NHP130,NSP130 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77028-0D110 |
NHP130 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52110 |
NHP130 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52090 |
NHP130 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-12070 |
NHP130 |
1 | ||
| 77278-52040 |
NHP130 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52130 |
NHP130 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D130 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
KSP130,NHP130,NSP130 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-0D070 |
NHP130 |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-52040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 77645-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-0D040 |
NHP130 |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D070 |
NHP130 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0D080 |
NHP130 |
1 | ||
| 77785-0D030 |
NHP130 |
1 | ||
| Common parts | ||||
| 90119-06741 | ||||
| 90119-10909 | ||||
| 90119-W0218 | ||||
| 90179-06219 | ||||
| 90301-W0002 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
