NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
(1204- )NHP130

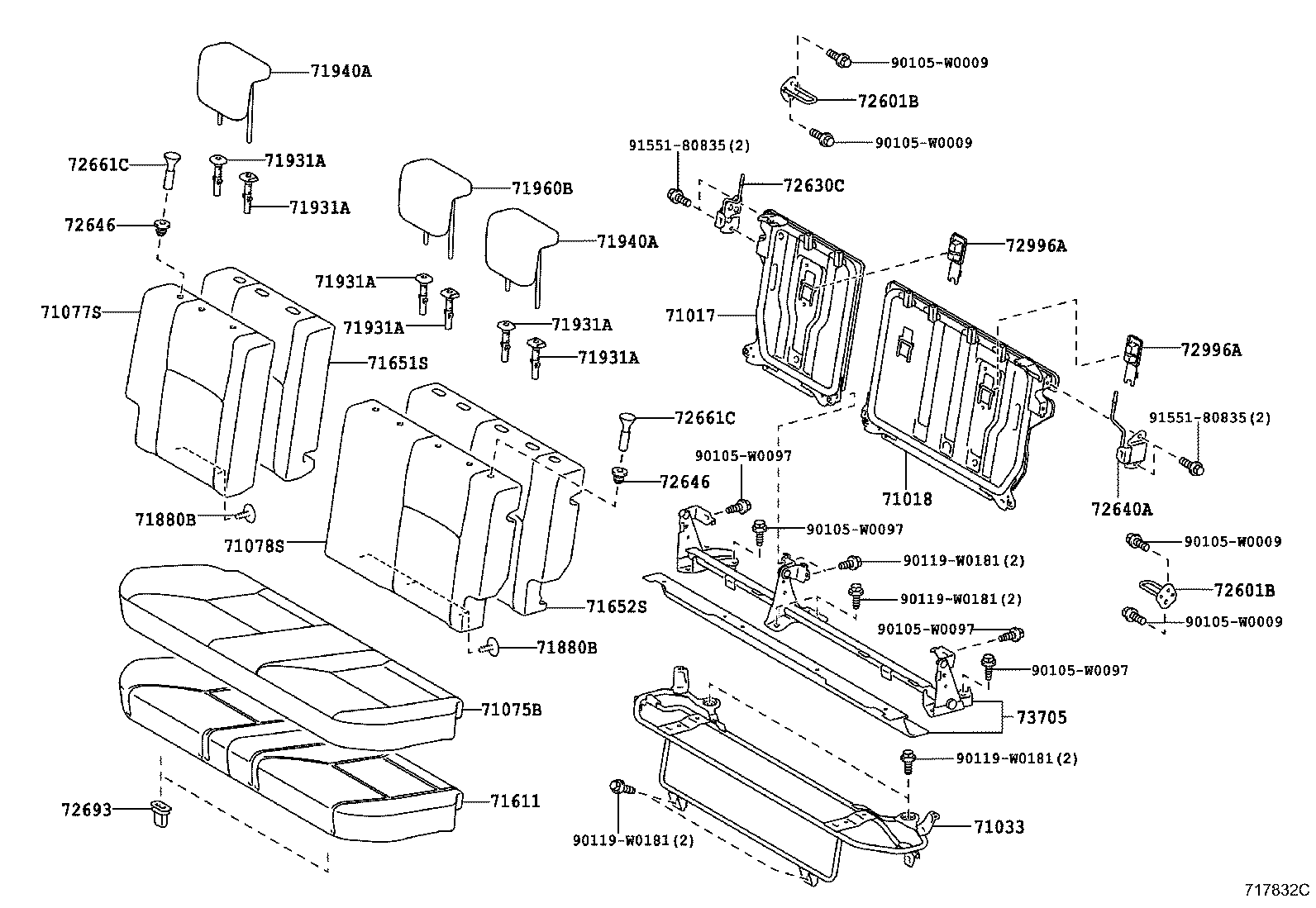

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0D250 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71017-0D251 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0D101 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71018-0D100 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-0D101 |
NHP130 |
1 | ||
| 71033-0D100 |
NHP130 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0DA10C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71075-0DA00C2 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-0DA02C2 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-0DA02C2 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-0DA00C2 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-0DA12C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0DA90C0 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71077-0DB20C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71077-0DA90C0 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71077-0DA91C0 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71077-0DB21C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71077-0DA91C0 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0D420C0 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-0D450C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71078-0D420C0 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-0D421C0 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-0D421C0 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-0D451C1 |
NHP130..ACTIV BLACK,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0D210 |
NHP130 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0D220 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0D140 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-05161C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-05161C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
5 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71930-44020C0 |
KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D660C0 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-0D660C2 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D660C0 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-0D660C2 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D150C2 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 71960-0D150C0 |
NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-0D030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72630-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72630-52170 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72640-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72640-52170 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-0D021C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-0D020C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-0D021C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-0D020C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-0D041C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0D040C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-0D041C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0D010C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0D010C0 |
KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73075-0D020 |
NHP130 |
1 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| 90105-W0097 | ||||
| 90119-W0181 | ||||
| 91551-80835 | ||||
