NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130

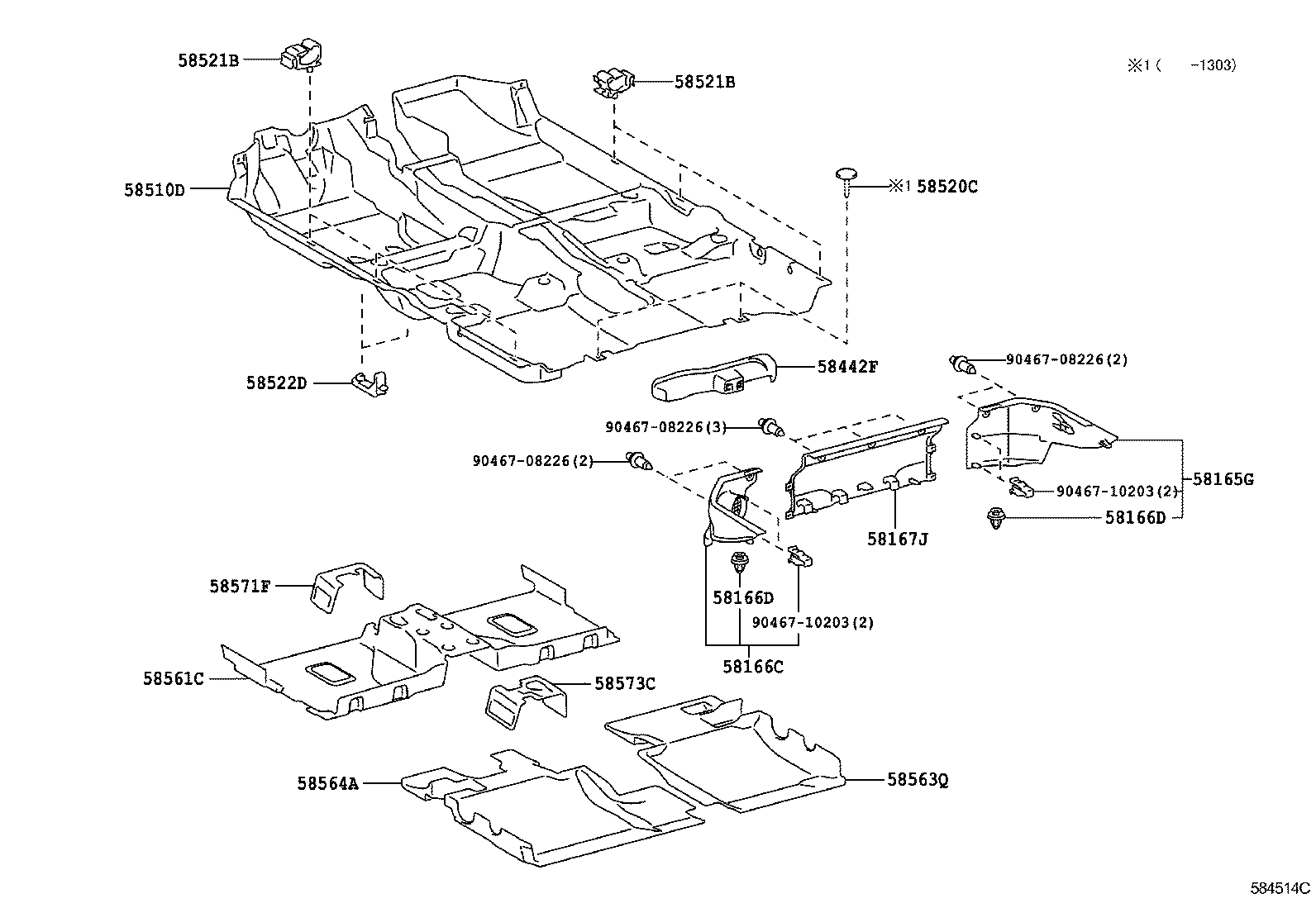

Click highlighted areas on diagram

diagram 58165G 58166C 58166D 58166D 58167J 58442F 58510D 58520C 58521B 58521B 58522D 58561C 58563Q 58564A 58571F 58573C 9046708226 9046708226 9046708226 9046710203 9046710203
Part # Description Qty Price
58165G - COVER, FRONT FLOOR, RH
58165-0D050C0

NHP130

BLACK,TRIM1#

 1
58165-0D060C0

NHP130

BLACK,TRIM1#

 1
58166C - COVER, FRONT FLOOR, LH
58166-0D050C0

NHP130

BLACK,TRIM1#

 1
58166-0D040C0

NHP130

BLACK,TRIM1#

 1
58166D - CLIP, FLOOR COVER
90467-10161

NHP130

 2
58166D - CLIP, FLOOR COVER
90467-10161

NHP130

 2
58167J - COVER, FRONT FLOOR, CENTER
58167-0D010C0

NHP130

BLACK,TRIM1#

 1
58167-0D020C0

NHP130

BLACK,TRIM1#

 1
58442F - COVER, JACK
58442-0D090

NHP130..ACTIV

HV SIMPLE PACKAGE

 1
58442-0D090

KSP130,NHP130,NLP130,NSP130

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0DA60C0

NHP130..RHD

BLACK,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

NHP130

BLACK,TRIM1#

 2
58521B - HOOK, FLOOR CARPET
58521-0D060

KSP130,NHP130,NLP130,NSP130..5D

 6
58521B - HOOK, FLOOR CARPET
58521-0D060

KSP130,NHP130,NLP130,NSP130..5D

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

KSP130,NHP130,NLP130,NSP130

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D170

KSP130,NHP130,NLP130,NSP130

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-0D180

NHP130

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-0D150

NHP130

 1
58571F - PAD, FRONT FLOOR, FRONT
58571-0D030

NHP130..ACTIV

HV SIMPLE PACKAGE

 1
58571-0D030

KSP130,NHP130,NLP130,NSP130

 1
58573C - PAD, FRONT FLOOR CENTER
58573-0D010

KSP130,NHP130,NLP130,NSP130

 1
58573-0D010

NHP130..ACTIV

HV SIMPLE PACKAGE

 1
Common parts
90467-08226
90467-10203
