NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130

Click highlighted areas on diagram

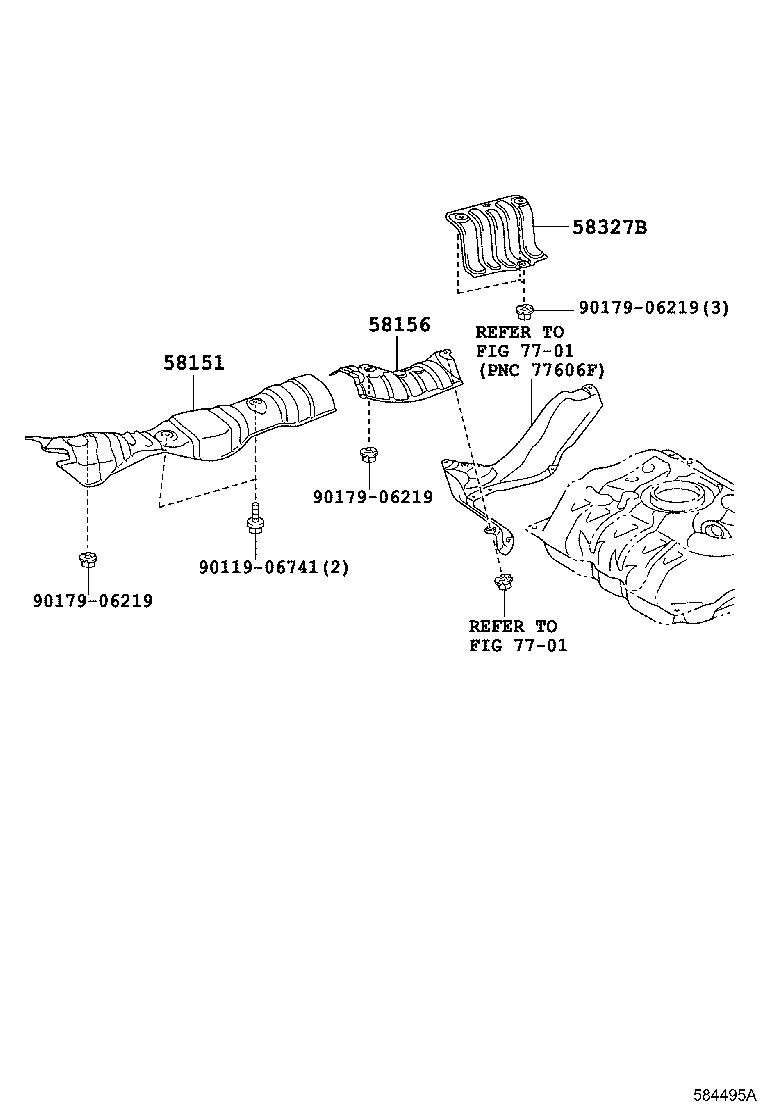

diagram 58151 58156 58327B 7701 7701 9011906741 9017906219 9017906219 9017906219
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0D100

NHP130

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-0D010

KSP130,NHP130,NSP130

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0D050

KSP130,NHP130

 1
Common parts
90119-06741
90179-06219
Linked diagrams
7701
