NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130..RHD

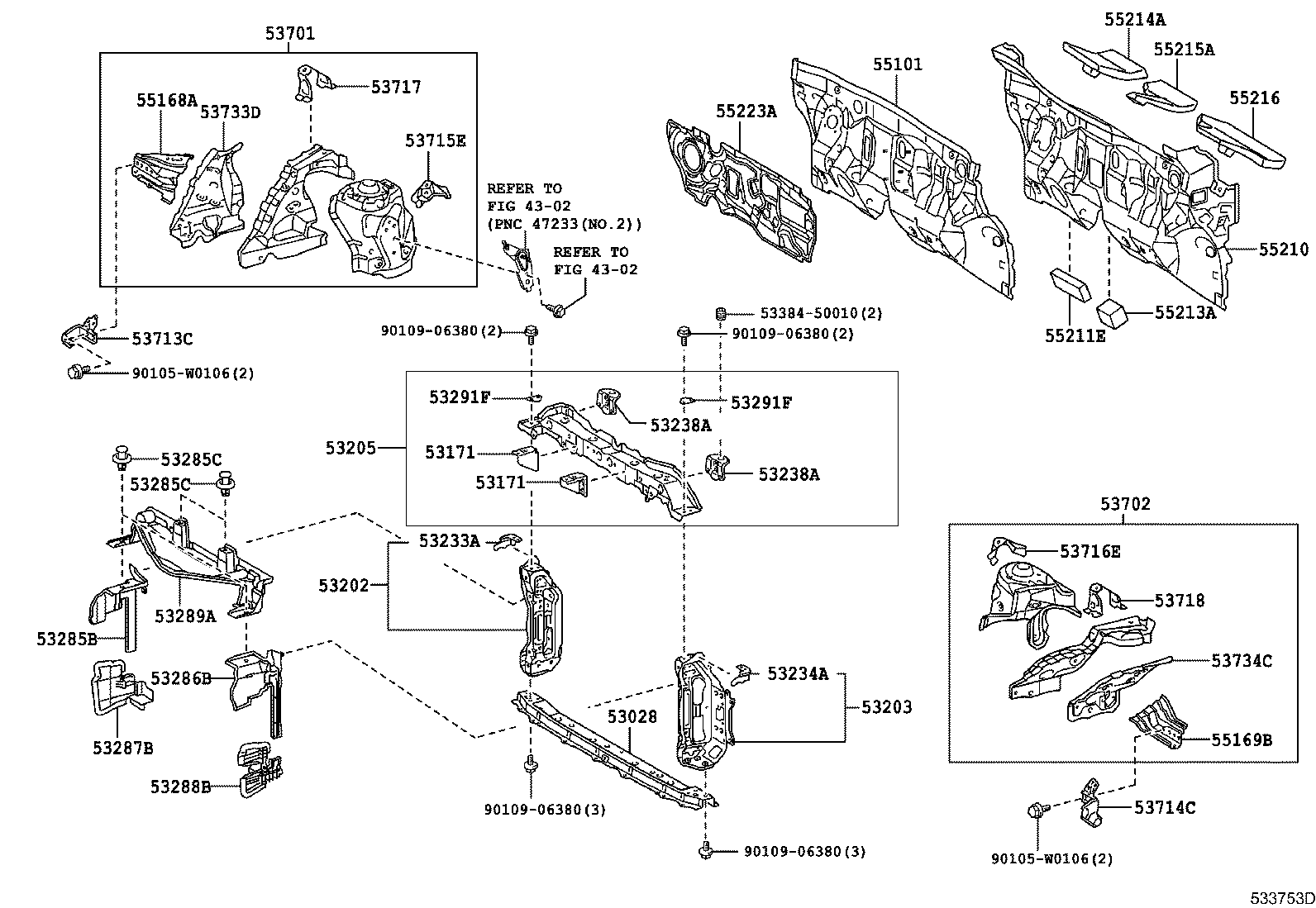

Click highlighted areas on diagram

diagram 4302 4302 53028 53171 53171 53202 53203 53205 53233A 53234A 53238A 53238A 53285B 53285C 53285C 53286B 53287B 53288B 53289A 53291F 53291F 5338450010 53701 53702 53713C 53714C 53715E 53716E 53717 53718 53733D 53734C 55101 55168A 55169B 55210 55211E 55213A 55214A 55215A 55216 55223A 90105W0106 90105W0106 9010906380 9010906380 9010906380 9010906380
Part # Description Qty Price
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-0D031

KSP130,NHP130,NLP130,NSP130

 1
53171 - RETAINER, RADIATOR SUPPORT
53171-0D050

KSP130,NHP130,NLP130,NSP130

LH

 1
53171-0D040

KSP130,NHP130,NLP130,NSP130

RH

 1
53171 - RETAINER, RADIATOR SUPPORT
53171-0D050

KSP130,NHP130,NLP130,NSP130

LH

 1
53171-0D040

KSP130,NHP130,NLP130,NSP130

RH

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0D906

KSP130,NHP130,NLP130,NSP130

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0D906

KSP130,NHP130,NLP130,NSP130

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0D904

KSP130,NHP130,NLP130,NSP130

 1
53233A - BRACKET, HEADLAMP, NO.1 RH
53233-0D050

KSP130,NHP130,NLP130,NSP130

 1
53234A - BRACKET, HEADLAMP, NO.1 LH
53234-0D050

KSP130,NHP130,NLP130,NSP130

 1
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-0D050

KSP130,NHP130,NLP130,NSP130

 2
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-0D050

KSP130,NHP130,NLP130,NSP130

 2
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-0D150

NHP130

 1
53285C - CLIP(FOR RADIATOR SIDE AIR SEAL)
90467-W0014C0

NHP130

BLACK

 4
53285C - CLIP(FOR RADIATOR SIDE AIR SEAL)
90467-W0014C0

NHP130

BLACK

 4
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-0D140

NHP130

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-0D100

NHP130

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-0D090

NHP130

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-0D070

NHP130

 1
53291F - PLATE, RADIATOR SUPPORT
53291-0D010

KSP130,NHP130,NLP130,NSP130

 2
53291F - PLATE, RADIATOR SUPPORT
53291-0D010

KSP130,NHP130,NLP130,NSP130

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0D130

KSP130,NHP130,NLP130,NSP130

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0D120

KSP130,NHP130,NLP130,NSP130

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-0D040

KSP130,NHP130,NLP130,NSP130

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-0D040

KSP130,NHP130,NLP130,NSP130

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-52030

KSP130,NHP130,NLP130,NSP130

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-52030

KSP130,NHP130,NLP130,NSP130

 1
53717 - PLATE, FENDER APRON, RH
53717-0D040

KSP130,NHP130,NLP130,NSP130

 1
53718 - PLATE, FENDER APRON, LH
53718-0D040

KSP130,NHP130,NLP130,NSP130

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-0D010

KSP130,NHP130,NLP130,NSP130

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-0D010

KSP130,NHP130,NLP130,NSP130

 1
55101 - PANEL SUB-ASSY, DASH
55101-0D280

NHP130..RHD

 1
55168A - BRACKET, FRONT FENDER MOUNTING, RH
55168-0D040

KSP130,NHP130,NLP130,NSP130

 1
55169B - BRACKET, FRONT FENDER MOUNTING, LH
55169-0D040

KSP130,NHP130,NLP130,NSP130

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0D300

NHP130..RHD..ACTIV

HV SIMPLE PACKAGE

 1
55210-0D320

NHP130,NLP130..RHD

 1
55211E - SILENCER, FRONT PANEL
55211-0D150

KSP130,NHP130,NLP130,NSP130

 1
55213A - PAD, DASH PANEL SILENCER
55213-0D110

KSP130,NHP130,NLP130,NSP130

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0D140

KSP130,NHP130,NLP130,NSP130..RHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-0D040

KSP130,NHP130,NLP130,NSP130..RHD

 1
55216 - PAD, DASH PANEL INSULATOR, NO.4
55216-0D050

KSP130,NHP130,NLP130,NSP130..RHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-0D181

NHP130,NLP130..RHD;KSP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)

 1
55223-0D181

NHP130..RHD..ACTIV

HV SIMPLE PACKAGE

 1
Common parts
53384-50010
90105-W0106
90109-06380
Linked diagrams
4302
