NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130

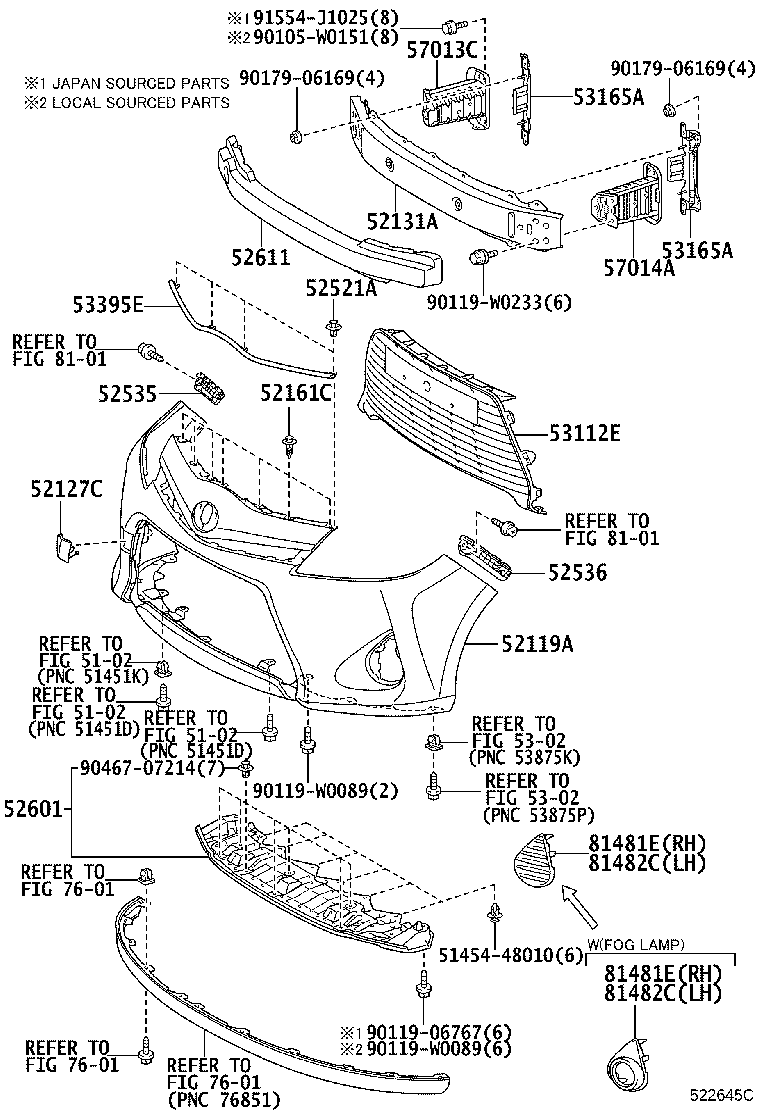

Click highlighted areas on diagram

diagram 5102 5102 5102 5145448010 52119A 52127C 52131A 52161C 52521A 52535 52536 52601 52611 5302 5302 53112E 53165A 53165A 53395E 57013C 57014A 7601 7601 7601 8101 8101 81481E 81481E 81482C 81482C 90105W0151 9011906767 90119W0089 90119W0089 90119W0233 9017906169 9017906169 9046707214 91554J1025
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0U905

NHP130

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-0D916

NHP130

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-0D050

KSP130,NHP130,NLP130,NSP130

 1
52161C - PIECE, FRONT BUMPER
52161-02030

KSP130,NHP130,NLP130,NSP130

 7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

KSP130,NHP130,NLP130,NSP130

BLACK

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D090

KSP130,NHP130,NLP130,NSP130

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D090

KSP130,NHP130,NLP130,NSP130

 1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-0D020

NHP130

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0D020

KSP130,NHP130,NLP130,NSP130

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D250

NHP130

NO PAINT REQ.

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D060

NHP130

 2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D060

NHP130

 2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0D010

KSP130,NHP130,NLP130,NSP130

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D040

NHP130

 1
57013-0D041

NHP130

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D030

NHP130

 1
81481E - COVER, FOG LAMP, RH
81481-0D190

NHP130..ACTIV

 1
52030-0D020

NHP130..ACTIV

FRONT FOG & DRIVING LAMP-WITH

 1
81481E - COVER, FOG LAMP, RH
81481-0D190

NHP130..ACTIV

 1
52030-0D020

NHP130..ACTIV

FRONT FOG & DRIVING LAMP-WITH

 1
81482C - COVER, FOG LAMP, LH
81482-0D200

NHP130..ACTIV

 1
52040-0D020

NHP130..ACTIV

FRONT FOG & DRIVING LAMP-WITH

 1
81482C - COVER, FOG LAMP, LH
81482-0D200

NHP130..ACTIV

 1
52040-0D020

NHP130..ACTIV

FRONT FOG & DRIVING LAMP-WITH

 1
Common parts
51454-48010
90105-W0151
90119-06767
90119-W0089
90119-W0233
90179-06169
90467-07214
91554-J1025
Linked diagrams
5102
5302
7601
8101
