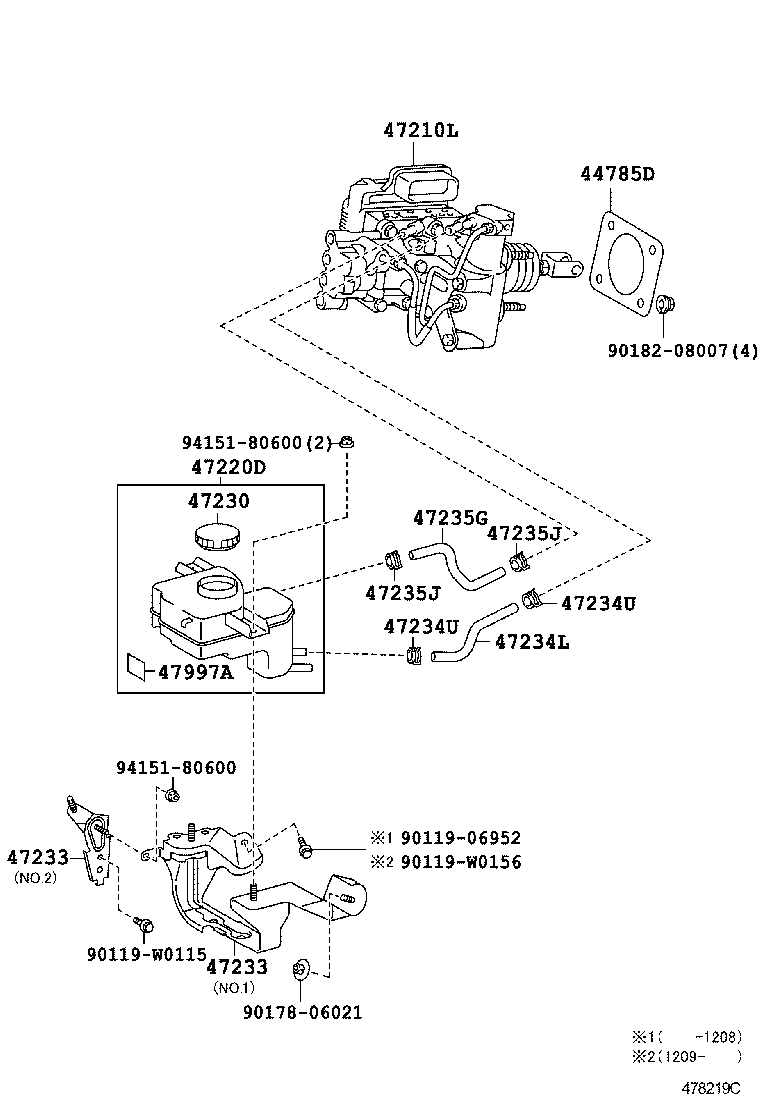

Toyota Yaris/hybrid (frp) NHP130 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
44785D - GASKET, BRAKE MASTER CYLINDER
44785-16020	NHP130	04/2012 - 12/2999	1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-52100	NHP130..RHD TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM	04/2012 - 02/2013	1
47050-52100	NHP130..RHD TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK	04/2012 - 02/2013	1
47050-52170	NHP130..RHD TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK	02/2013 - 12/2999	1
47050-52170	NHP130..RHD TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM	02/2013 - 12/2999	1
47050-52090	NHP130..RHD	04/2012 - 02/2013	1
47050-52160	NHP130..RHD	02/2013 - 12/2999	1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-52310	NHP130..RHD	04/2012 - 07/2014	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58010	NHP130..RHD	04/2012 - 12/2999	1
47233 - BRACKET, RESERVOIR
47233-0D020	NHP130 NO.2	04/2012 - 07/2014	1
47233-0D031	NHP130..RHD NO.1	04/2012 - 07/2014	1
47233 - BRACKET, RESERVOIR
47233-0D020	NHP130 NO.2	04/2012 - 07/2014	1
47233-0D031	NHP130..RHD NO.1	04/2012 - 07/2014	1
47234L - HOSE, RESERVOIR, NO.1
47234-52050	NHP130..RHD	04/2012 - 12/2999	1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-51501	NHP130	04/2012 - 12/2999	2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-51501	NHP130	04/2012 - 12/2999	2
47235G - HOSE, RESERVOIR, NO.2
47235-52050	NHP130..RHD	04/2012 - 12/2999	1
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-51501	NHP130	04/2012 - 12/2999	2
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-51501	NHP130	04/2012 - 12/2999	2
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010	NHP130	04/2012 - 12/2999	1
Common parts
90119-06952
90119-W0115
90119-W0156
90178-06021
90182-08007
94151-80600

NHP130R-CHXNBW (2012)

(1204- )NHP130..RHD
