NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )NHP130..RHD

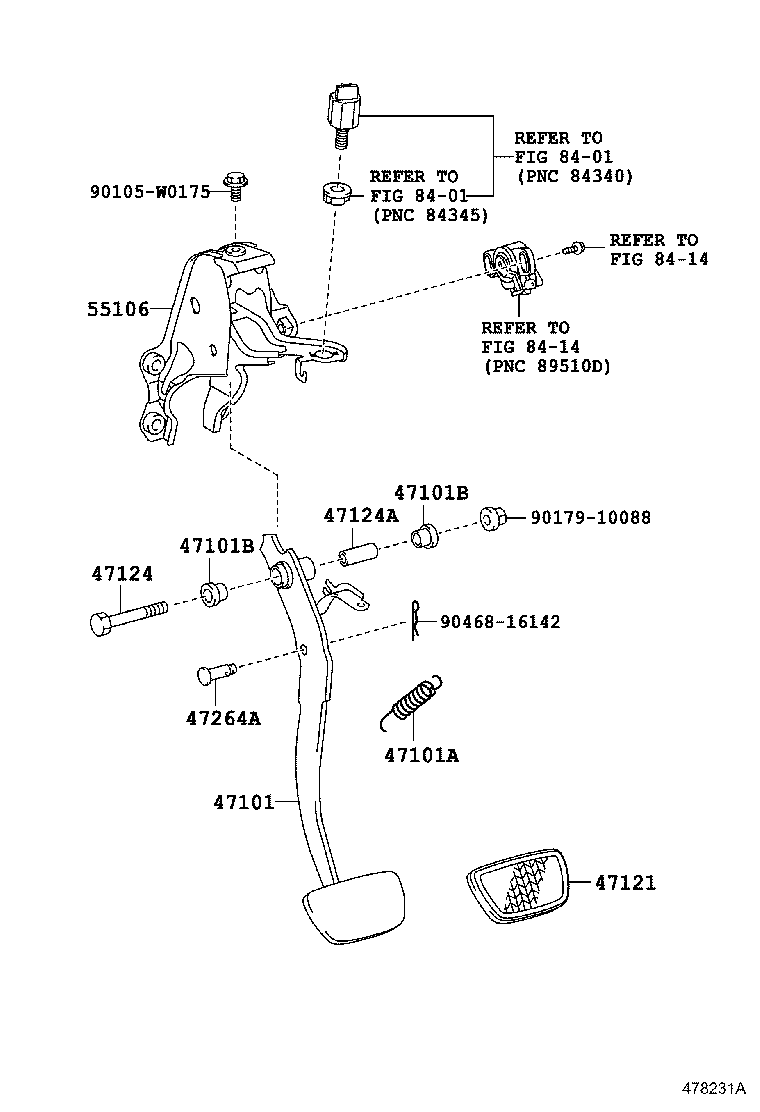

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47264A 55106 8401 8401 8414 8414 90105W0175 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-52330

NHP130..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077

KSP130,NHP130,NLP130,NSP130

 1
90506-14088

KSP130,NHP130,NLP130,NSP130

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KSP130,NHP130,NLP130,NSP130

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KSP130,NHP130,NLP130,NSP130

 2
47121 - PAD, BRAKE PEDAL
47121-52010

NHP130;NSP130..RHD..CVFC

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

NHP130..RHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

NHP130..RHD;KSP130,NLP130,NSP130

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NHP130;KSP130,NLP130,NSP130..RHD

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-52180

NHP130..RHD

 1
Common parts
90105-W0175
90179-10088
90468-16142
Linked diagrams
8401
8414
