NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
Production
Apr 2012
-
Jul 2014
Engine
1NZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )NHP130..RHD

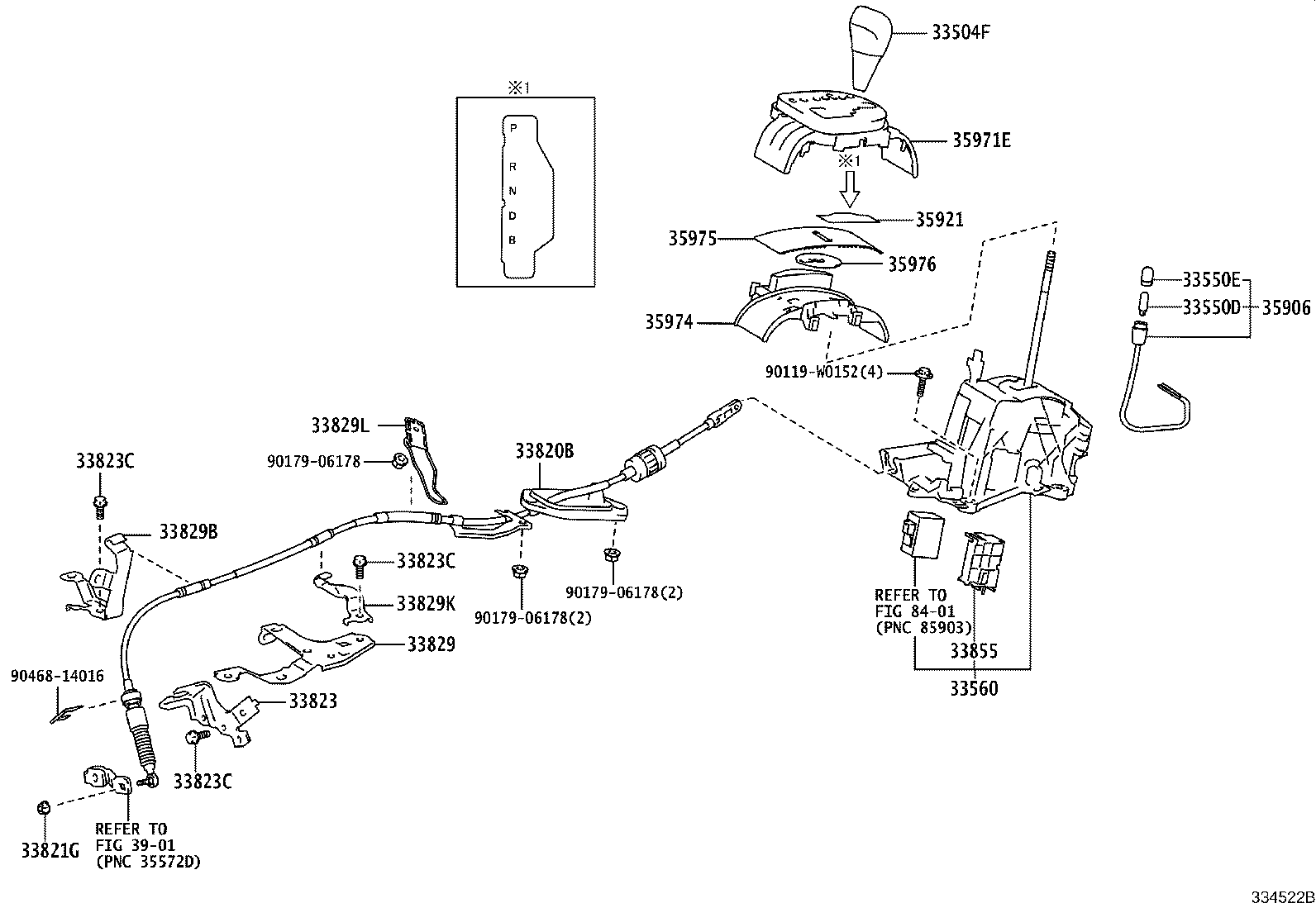

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52180C0 |
NHP130..ACTIV HV SIMPLE PACKAGE,BLACK,TRIM1# |
1 | ||
| 33504-52180C0 |
NHP130..ACTIV HV ENTRY PACKAGE,BLACK,TRIM1# |
1 | ||
| 33504-52360C0 |
NHP130 BLACK,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
NHP130,NSP130..CVFC 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52020 |
NHP130 |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-52580 |
NHP130..RHD |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52810 |
NHP130 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
NHP130,NSP130..CVFC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D070 |
NHP130 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-W0027 |
NHP130 |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-W0027 |
NHP130 |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-W0027 |
NHP130 |
6 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-0D090 |
NHP130 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-0D080 |
NHP130 |
1 | ||
| 33829K - CLAMP, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33829-0D100 |
NHP130 |
1 | ||
| 33829L - CLAMP, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33829-52151 |
NHP130 |
1 | ||
| 33855 - COVER, SHIFT LOCK UNIT | ||||
| 33855-52020 |
NHP130,NSP130..CVFC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52230 |
NHP130..RHD |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-52210 |
NHP130..RHD |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-52580 |
NHP130..RHD |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-52050 |
NHP130,NSP130..RHD..CVFC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52140 |
NHP130,NSP130..CVFC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-52140 |
NHP130,NSP130..CVFC |
1 | ||
| Common parts | ||||
| 90119-W0152 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8401 | ||||
