NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )1NZFXE

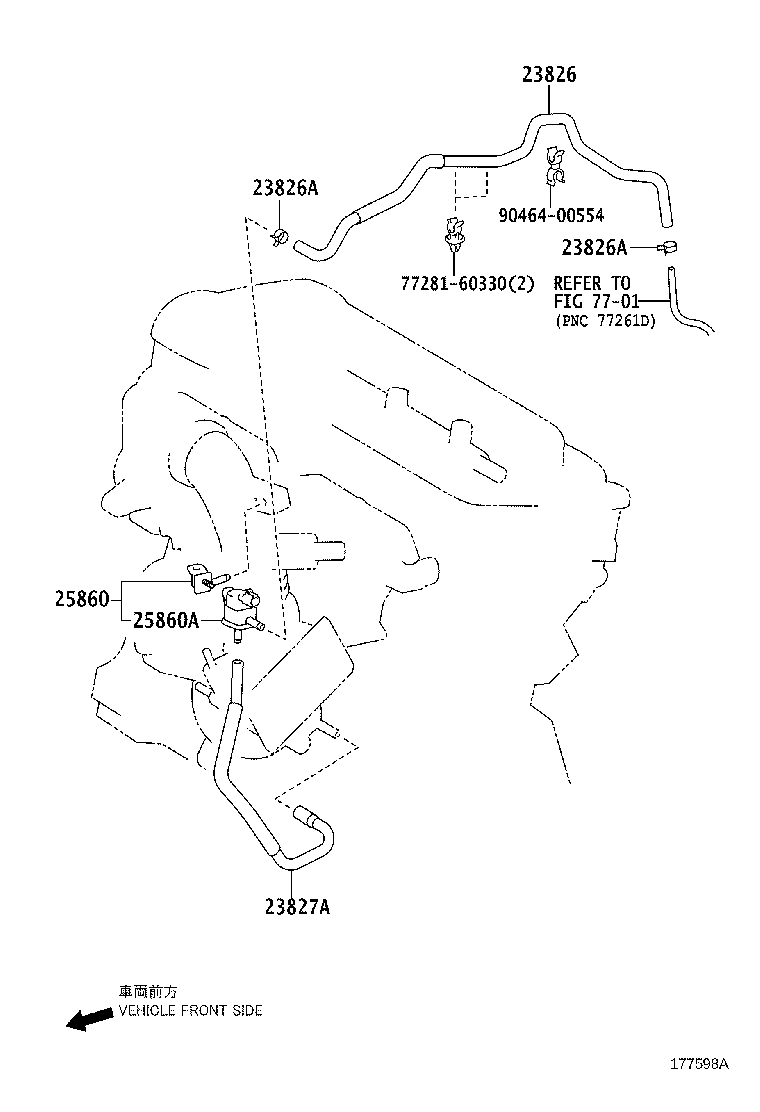

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23827A 25860 25860A 7701 7728160330 9046400554
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0M050

1NZFXE..NHP130

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NZFXE,1NRFE..NHP130,NSP130

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NZFXE,1NRFE..NHP130,NSP130

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0M050

1NZFXE..NHP130

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0M010

1NZFXE..NHP130

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-TC001

1NZFXE..NHP130

 1
Common parts
77281-60330
90464-00554
Linked diagrams
7701
