NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
Production
Apr 2012
-
Jul 2014
Engine
1NZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

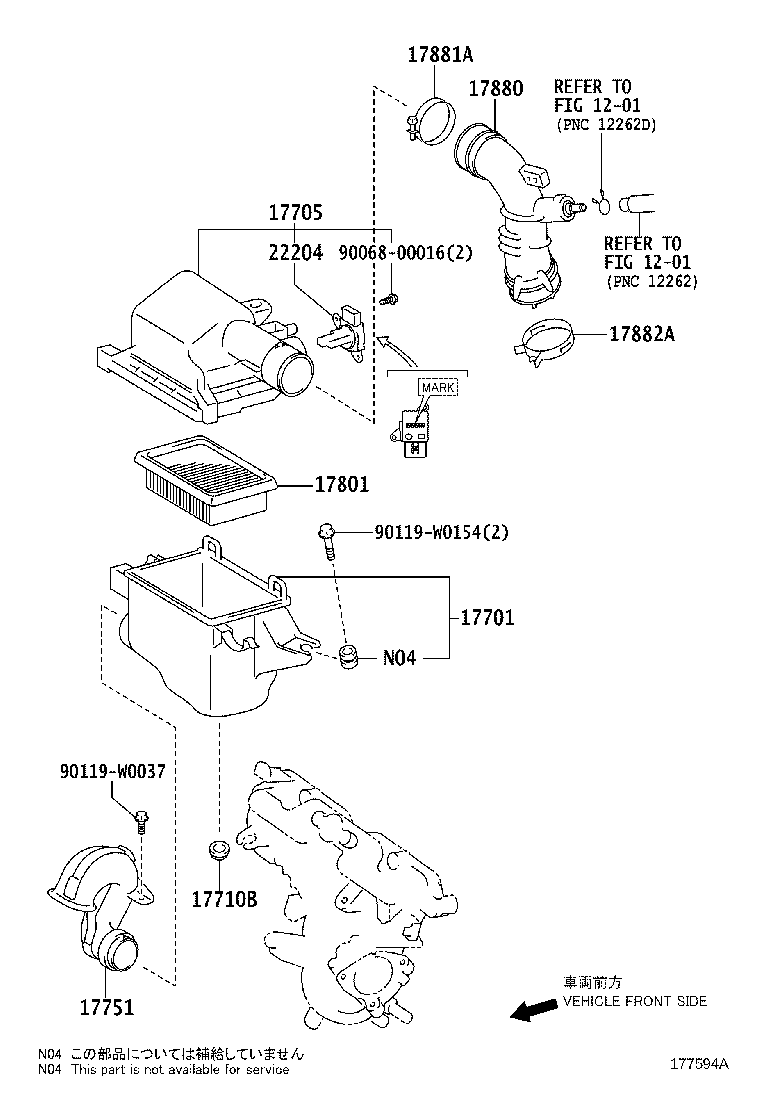

(1204- )1NZFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0M060 |
1NZFXE..NHP130 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0M080 |
1NZFXE..NHP130 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-15036 |
1NZFXE..NHP130 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0M060 |
1NZFXE..NHP130 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0M030 |
1NZFXE..NHP130 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-0M090 |
1NZFXE..NHP130 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10600 |
1NZFXE..NHP130 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-54002 |
1NZFXE,1NDTV..NHP130,NLP130 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0V010 |
1NZFXE,1NRFE..NHP130,NSP130 MARK 22204-0V010 |
1 | ||
| 22204-0V020 |
1NZFXE,1NRFE..NHP130,NSP130 MARK 22204-0V020 |
1 | ||
| Common parts | ||||
| 90068-00016 | ||||
| 90119-W0037 | ||||
| 90119-W0154 | ||||
| Linked diagrams | ||||
| 1201 | ||||
