NHP130R-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )1NZFXE

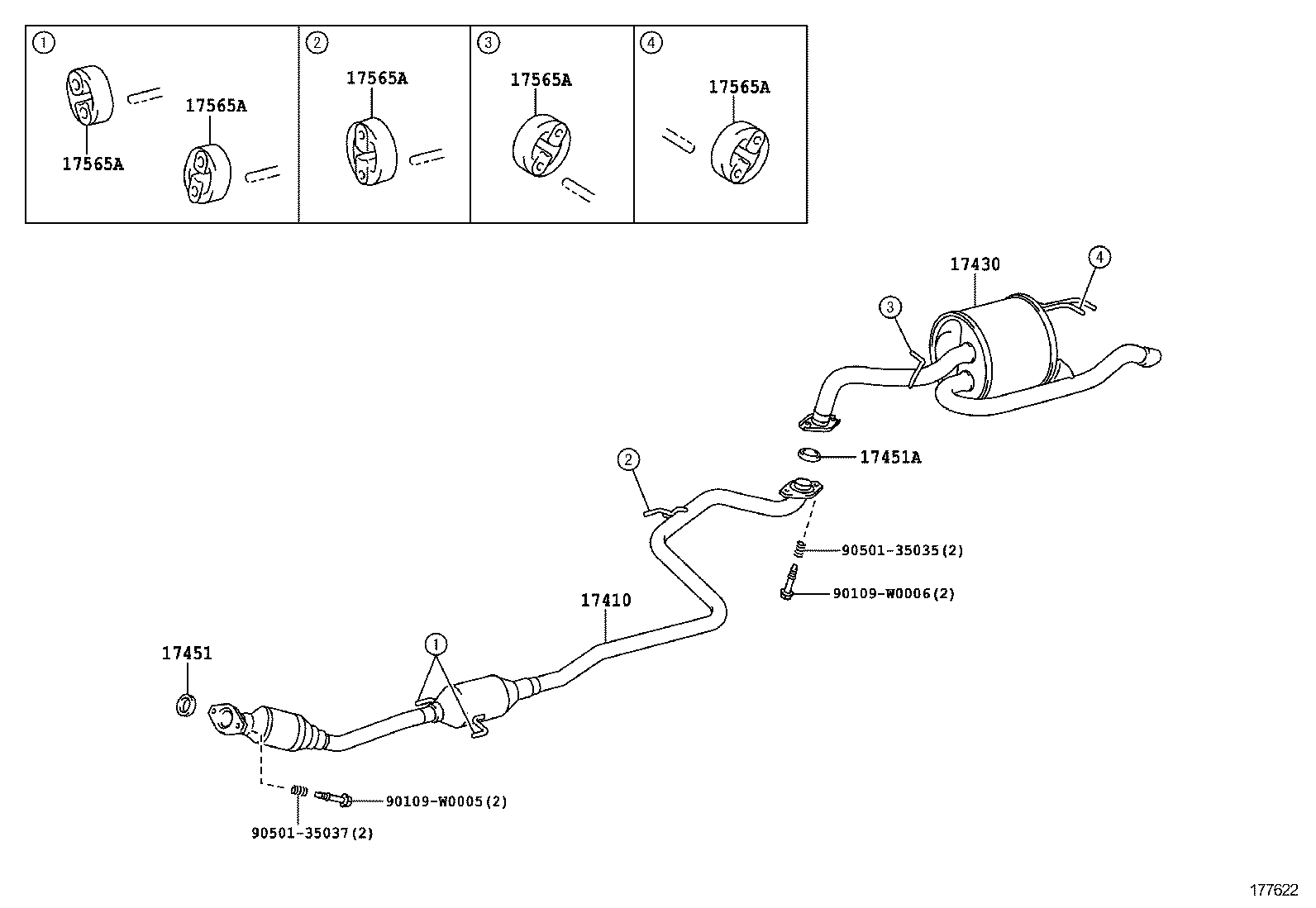

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 90109W0005 90109W0006 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0M180

1NZFXE..NHP130

*114=TOYOTA/FB1/Y

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0M120

1NZFXE..NHP130

 1
17451 - GASKET, EXHAUST PIPE
17451-0J030

1NZFXE,1NRFE..NHP130,NSP130

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0Q022

1KRFE,1NZFXE..KSP130,NHP130

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1KRFE,1NZFXE..KSP130,NHP130

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1KRFE,1NZFXE..KSP130,NHP130

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1KRFE,1NZFXE..KSP130,NHP130

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1KRFE,1NZFXE..KSP130,NHP130

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Q030

1KRFE,1NZFXE..KSP130,NHP130

 5
Common parts
90109-W0005
90109-W0006
90501-35035
90501-35037
