NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)

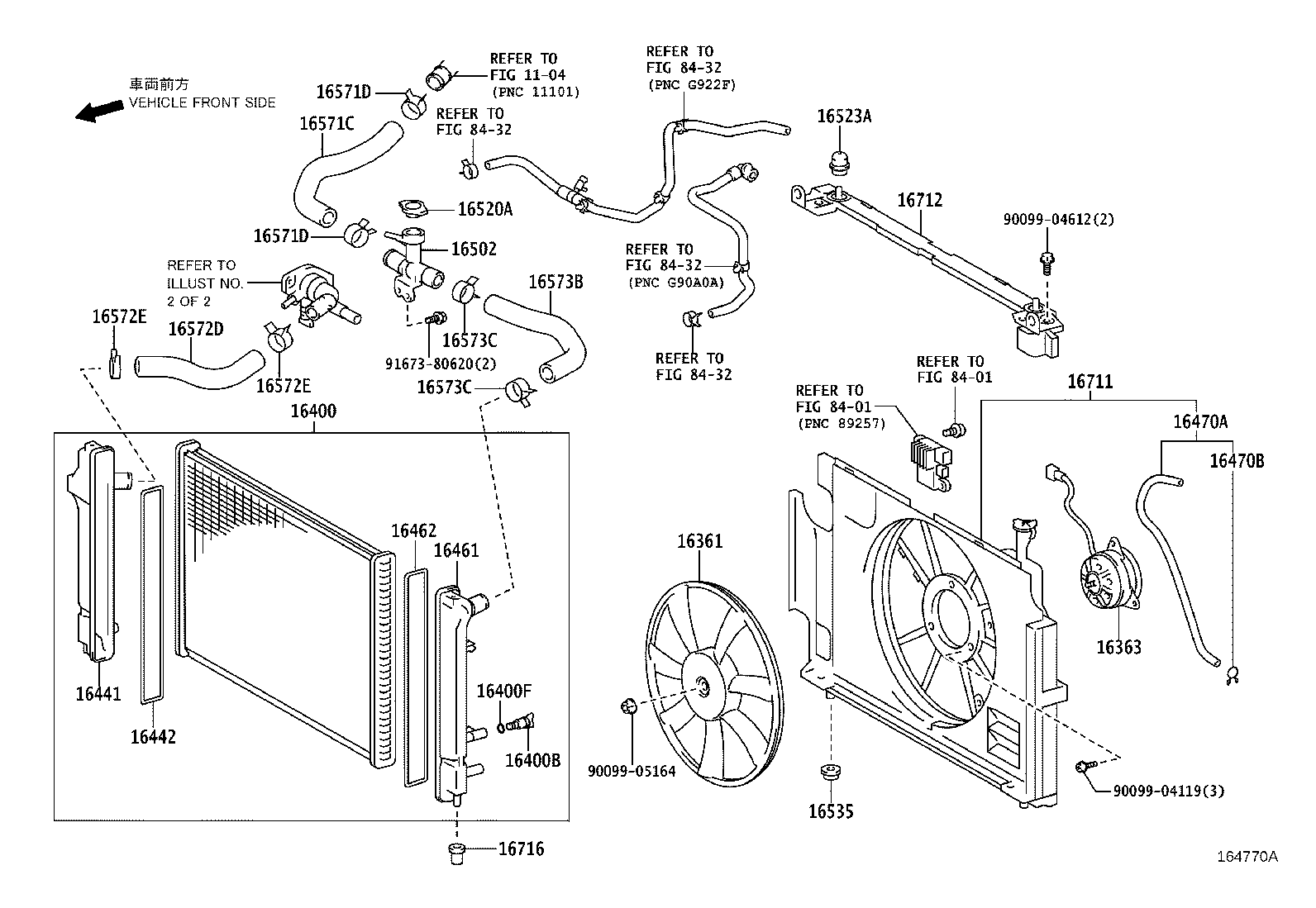

ILLUST NO. 1 OF 2(1204- )1NZFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M100 |
1NZFXE..NHP130 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0M060 |
1NZFXE..NHP130 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21330 |
1NZFXE..NHP130 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1NZFXE..NHP130 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#..NHP130,NLP130,NSP130 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-21330 |
1NZFXE..NHP130 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-21330 |
1NZFXE..NHP130 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-21330 |
1NZFXE..NHP130 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-21330 |
1NZFXE..NHP130 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16378-21180 |
1NZFXE..NHP130 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFXE,1NRFE..NHP130,NSP130 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-21090 |
1NZFXE..NHP130 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1NZFXE..NHP130 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Q020 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-W0005 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0M060 |
1NZFXE..NHP130 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-W0011 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-W0011 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0M080 |
1NZFXE..NHP130 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0011 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0011 |
1N#..NHP130,NLP130,NSP130 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0M060 |
1NZFXE..NHP130 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1NZFXE..NHP130 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1NZFXE..NHP130 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0M100 |
1NZFXE..NHP130 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0M030 |
1NZFXE..NHP130 |
1 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-37010 |
1NZFXE..NHP130 |
2 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||
| 8432 | ||||

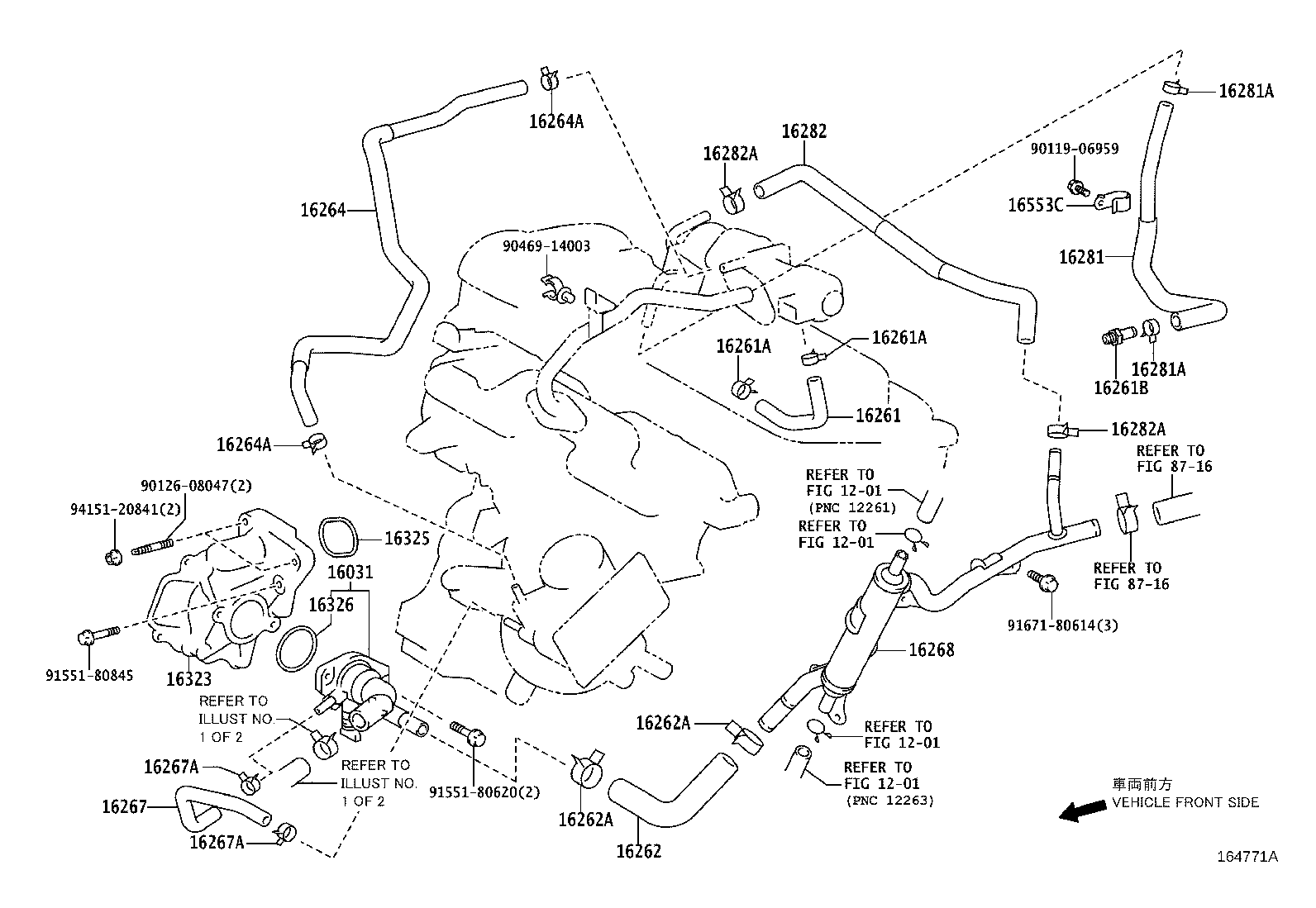

ILLUST NO. 2 OF 2(1204- )1NZFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-21010 |
1NZFXE..NHP130 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-21100 |
1NZFXE..NHP130 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NZFXE..NHP130 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NZFXE..NHP130 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52042 |
1NZFXE..NHP130 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-21060 |
1NZFXE..NHP130 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1NZFXE..NHP130 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1NZFXE..NHP130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21100 |
1NZFXE..NHP130 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFXE..NHP130 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFXE..NHP130 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-21050 |
1NZFXE..NHP130 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFXE,1NDTV..NHP130,NLP130 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFXE,1NDTV..NHP130,NLP130 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21101 |
1NZFXE..NHP130 |
1 | ||
| 16268-21100 |
1NZFXE..NHP130 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-21050 |
1NZFXE..NHP130 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41901 |
1NZFXE..NHP130 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41901 |
1NZFXE..NHP130 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-21030 |
1NZFXE..NHP130 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41901 |
1NZFXE..NHP130 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41901 |
1NZFXE..NHP130 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-21010 |
1NZFXE..NHP130 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-21010 |
1NZFXE..NHP130 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47010 |
1NZFXE,1NRFE..NHP130,NSP130 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-21130 |
1NZFXE..NHP130 |
1 | ||
| Common parts | ||||
| 90119-06959 | ||||
| 90126-08047 | ||||
| 90469-14003 | ||||
| 91551-80620 | ||||
| 91551-80845 | ||||
| 91671-80614 | ||||
| 94151-20841 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8716 | ||||
