NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
(1204- )1NZFXE

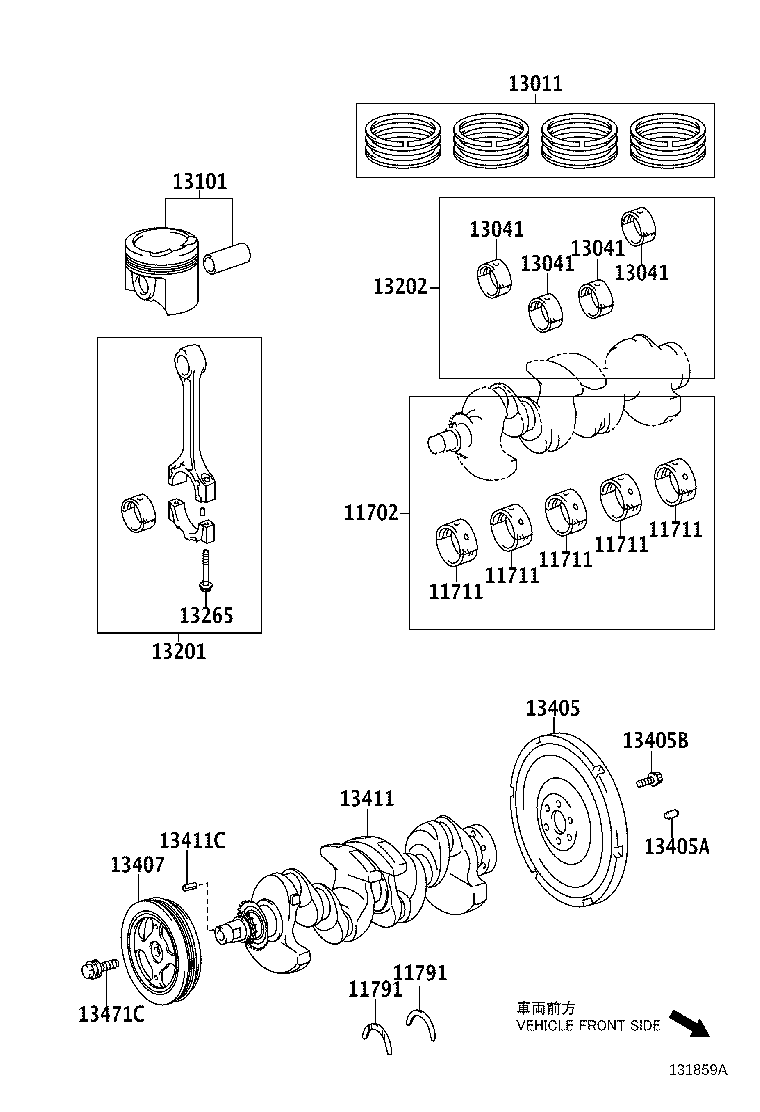

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-21031 |
1NZFXE..NHP130 U/S 0.25 |
1 | ||
| 11704-21032 |
1NZFXE..NHP130 U/S 0.25 |
1 | ||
| 11704-21033 |
1NZFXE..NHP130 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2103101 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103102 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103201 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103104 |
1NZFXE..NHP130 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103203 |
1NZFXE..NHP130 MAKR 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103202 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103204 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103103 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103304 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2103101 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103102 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103201 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103104 |
1NZFXE..NHP130 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103203 |
1NZFXE..NHP130 MAKR 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103202 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103204 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103103 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103304 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2103101 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103102 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103201 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103104 |
1NZFXE..NHP130 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103203 |
1NZFXE..NHP130 MAKR 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103202 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103204 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103103 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103304 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2103101 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103102 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103201 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103104 |
1NZFXE..NHP130 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103203 |
1NZFXE..NHP130 MAKR 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103202 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103204 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103103 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103304 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2103101 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103102 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103201 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103104 |
1NZFXE..NHP130 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103203 |
1NZFXE..NHP130 MAKR 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103202 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103204 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103103 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-2103304 |
1NZFXE..NHP130 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1NZFXE..NHP130 STD |
2 | ||
| 11792-22020 |
1NZFXE..NHP130 O/S 0.125 |
2 | ||
| 11793-22020 |
1NZFXE..NHP130 O/S 0.25 |
2 | ||
| 11793-37010 |
1NZFXE..NHP130 O/S 0.25 |
2 | ||
| 11792-37010 |
1NZFXE..NHP130 O/S 0.125 |
2 | ||
| 11791-37010 |
1NZFXE..NHP130 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1NZFXE..NHP130 STD |
2 | ||
| 11792-22020 |
1NZFXE..NHP130 O/S 0.125 |
2 | ||
| 11793-22020 |
1NZFXE..NHP130 O/S 0.25 |
2 | ||
| 11793-37010 |
1NZFXE..NHP130 O/S 0.25 |
2 | ||
| 11792-37010 |
1NZFXE..NHP130 O/S 0.125 |
2 | ||
| 11791-37010 |
1NZFXE..NHP130 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-21111 |
1NZFXE..NHP130 STD |
1 | ||
| 13011-21110 |
1NZFXE..NHP130 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2102201 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-2102202 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-2102203 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2102201 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-2102202 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-2102203 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2102201 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-2102202 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-2102203 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2102201 |
1NZFXE..NHP130 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-2102202 |
1NZFXE..NHP130 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-2102203 |
1NZFXE..NHP130 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-2103302 |
1NZFXE..NHP130 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2103301 |
1NZFXE..NHP130 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-2103303 |
1NZFXE..NHP130 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-21130 |
1NZFXE..NHP130 STD |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-29735 |
1NZFXE..NHP130 |
4 | ||
| 13201-29736 |
1NZFXE..NHP130 |
4 | ||
| 13201-29737 |
1NZFXE..NHP130 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-21022 |
1NZFXE..NHP130 U/S 0.25 |
1 | ||
| 13204-21033 |
1NZFXE..NHP130 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1N#..NHP130,NLP130,NSP130 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13451-21081 |
1NZFXE..NHP130 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1NRFE..NSP130..6F;1NZFXE,1NDTV..NHP130,NLP130 L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10048 |
1NZFXE..NHP130 |
6 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-21070 |
1NZFXE..NHP130 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-21020 |
1NZFXE..NHP130 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90254-03025 |
1NZFXE..NHP130 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12345 |
1NZFXE,1NRFE..NHP130,NSP130 |
1 | ||
