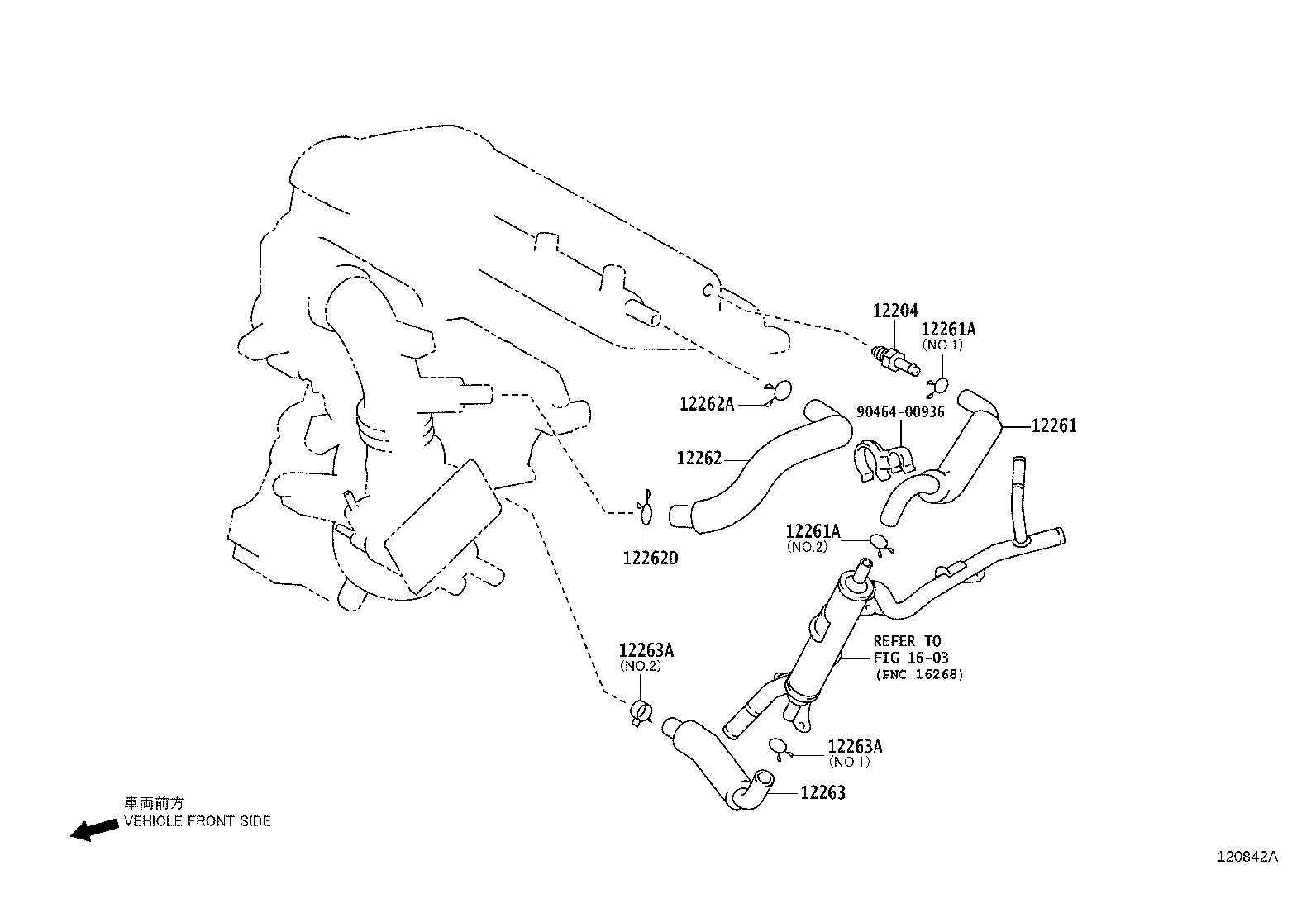

Toyota Yaris/hybrid (frp) NHP130 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-21012	1NZFXE..NHP130	04/2012 - 04/2013	1
12204-21013	1NZFXE..NHP130	04/2013 - 07/2014	1
12261 - HOSE, VENTILATION
12261-21101	1NZFXE..NHP130	04/2012 - 07/2014	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120	1NZFXE..NHP130 NO.2	04/2012 - 07/2014	1
90466-17004	1NZFXE..NHP130 NO.1	04/2012 - 07/2014	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120	1NZFXE..NHP130 NO.2	04/2012 - 07/2014	1
90466-17004	1NZFXE..NHP130 NO.1	04/2012 - 07/2014	1
12262 - HOSE, VENTILATION, NO.2
12262-21110	1NZFXE..NHP130	04/2012 - 12/2999	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
16581-21050	1NZFXE..NHP130	04/2012 - 12/2999	1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004	1NZFXE..NHP130	04/2012 - 07/2014	1
12263 - HOSE, VENTILATION, NO.3
12263-21020	1NZFXE..NHP130	04/2012 - 12/2999	1
12263A - CLIP(FOR VENTILATION HOSE)
96137-41901	1NZFXE..NHP130 NO.2	04/2012 - 12/2999	1
90466-17004	1NZFXE..NHP130 NO.1	04/2012 - 12/2999	1
12263A - CLIP(FOR VENTILATION HOSE)
96137-41901	1NZFXE..NHP130 NO.2	04/2012 - 12/2999	1
90466-17004	1NZFXE..NHP130 NO.1	04/2012 - 12/2999	1
Common parts
90464-00936
Linked diagrams
1603

NHP130R-CHXNBW (2012)
