NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
Production
Apr 2012
-
Jul 2014
Engine
1NZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )1NZFXE

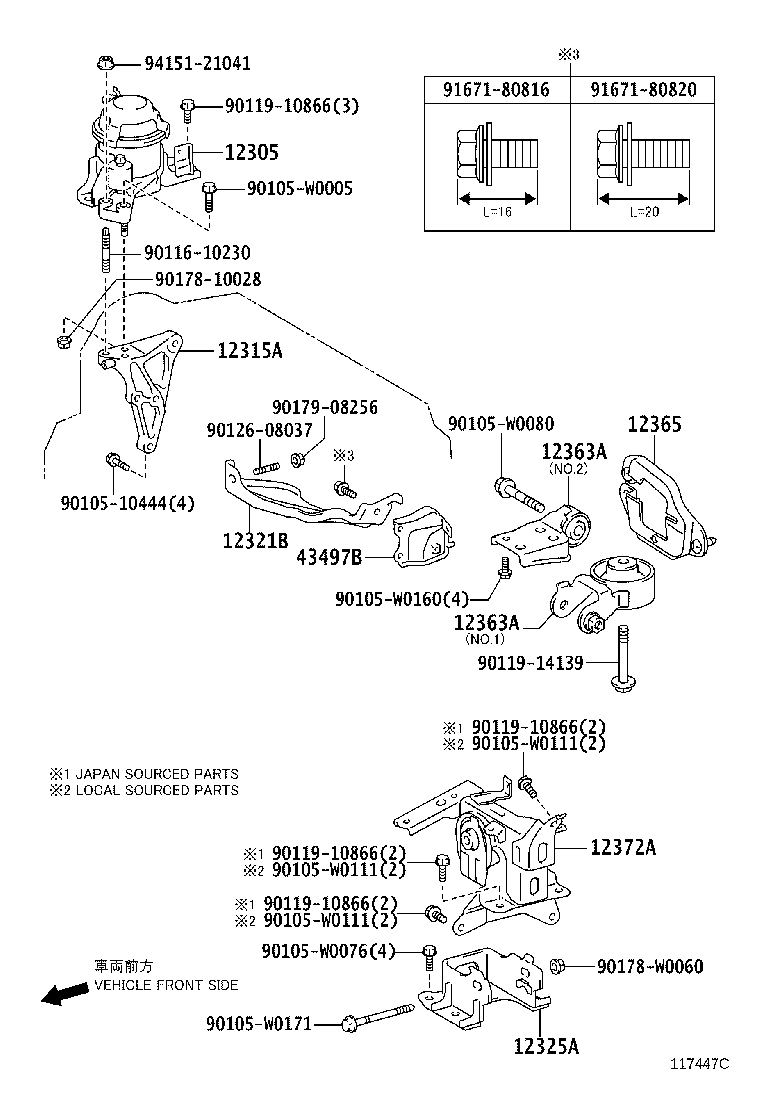

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0M100 |
1NZFXE..NHP130 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21060 |
1NZFXE..NHP130 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-52090 |
1NZFXE..NHP130 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0M130 |
1NZFXE..NHP130 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12364-0M050 |
1NZFXE..NHP130 NO.2 |
1 | ||
| 12363-0M070 |
1NZFXE..NHP130 NO.1 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12364-0M050 |
1NZFXE..NHP130 NO.2 |
1 | ||
| 12363-0M070 |
1NZFXE..NHP130 NO.1 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0M120 |
1NZFXE..NHP130 |
1 | ||
| 43497B - BRACKET, DRIVE SHAFT HEAT INSULATOR | ||||
| 43497-52050 |
NHP130 |
1 | ||
| Common parts | ||||
| 90105-10444 | ||||
| 90105-W0005 | ||||
| 90105-W0076 | ||||
| 90105-W0080 | ||||
| 90105-W0111 | ||||
| 90105-W0160 | ||||
| 90105-W0171 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90126-08037 | ||||
| 90178-10028 | ||||
| 90178-W0060 | ||||
| 90179-08256 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 94151-21041 | ||||
