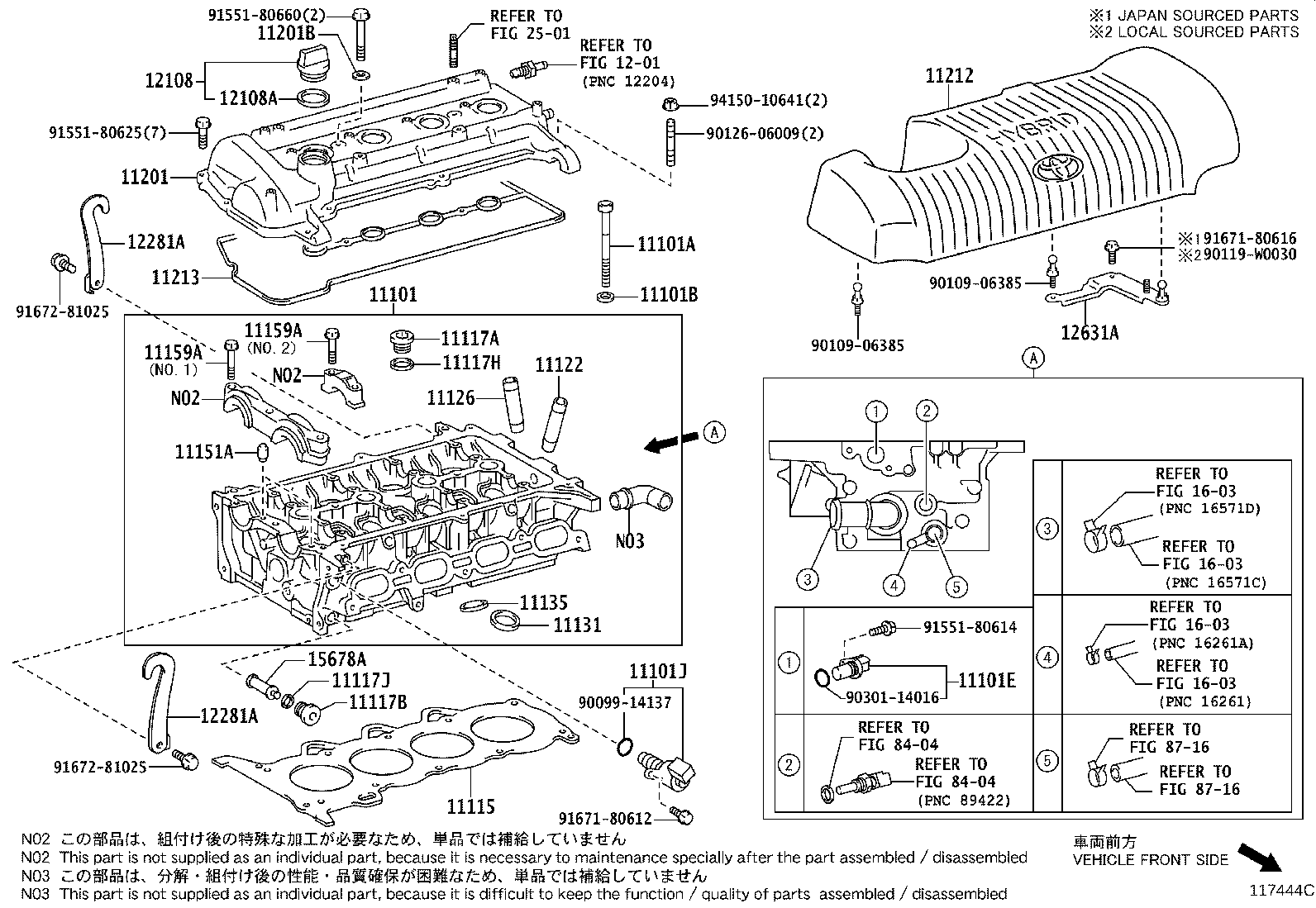

NHP130R-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
(1204- )1NZFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-21080 |
1NZFXE..NHP130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02170 |
1NZFXE..NHP130 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-09024 |
1NZFXE..NHP130 |
10 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05024 |
1NZFXE..NHP130 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-21040 |
1NZFXE..NHP130 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-21090 |
1NZFXE..NHP130 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-20002 |
1NZFXE..NHP130 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-14013 |
1NZFXE..NHP130 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1NZFXE..NHP130 |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14009 |
1NZFXE..NHP130 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-21010 |
1NZFXE..NHP130 STD |
8 | ||
| 11123-21010 |
1NZFXE..NHP130 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-21010 |
1NZFXE..NHP130 STD |
8 | ||
| 11123-21010 |
1NZFXE..NHP130 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-21020 |
1NZFXE..NHP130 O/S 0.03 |
8 | ||
| 11131-21020 |
1NZFXE..NHP130 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-21040 |
1NZFXE..NHP130 STD |
8 | ||
| 11136-21040 |
1NZFXE..NHP130 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90250-06001 |
1NZFXE..NHP130 L=14,OD=6 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1NZFXE..NHP130 NO.1 |
16 | ||
| 90119-08A29 |
1NZFXE..NHP130 NO.2 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1NZFXE..NHP130 NO.1 |
16 | ||
| 90119-08A29 |
1NZFXE..NHP130 NO.2 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-21080 |
1NZFXE..NHP130 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-05008 |
1NZFXE..NHP130 |
2 | ||
| 90210-06013 |
1NZFXE..NHP130 |
2 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-21080 |
1NZFXE..NHP130 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-21011 |
1NZFXE..NHP130 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1NZFXE,1NRFE..NHP130,NSP130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1NZFXE,1NRFE..NHP130,NSP130 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21090 |
1NZFXE..NHP130 |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21090 |
1NZFXE..NHP130 |
2 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-21010 |
1NZFXE..NHP130 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1NZFXE..NHP130 |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90109-06385 | ||||
| 90119-W0030 | ||||
| 90126-06009 | ||||
| 90301-14016 | ||||
| 91551-80614 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91672-81025 | ||||
| 94150-10641 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2501 | ||||
| 8404 | ||||
| 8716 | ||||
