ILLUST NO. 1 OF 3(1204- )NHP130
Click highlighted areas on diagram

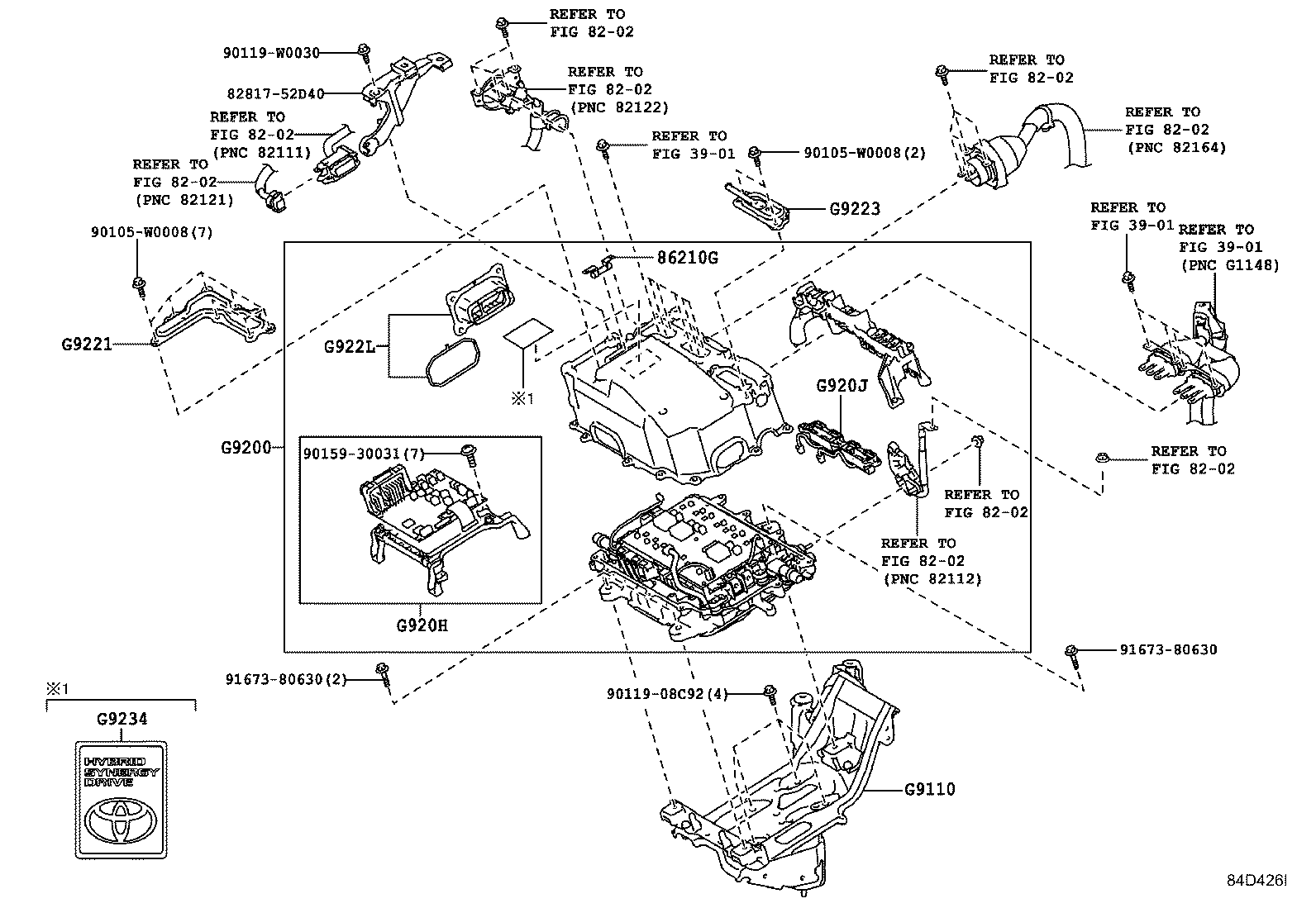

INVERTER ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86210G - FUSE, HIGH VOLTAGE | ||||
| 90982-11050 |
NHP130 |
1 | ||
| G9110 - BRACKET ASSY, INVERTER | ||||
| G9110-52010 |
NHP130 |
1 | ||
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G9200-59015 |
NHP130 |
1 | ||
| G920H - COMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL | ||||
| G920H-52020 |
NHP130 |
1 | ||
| G920J - SENSOR SUB-ASSY, INVERTER CURRENT | ||||
| G920J-52010 |
NHP130 |
1 | ||
| G9221 - COVER, INVERTER | ||||
| G9221-52010 |
NHP130 |
1 | ||
| G9223 - COVER, INVERTER TERMINAL | ||||
| G9223-52010 |
NHP130 |
1 | ||
| G922L - COVER, INVERTER SIGNAL CONNECTOR | ||||
| G922L-47010 |
NHP130 |
1 | ||
| G9234 - PLATE, INVERTER NAME | ||||
| G923F-52010 |
NHP130 |
1 | ||
| Common parts | ||||
| 82817-52D40 | ||||
| 90105-W0008 | ||||
| 90119-08C92 | ||||
| 90119-W0030 | ||||
| 90159-30031 | ||||
| 91673-80630 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1204- )NHP130
Click highlighted areas on diagram

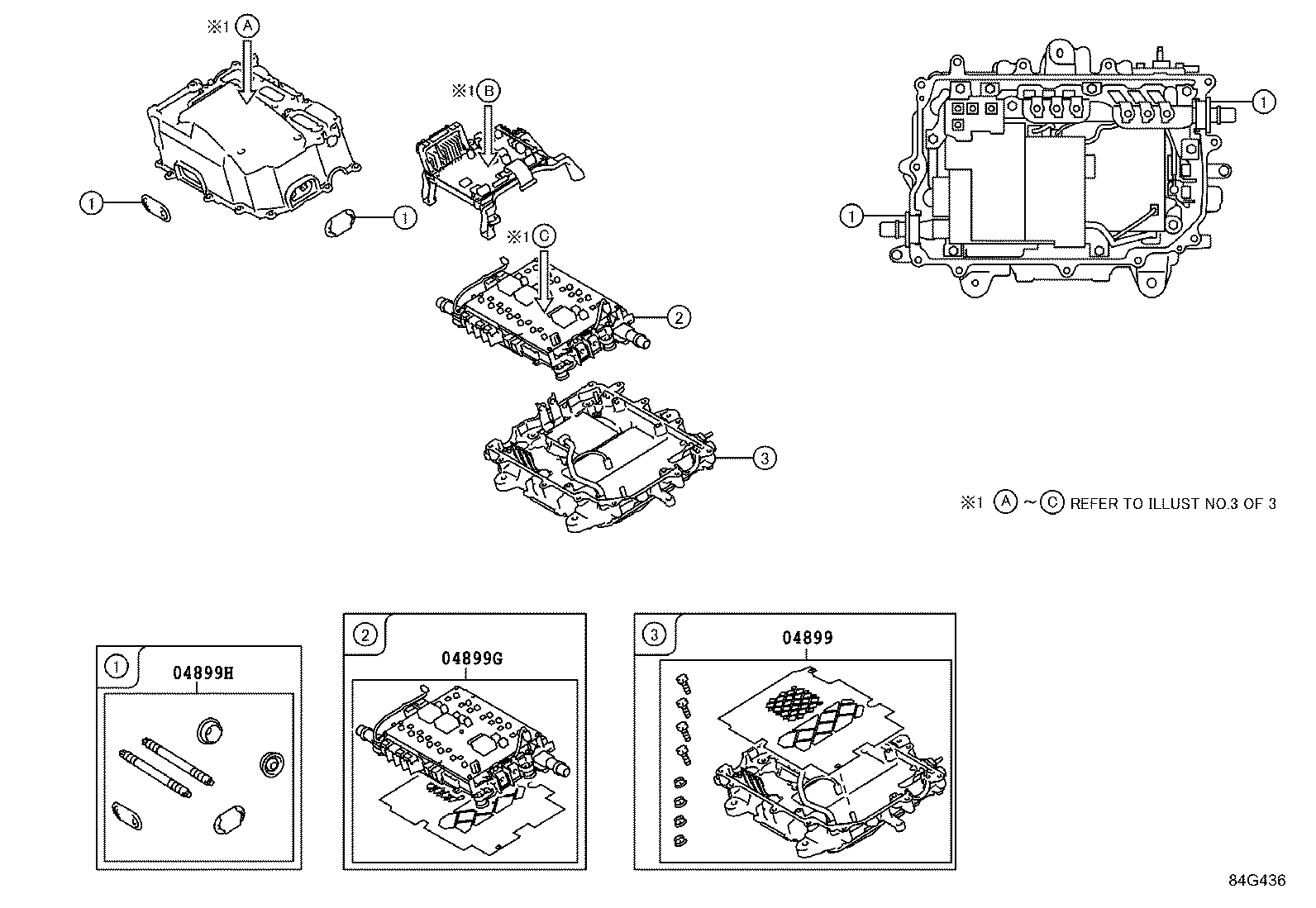

KIT PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04899 - CONVERTER KIT, HV | ||||
| 04899-52010 |
NHP130 |
1 | ||
| 04899G - TRANSISTOR KIT, POWER MODULE INTELLIGENT | ||||
| 04899-52020 |
NHP130 |
1 | ||
| 04899H - PLUG KIT, INVERTER DRAIN | ||||
| 04899-47060 |
NHP130 |
1 | ||
ILLUST NO. 3 OF 3(1204- )NHP130
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06329 | ||||
| 91551-80618 | ||||
| 91553-80516 | ||||
| 91553-80628 | ||||
