NHP130L-CHXNBW (2012)

Toyota Yaris/Hybrid (Frp)

Production Apr 2012 - Jul 2014
Engine 1NZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

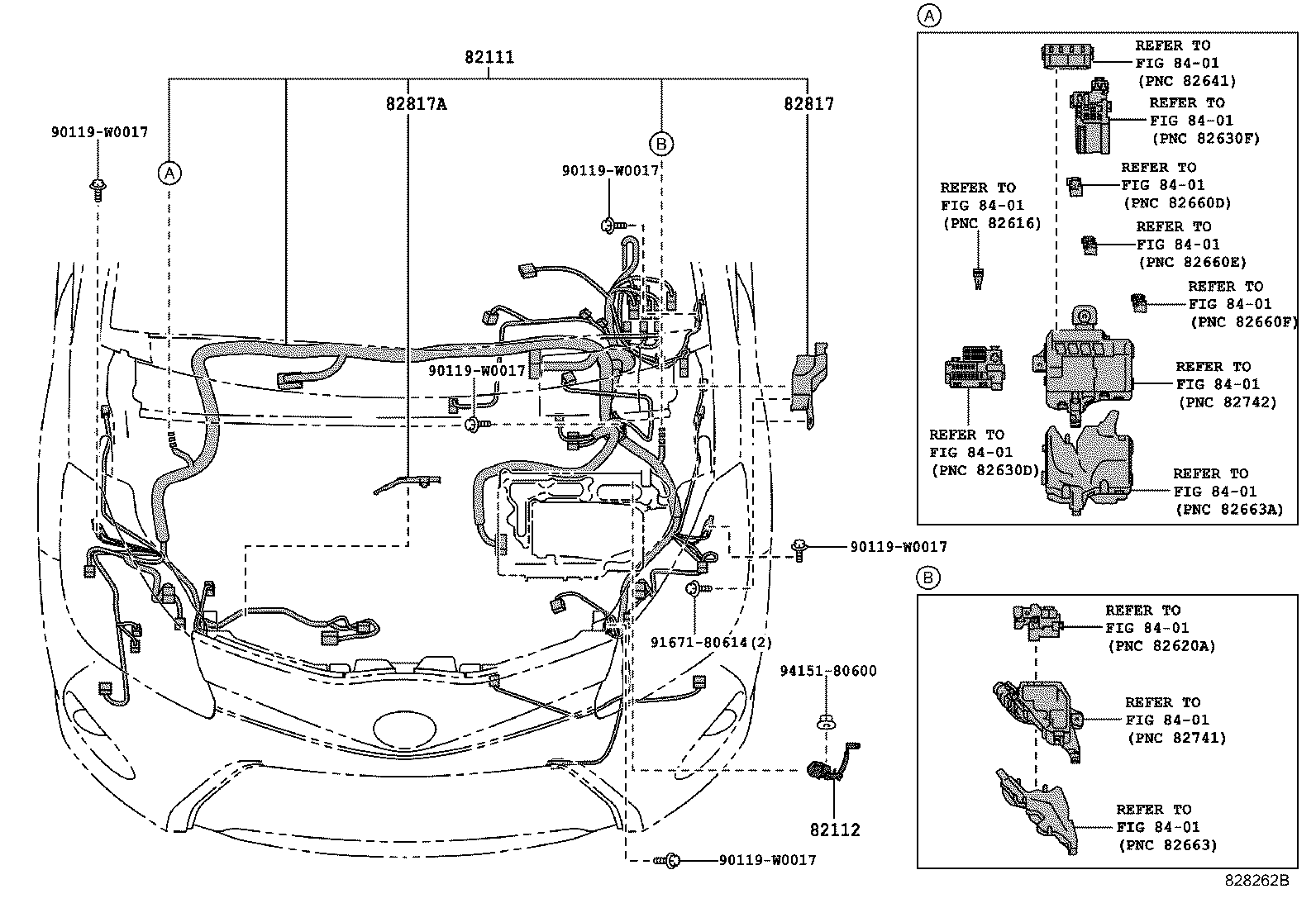

ILLUST NO. 1 OF 9(1204- )NHP130..LHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 82817 82817A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 90119W0017 90119W0017 90119W0017 90119W0017 90119W0017 9167180614 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0U110

NHP130..LHD..ACTIV

HV ENTRY PACKAGE

 1
82111-0U020

NHP130..LHD

 1
82111-0U021

NHP130..LHD

 1
82111-0U111

NHP130..LHD..ACTIV

HV ENTRY PACKAGE

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-52530

NHP130

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52D20

NHP130

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-0D490

NHP130

 1
Common parts
90119-W0017
91671-80614
94151-80600
Linked diagrams
8401

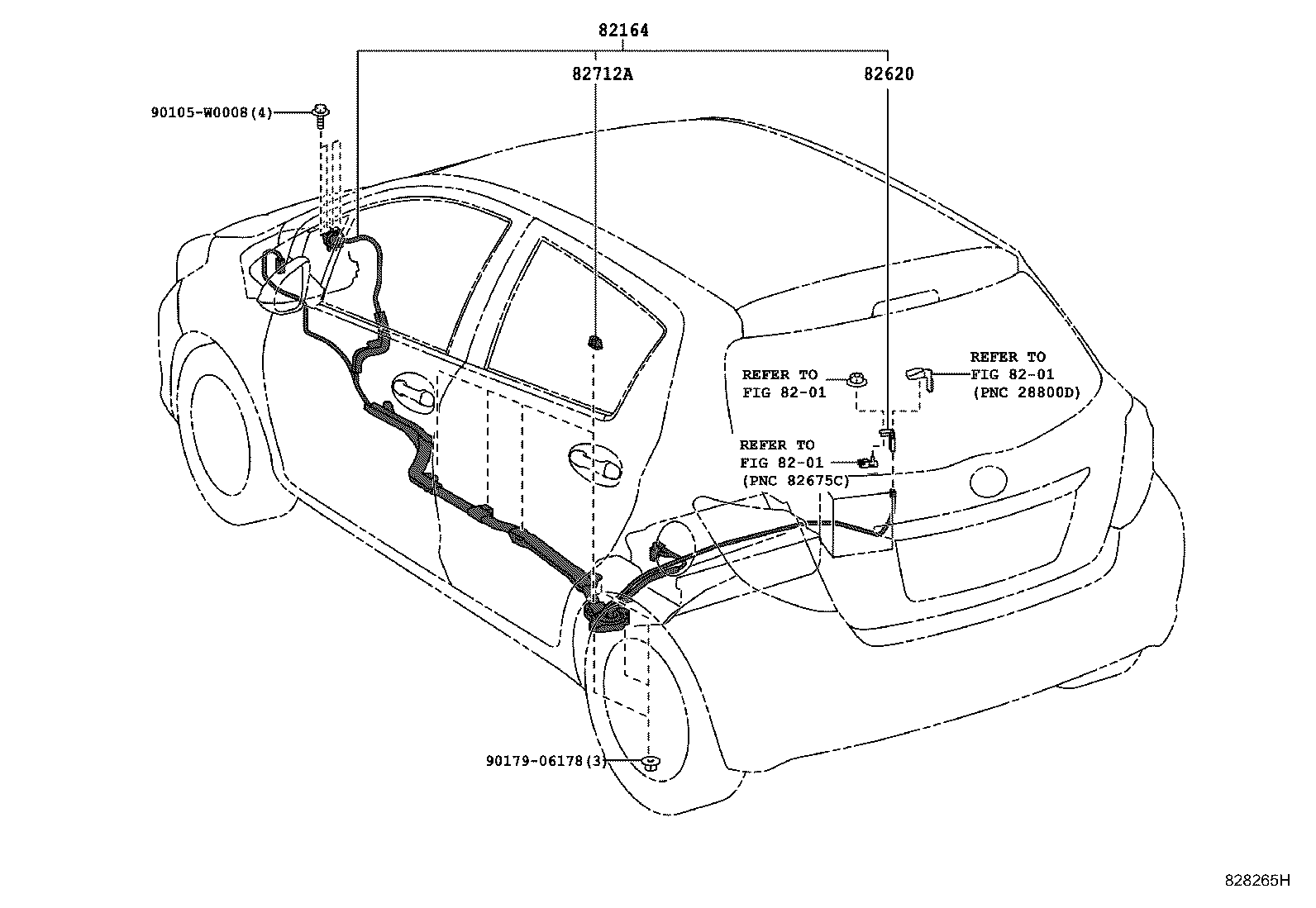

ILLUST NO. 6 OF 9(1204- )NHP130

Click highlighted areas on diagram

HIGH-TENSION CABLE

diagram 8201 8201 8201 82164 82620 82712A 90105W0008 9017906178
Part # Description Qty Price
82164 - WIRE, FRAME
82164-0D010

NHP130

 1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-47070

NHP130

 1
82712A - SUPPORT, WIRING HARNESS
82712-47270

NHP130

 4
Common parts
90105-W0008
90179-06178
Linked diagrams
8201

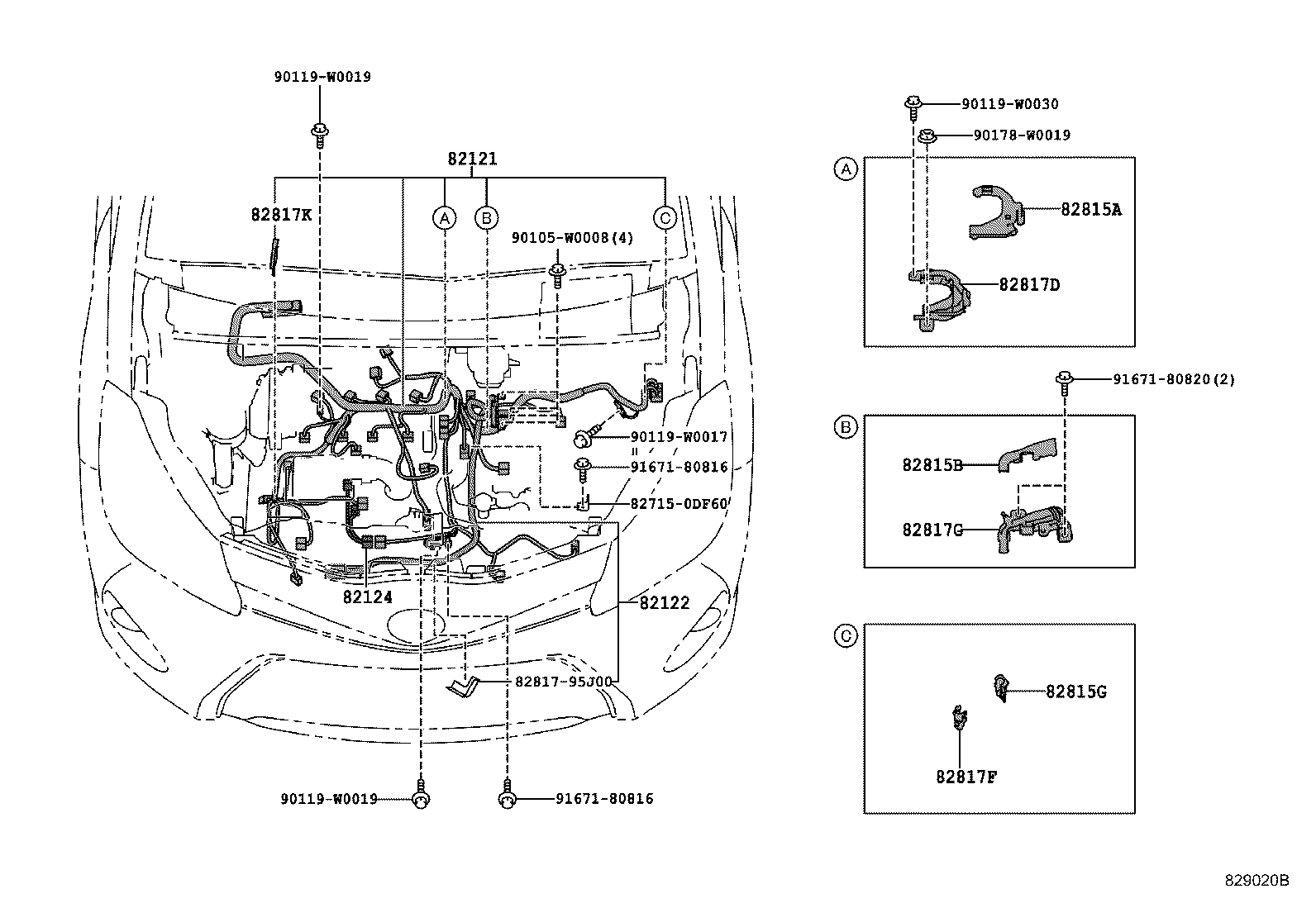

ILLUST NO. 2 OF 9(1204- )NHP130

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82124 827150DF60 82815A 82815B 82815G 8281795J00 82817D 82817F 82817G 82817K 90105W0008 90119W0017 90119W0019 90119W0019 90119W0030 90178W0019 9167180816 9167180816 9167180820
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0DG60

NHP130..LHD

 1
82121-0DG61

NHP130..LHD

 1
82122 - WIRE, ENGINE, NO.2
82122-0D090

NHP130

 1
82124 - WIRE, ENGINE, NO.4
82124-52020

NHP130

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-0D220

NHP130

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52260

NHP130

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-52270

NHP130

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-0D500

NHP130

 1
82817-0D500

NHP130

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52C50

NHP130

 1
82817-52C50

NHP130

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52C40

NHP130

 1
82817-52C40

NHP130

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-52890

NHP130

 1
Common parts
82715-0DF60
82817-95J00
90105-W0008
90119-W0017
90119-W0019
90119-W0030
90178-W0019
91671-80816
91671-80820
