NHP130L-CHXNBW (2012)
Toyota Yaris/Hybrid (Frp)
Production
Apr 2012
-
Jul 2014
Engine
1NZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

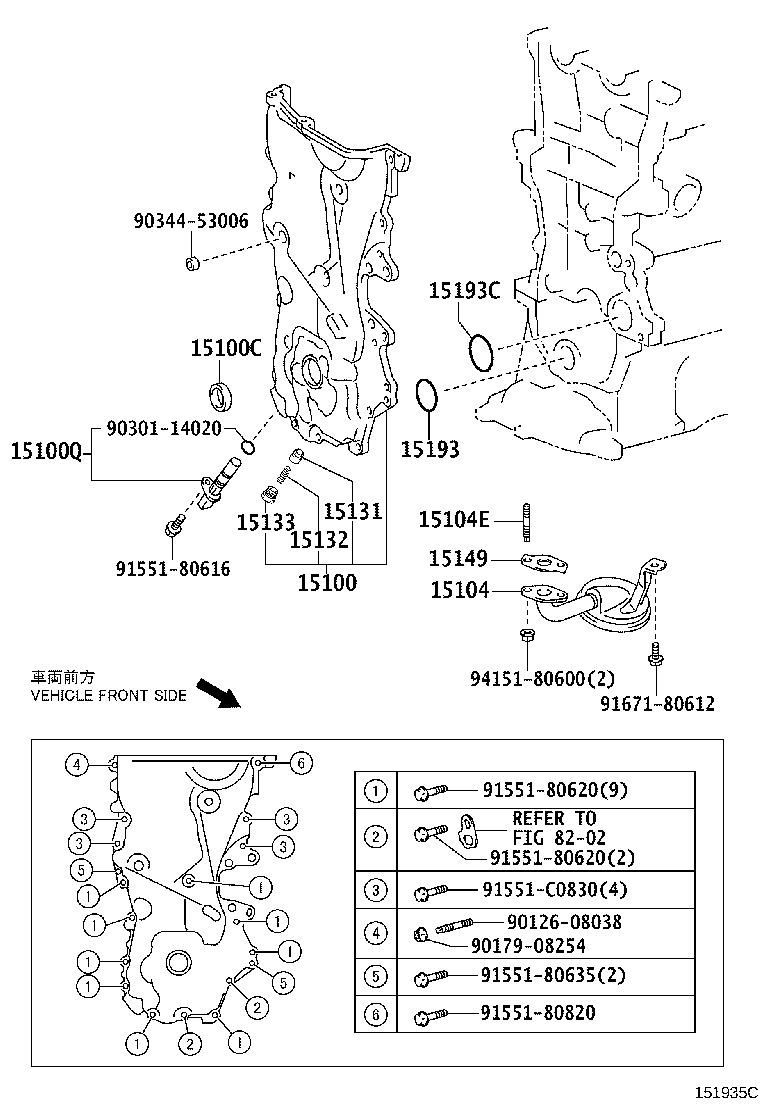

(1204- )1NZFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-21071 |
1NZFXE..NHP130 |
1 | ||
| 15100-21072 |
1NZFXE..NHP130 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-25032 |
1NZFXE..NHP130 |
1 | ||
| 90311-25033 |
1NZFXE..NHP130 |
1 | ||
| 15100Q - SENSOR, CRANK POSITION | ||||
| 90919-05087 |
1NZFXE..NHP130 |
1 | ||
| 90919-05081 |
1NZFXE..NHP130 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-21022 |
1NZFXE..NHP130 |
1 | ||
| 15104E - BOLT, STUD(FOR OIL STRAINER) | ||||
| 90126-06021 |
1NZFXE..NHP130 |
2 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-21020 |
1NZFXE..NHP130 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-21050 |
1NZFXE..NHP130 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-21030 |
1NZFXE..NHP130 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 16258-21030 |
1NZFXE..NHP130 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 12151-21010 |
1NZFXE..NHP130 |
1 | ||
| 15193C - GASKET, OIL PUMP NO.2 | ||||
| 11497-21010 |
1NZFXE..NHP130 |
1 | ||
| Common parts | ||||
| 90126-08038 | ||||
| 90179-08254 | ||||
| 90301-14020 | ||||
| 90344-53006 | ||||
| 91551-80616 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80820 | ||||
| 91551-C0830 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
