KSP130R-CHMNKW (2011)
Toyota Yaris/Hybrid (Frp)
(1107- )KSP130

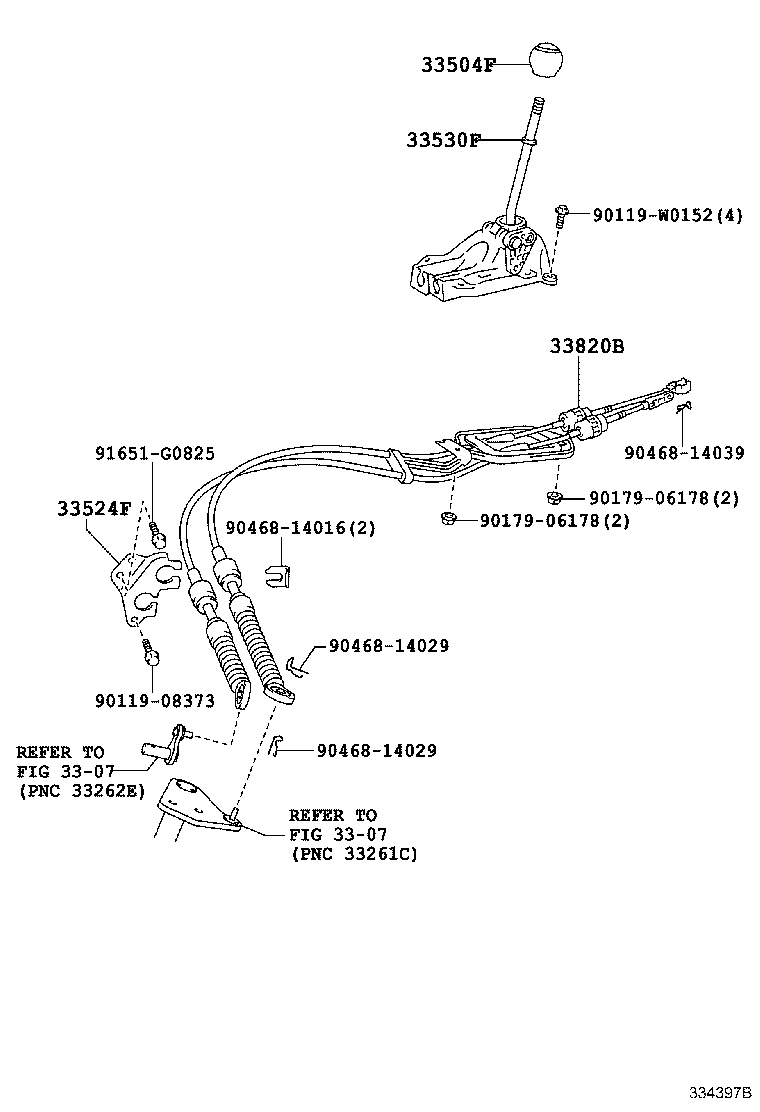

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV TREND PACKAGE,BLACK,TRIM1# |
1 | ||
| 33504-0D250C0 |
KSP130..ACTIV,LOUNG BLACK,TRIM1# |
1 | ||
| 33504-0D250C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC,BLACK,TRIM1# |
1 | ||
| 33504-12380C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC,BLACK,TRIM1# |
1 | ||
| 33504-0D250C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA),BLACK,TRIM1# |
1 | ||
| 33504-0D250C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&MODEL YEAR'13 GRADE&MODEL YEAR'14 GRADE,BLACK,TRIM1# |
1 | ||
| 33504-12380C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA),BLACK,TRIM1# |
1 | ||
| 33504-0D250C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&MODELYEAR'13 GRADE&MODEL YEAR'14 GRADE,BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV INTERIOR PACKAGE,BLACK,TRIM1# |
1 | ||
| 33504-0D290C0 |
KSP130..RHD..ACTIV MODEL YEAR'13 GRADE,BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&&TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D290C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&MODELYEAR'13 GRADE,BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&&TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&&TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D290C0 |
KSP130..RHD..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&MODEL YEAR'13 GRADE,BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33504-0D410C0 |
KSP130..RHD..5D..ACTIV REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&&TREND PACKAGE (WITHOUT DECO LINE),BLACK,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-52030 |
KSP130 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0D040 |
KSP130 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D090 |
KSP130 |
1 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-W0152 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14029 | ||||
| 90468-14039 | ||||
| 91651-G0825 | ||||
| Linked diagrams | ||||
| 3307 | ||||
