KSP130R-CGMRKW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130..RHD

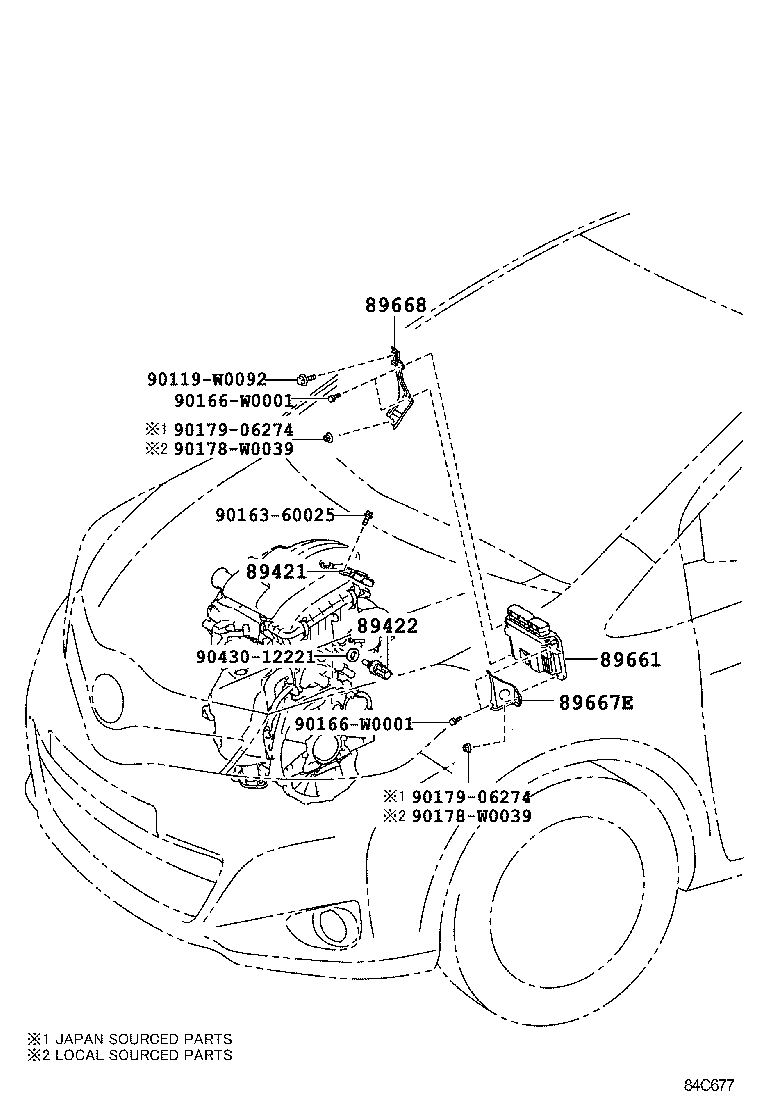

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 90119W0092 9016360025 90166W0001 90166W0001 90178W0039 90178W0039 9017906274 9017906274 9043012221
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KSP130

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP130,NHP130,NSP130

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DF10

KSP130

 1
89661-0DR80

KSP130

 1
89661-0DF20

KSP130

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-52220

KSP130..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52240

KSP130..RHD

 1
Common parts
90119-W0092
90163-60025
90166-W0001
90178-W0039
90179-06274
90430-12221
