Toyota Yaris/hybrid (frp) KSP130 WIRING & CLAMP

KSP130L-CHMRKW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1KRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 9(1107- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-0UV60	KSP130,NLP130..LHD..(5F,6F)..(ACTIV,STD,STYLE)	07/2011 - 03/2013	1
82141-0UV61	KSP130,NLP130..LHD..(5F,6F)..(ACTIV,STD,STYLE)	03/2013 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0D050	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
82666A - HOLDER, CONNECTOR NO.2
82666-0D070	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
82666B - HOLDER, CONNECTOR NO.3
82666-0D080	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-0D110	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-0D010	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
Common parts
90119-W0017
90159-60613
90159-W0012
Linked diagrams
8401

ILLUST NO. 1 OF 9(1107- )KSP130,NLP130,NSP130..LHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0DX30	KSP130..LHD..(ACTIV,STD)	07/2011 - 01/2012	1
82111-0DX40	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH	07/2011 - 01/2012	1
82111-0DX40	KSP130..LHD..STD FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 01/2012	1
82111-0DX40	KSP130..LHD..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 01/2012	1
82111-0DX50	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 01/2012	1
82111-0DX50	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 01/2012	1
82111-0DX31	KSP130..LHD..(ACTIV,STD)	02/2012 - 01/2013	1
82111-0DX41	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH	02/2012 - 01/2013	1
82111-0DX41	KSP130..LHD..STD FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	02/2012 - 01/2013	1
82111-0DX41	KSP130..LHD..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	02/2012 - 01/2013	1
82111-0DX51	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	02/2012 - 01/2013	1
82111-0DX51	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	02/2012 - 01/2013	1
82111-0DX31	KSP130..LHD..(ACTIV,STD)	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..STD FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..(ACTIV,STD) OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 03/2013	1
82111-0DX41	KSP130..LHD..5D..STD WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME	01/2013 - 03/2013	1
82111-0DX51	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	01/2013 - 03/2013	1
82111-0DX51	KSP130..LHD..(ACTIV,STD) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 03/2013	1
82111-0DX51	KSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR,CHROME, W/HEATER	01/2013 - 03/2013	1
82111-0DX51	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	01/2013 - 03/2013	1
82111-0DX33	KSP130..LHD..(ACTIV,STD)	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..STD FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..STD FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX43	KSP130..LHD..(ACTIV,STD) FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..(ACTIV,STD) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..(ACTIV,STD) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR,CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..STD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..(ACTIV,STD) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	03/2013 - 07/2014	1
82111-0DX53	KSP130..LHD..(ACTIV,STD) COLD SPEC & WITH(REAR HEATER DUCT)&FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 07/2014	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D420	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-0D430	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
Common parts
90119-W0017
91671-80614
Linked diagrams
8401

ILLUST NO. 4 OF 9(1107- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0DB70	NHP130..LHD;KSP130,NLP130,NSP130..LHD..5D..(ACTIV,STD,STYLE)	07/2011 - 12/2999	1
82151-0DB80	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 12/2999	1
82151-0DB90	KSP130,NLP130,NSP130..LHD..5D..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 12/2999	1
82151-0DB80	KSP130,NLP130,NSP130..5D..STD POWER WINDOW-WITHOUT	07/2011 - 12/2999	1
82151-0DB80	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 12/2999	1
82151-0DB90	NHP130..LHD;KSP130,NLP130,NSP130..LHD..5D..(ACTIV,STD) OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 12/2999	1
82151-0DB90	KSP130,NLP130,NSP130..LHD..5D..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 12/2999	1
82151-0DB80	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-0DB70	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 12/2999	1
82152-0DB80	KSP130,NHP130,NLP130,NSP130..LHD..5D..(ACTIV,STD,STYLE)	07/2011 - 12/2999	1
82152-0DB60	KSP130,NLP130,NSP130..LHD..5D..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK	07/2011 - 12/2999	1
82152-0DB70	KSP130,NLP130,NSP130..5D..STD POWER WINDOW-WITHOUT	07/2011 - 12/2999	1
82152-0DB70	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 12/2999	1
82152-0DB70	KSP130,NLP130,NSP130..LHD..5D..STD POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 12/2999	1
82152-0DB60	KSP130,NHP130,NLP130,NSP130..LHD..5D..(ACTIV,STD) OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME, W/HEATER	01/2013 - 12/2999	1
82152-0DB60	KSP130,NLP130,NSP130..LHD..5D..STD OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED	03/2013 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-0D300	NHP130..ACTIV;NLP130..RHD..5D..STD;KSP130,NSP130..5D..STD;NLP130..LHD..5D..(ACTIV,STD,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STYLE)	07/2011 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-0D190	NHP130..ACTIV;NLP130..RHD..5D..STD;KSP130,NSP130..5D..STD;NLP130..LHD..5D..(ACTIV,STD,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STYLE)	07/2011 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-0D150	KSP130,NLP130,NSP130..STD	07/2011 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-0D210	KSP130,NLP130,NSP130..STD	07/2011 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D030	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
Common parts
90119-W0017

ILLUST NO. 5 OF 9(1107- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-0DJ90	KSP130,NLP130,NSP130..LHD..5D..STD WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&SEAT HEATER-WITH(DRIVER & PASSENGER)	07/2011 - 12/2999	1
82161-0DJ90	KSP130,NLP130,NSP130..LHD..5D..STD	07/2011 - 12/2999	1
82161-0DJ80	KSP130,NLP130,NSP130..LHD..5D..STD WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 12/2999	1
82161-0DK40	KSP130,NLP130,NSP130..LHD..5D..(5F,6F,CVFC) VSC-WITHOUT	07/2011 - 12/2999	1
82161-0DK40	KSP130,NLP130,NSP130..LHD..5D..STD VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&SEAT HEATER-WITH(DRIVER & PASSENGER)	07/2011 - 12/2999	1
82161-0DK40	KSP130,NLP130,NSP130..LHD..5D..STD VSC-WITHOUT&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-0D180	KSP130,NHP130,NLP130,NSP130..ACTIV,STD	07/2011 - 12/2999	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-0D060	KSP130,NHP130,NLP130,NSP130..LHD HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC)	07/2011 - 12/2999	1
82182-0D050	KSP130,NHP130,NLP130,NSP130..LHD	07/2011 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-52710	KSP130,NLP130,NSP130..ACTIV,STD N1 PACKAGE	07/2011 - 12/2999	2
Common parts
90119-W0017
Linked diagrams
8601

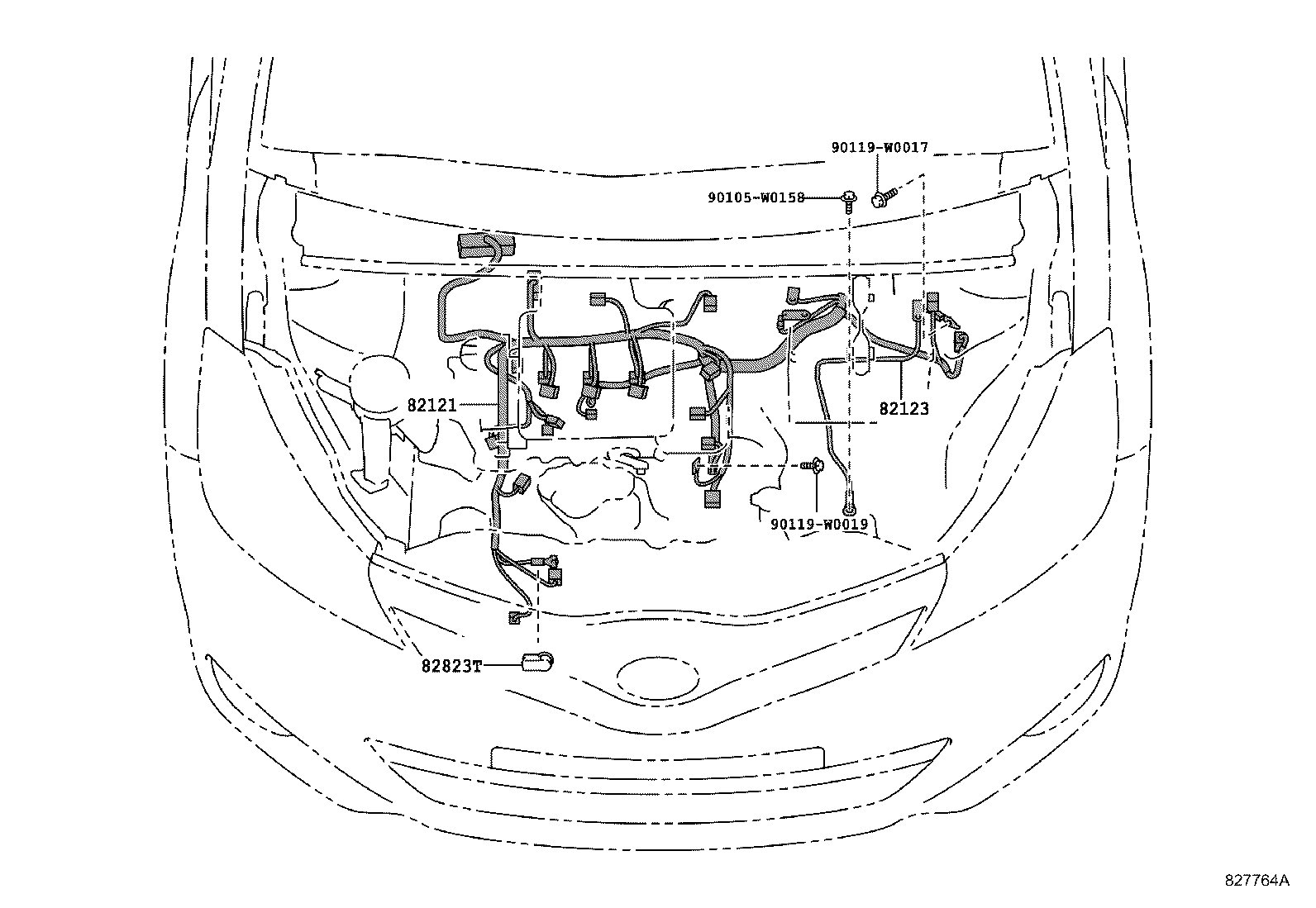

ILLUST NO. 2 OF 9(1107- )KSP130..LHD

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0DE20	KSP130..LHD	07/2011 - 07/2014	1
82123 - WIRE, ENGINE, NO.3
82123-0D390	KSP130	07/2011 - 07/2014	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KSP130,NLP130,NSP130	07/2011 - 07/2014	1
Common parts
90105-W0158
90119-W0017
90119-W0019

ILLUST NO. 7 OF 9(1107- )

Click highlighted areas on diagram

CLAMP & BRACKET 1/2

Part #	Description	Period	Qty	Price
Common parts
82715-05280
82715-0D750
82715-0D770
82715-0D820
82715-0D840
82715-0D850
82715-0D860
82715-0D870
82715-0DB60
82715-0DB80
82715-0DB90
82715-0DC00
82715-0DC10
82715-0DC20
82715-0DC30
82715-0DC50
82715-0DC60
82715-0DC70
82715-0DC80
82715-0DD10
82715-0DD80
82715-0DD90
82715-0DE40
82715-0DE50
82715-0DE70
82715-12P60
90105-W0158
90119-W0018
90119-W0019
90119-W0115
91671-80614
91671-80816
Linked diagrams
1708

ILLUST NO. 7 OF 9(1107- )

Click highlighted areas on diagram

CLAMP & BRACKET 2/2

Part #	Description	Period	Qty	Price
Common parts
82715-0D730
82715-0DB70
82715-0DC90
82715-0DE60
82715-0DE80
82715-0DF10
82715-0DF20
82715-0DF40
82715-0DF50
82715-0DF60
82715-0H230
82715-12B80
82715-12C70
82715-12N30
82715-12N90
82715-12P00
82715-12P80
82715-12Q41
82715-47170
82715-52B80
82715-52Q90
82715-52S40
82715-52T10
82715-52T40
82715-52T90
82715-52Z70
82715-52Z80
82715-5C160
82715-5C170
82715-5C260
82715-5C270
82715-75190
90119-W0019
90119-W0030
90119-W0115
91671-80612
91671-80614
91671-80812
91671-80816
91671-80820
Linked diagrams
1104
2602

ILLUST NO. 8 OF 9(1107- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10797
90980-10825
90980-10897
90980-11016
90980-11019
90980-11070
90980-11148
90980-11156
90980-11314
90980-12490
90980-12699
