KSP130L-CHMGKW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130

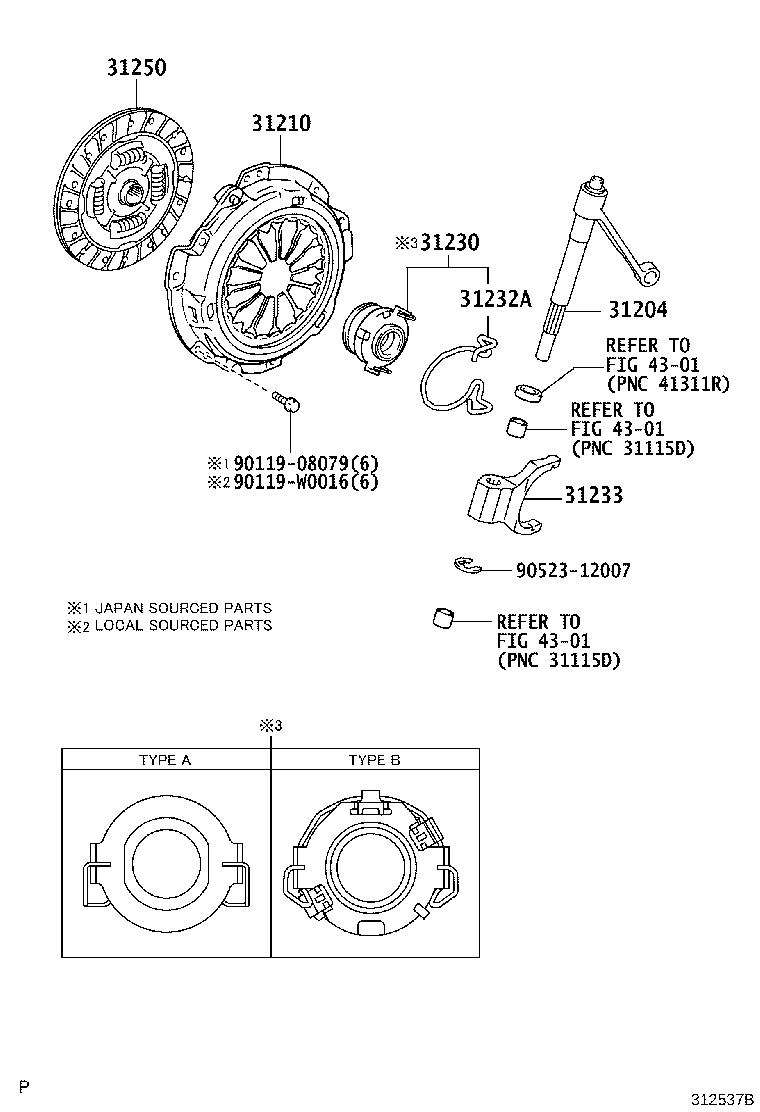

Click highlighted areas on diagram

diagram 31204 31210 31230 31232A 31233 31250 4301 4301 4301 9011908079 90119W0016 9052312007
Part # Description Qty Price
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52060

KSP130

*362

 1
31210 - COVER ASSY, CLUTCH
31210-0D150

KSP130

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-52040

KSP130

*362T/P B:SEE ILLUST

 1
31230-0H010

KSP130

*362T/P A:SEE ILLUST

 1
31232A - CLIP, RELEASE BEARING HUB
31232-52040

KSP130

*362

 1
31233 - FORK, CLUTCH RELEASE
31233-0D011

KSP130

*362

 1
31233-0D010

KSP130

*362

 1
31250 - DISC ASSY, CLUTCH
31250-0D190

KSP130

(L)

 1
31250-52230

KSP130

(J)

 1
Common parts
90119-08079
90119-W0016
90523-12007
Linked diagrams
4301
