KSP130L-CHMGKW (2011)
Toyota Yaris/Hybrid (Frp)

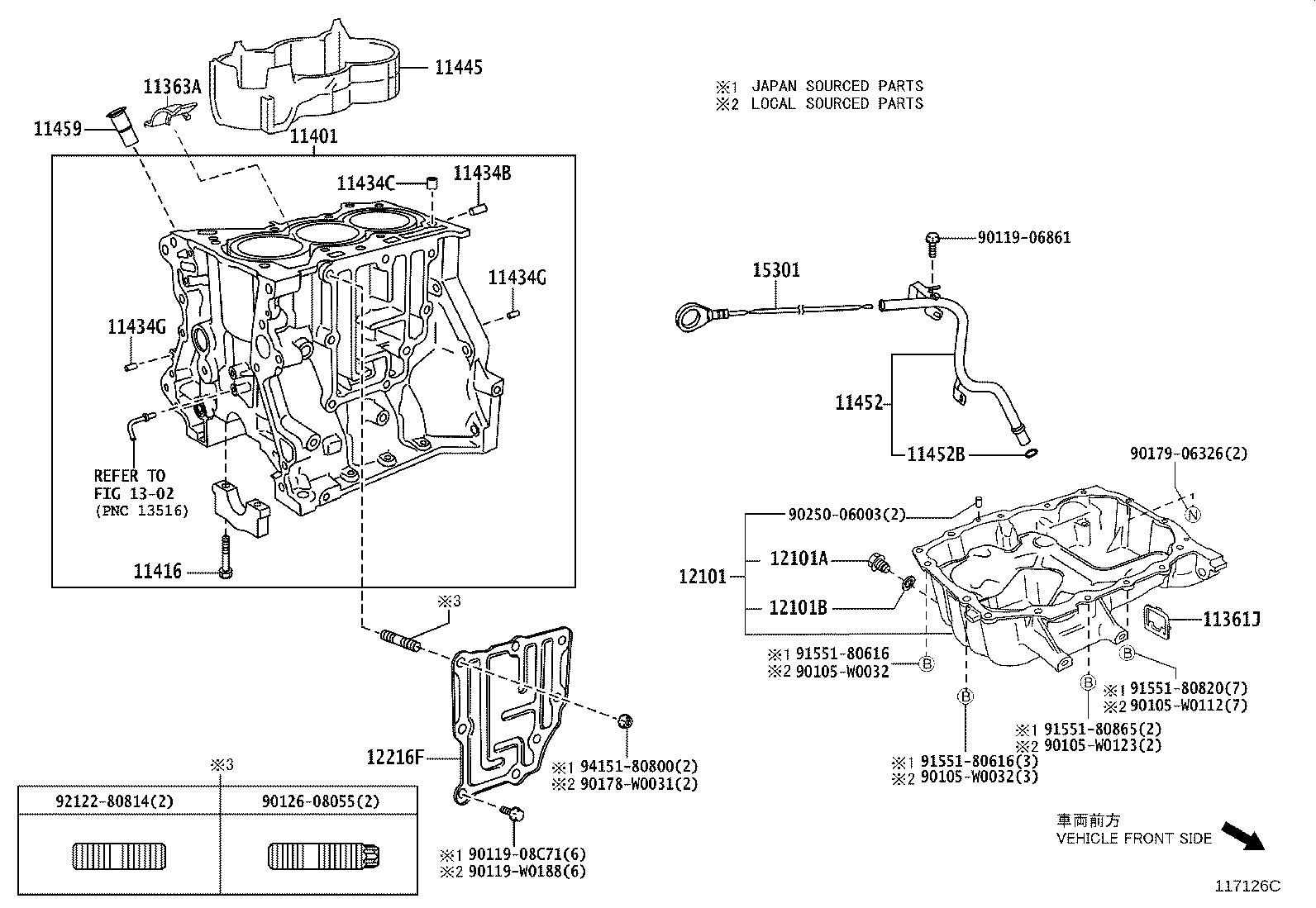

(1107- )1KRFE
ENGINE NO. = A0XXXXX - A9XXXXX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-23020 |
1KRFE..KSP130 |
1 | ||
| 11361-28010 |
1KRFE..KSP130 |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-40010 |
1KRFE..KSP130 (J) |
1 | ||
| 11363-0Q010 |
1KRFE..KSP130 (L) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-40041 |
1KRFE..KSP130 *138,(J) |
1 | ||
| 11401-40060 |
1KRFE..KSP130 *138,(J) |
1 | ||
| 11401-0Q011 |
1KRFE..KSP130 *138,(L) |
1 | ||
| 11401-40041 |
1KRFE..KSP130 *132 |
1 | ||
| 11401-40060 |
1KRFE..KSP130 *132 |
1 | ||
| 11401-0Q030 |
1KRFE..KSP130 *138,(L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KSP130 |
8 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10232 |
1KRFE..KSP130 L=15,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP130 L=12,OD=12 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-06003 |
1KRFE..KSP130 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-06003 |
1KRFE..KSP130 |
4 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-40010 |
1KRFE..KSP130 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-40060 |
1KRFE..KSP130 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KSP130 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-40010 |
1KRFE..KSP130 |
2 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0Q020 |
1KRFE..KSP130 (L) |
1 | ||
| 12101-40100 |
1KRFE..KSP130 (J) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KSP130 |
2 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43037 |
1KRFE..KSP130 (L) |
1 | ||
| 90430-12031 |
1KRFE..KSP130 (J) |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-40020 |
1KRFE..KSP130 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40100 |
1KRFE..KSP130 *138 |
1 | ||
| 15301-40100 |
1KRFE..KSP130 *132 |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0112 | ||||
| 90105-W0123 | ||||
| 90119-06861 | ||||
| 90119-08C71 | ||||
| 90119-W0188 | ||||
| 90126-08055 | ||||
| 90178-W0031 | ||||
| 90179-06326 | ||||
| 90250-06003 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 92122-80814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||

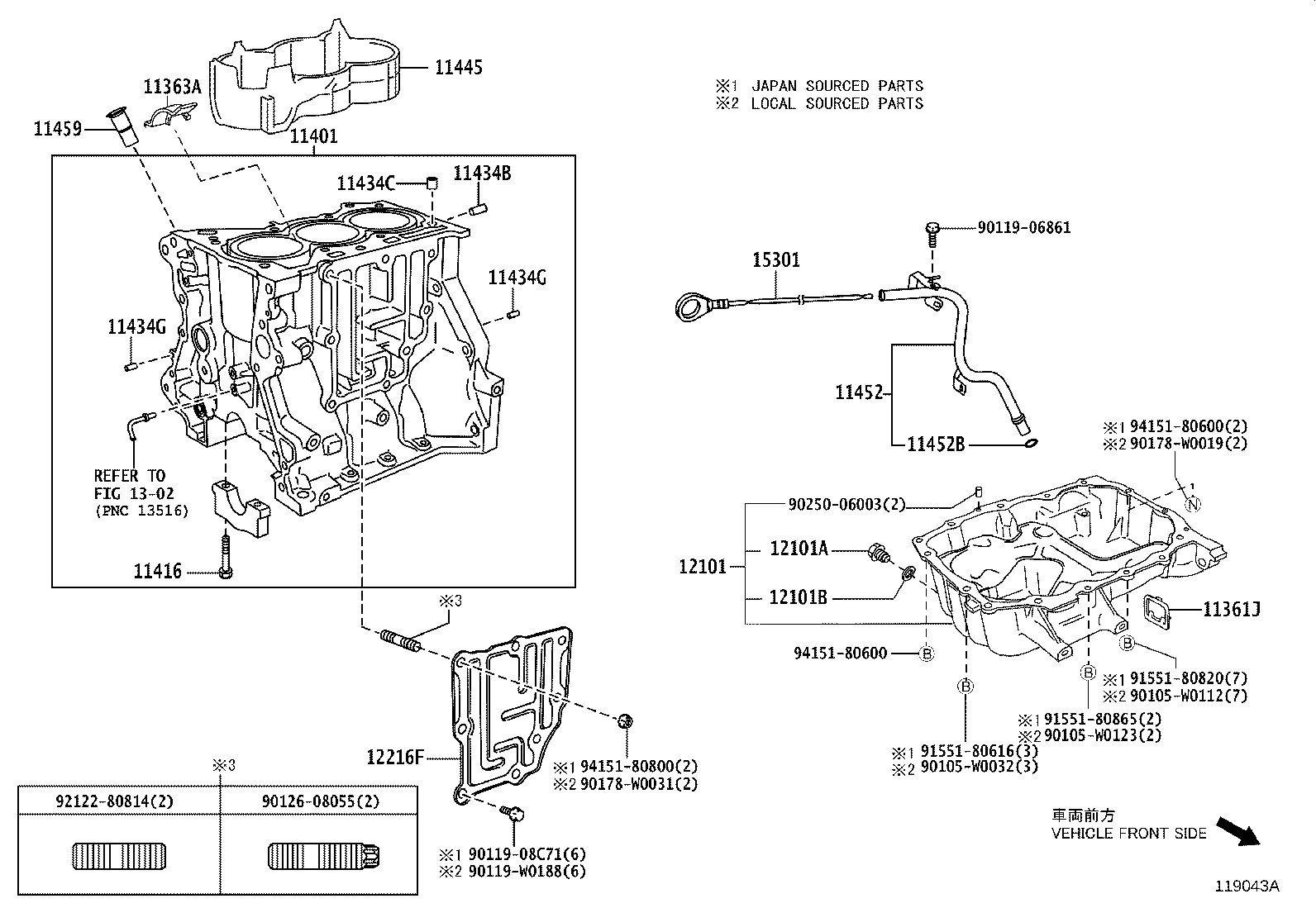

(1107- )1KRFE
ENGINE NO. = 0XXXXXX - 9XXXXXX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-23020 |
1KRFE..KSP130 |
1 | ||
| 11361-28010 |
1KRFE..KSP130 |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-40010 |
1KRFE..KSP130 (J) |
1 | ||
| 11363-0Q010 |
1KRFE..KSP130 (L) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-40041 |
1KRFE..KSP130 *138,(J) |
1 | ||
| 11401-40060 |
1KRFE..KSP130 *138,(J) |
1 | ||
| 11401-0Q011 |
1KRFE..KSP130 *138,(L) |
1 | ||
| 11401-40041 |
1KRFE..KSP130 *132 |
1 | ||
| 11401-40060 |
1KRFE..KSP130 *132 |
1 | ||
| 11401-0Q030 |
1KRFE..KSP130 *138,(L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KSP130 |
8 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10232 |
1KRFE..KSP130 L=15,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP130 L=12,OD=12 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-06003 |
1KRFE..KSP130 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-06003 |
1KRFE..KSP130 |
4 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-40010 |
1KRFE..KSP130 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-40060 |
1KRFE..KSP130 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KSP130 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-40010 |
1KRFE..KSP130 |
2 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0Q020 |
1KRFE..KSP130 (L) |
1 | ||
| 12101-40100 |
1KRFE..KSP130 (J) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KSP130 |
2 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43037 |
1KRFE..KSP130 (L) |
1 | ||
| 90430-12031 |
1KRFE..KSP130 (J) |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-40020 |
1KRFE..KSP130 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40100 |
1KRFE..KSP130 *138 |
1 | ||
| 15301-40100 |
1KRFE..KSP130 *132 |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0112 | ||||
| 90105-W0123 | ||||
| 90119-06861 | ||||
| 90119-08C71 | ||||
| 90119-W0188 | ||||
| 90126-08055 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90250-06003 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 92122-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
