NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1407- )RHD

Click highlighted areas on diagram

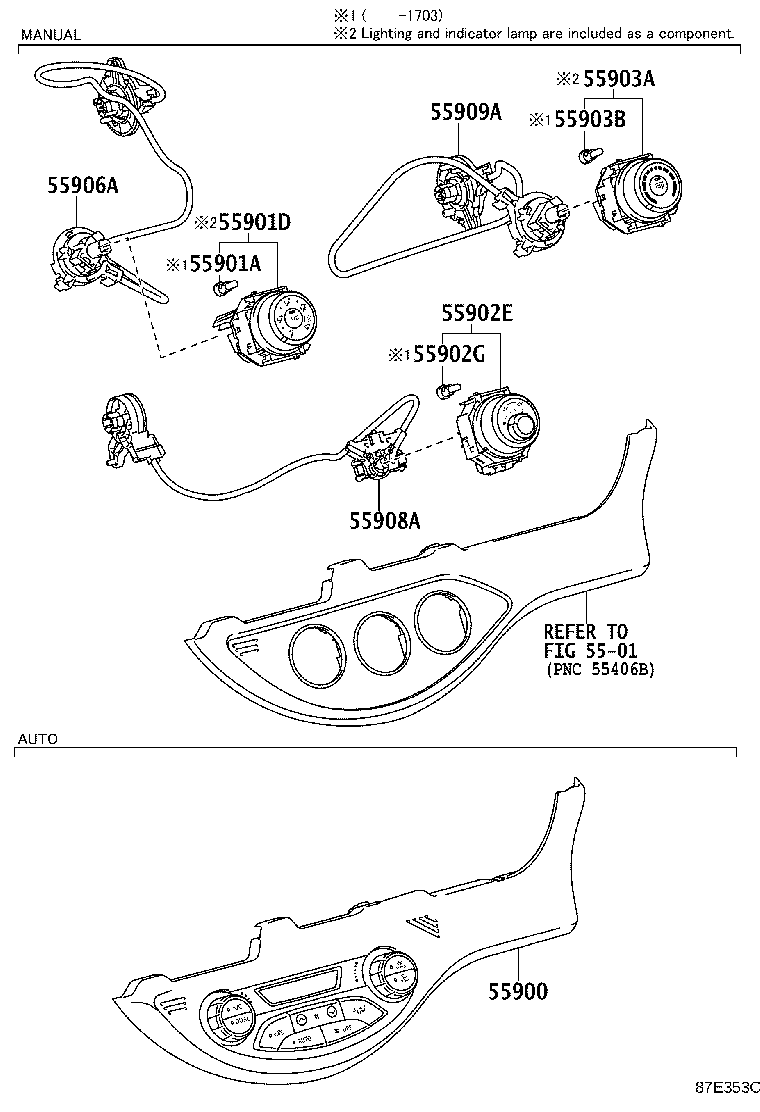

HEATER CONTROL PANEL

diagram 5501 55900 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

NSP131..S;NLP130..LHD..S

 1
55906-52132

NSP131..S;NLP130..LHD..S

FRONT AIR CONDITIONER-AUTO

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

NSP131..RHD..S

 1
55908-52130

NSP131..RHD..S

FRONT AIR CONDITIONER-AUTO

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

NSP131..S;NLP130..LHD..S

FRONT AIR CONDITIONER-AUTO

 1
55909-52120

NSP131..S;NLP130..LHD..S

 1
Linked diagrams
5501

ILLUST NO. 2 OF 3(1407- )RHD

Click highlighted areas on diagram

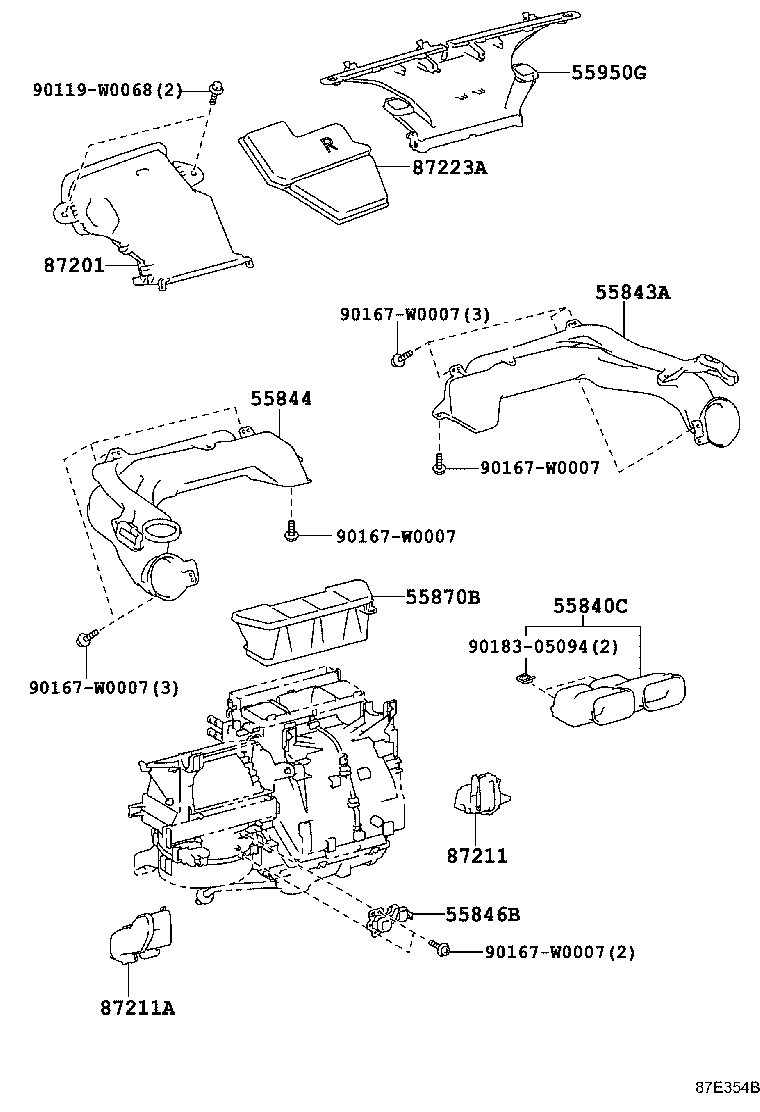

AIR DUCT

diagram 55840C 55843A 55844 55846B 55870B 55950G 87201 87211 87211A 87223A 90119W0068 90167W0007 90167W0007 90167W0007 90167W0007 90167W0007 9018305094
Part # Description Qty Price
Common parts
90119-W0068
90167-W0007
90183-05094

ILLUST NO. 3 OF 3(1407- )RHD

Click highlighted areas on diagram

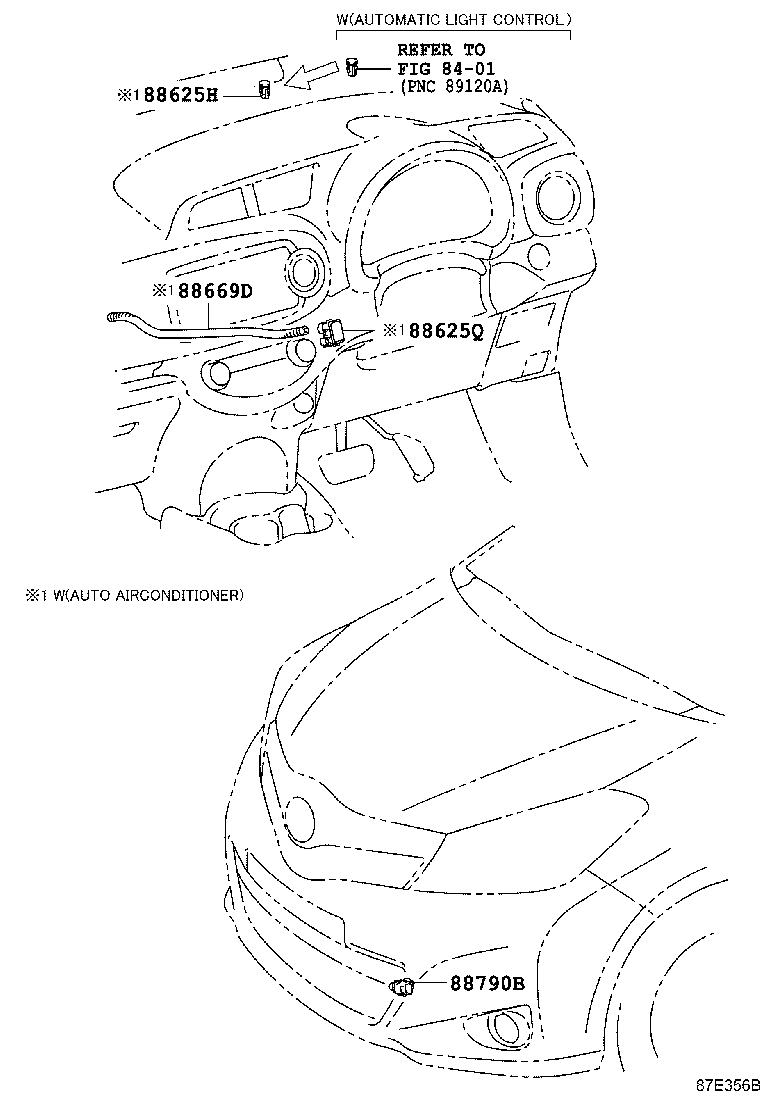

SENSOR

diagram 8401 88625H 88625Q 88669D 88790B
Part # Description Qty Price
88669D - HOSE, AIR
88669-0D010

KSP130,NSP131..RHD..(N,S)

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&FRONT AIR CONDITIONER-AUTO

 1
88669-0D010

KSP130,NSP131..RHD..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&FRONT AIR CONDITIONER-AUTO

 1
88790B - THERMISTOR ASSY
88790-22131

KSP130,NHP130,NLP130,NSP131

 1
Linked diagrams
8401
