NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )KSP130,NLP130,NSP13#

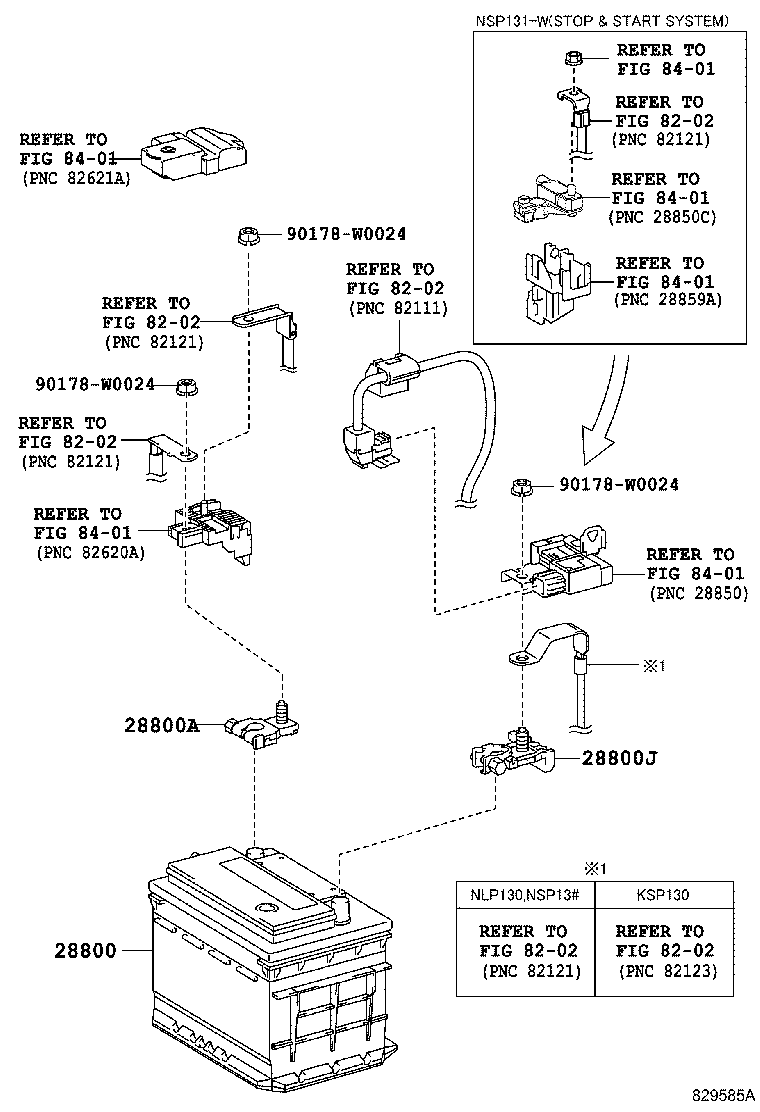

Click highlighted areas on diagram

diagram 28800 28800A 28800J 8202 8202 8202 8202 8202 8202 8401 8401 8401 8401 8401 8401 90178W0024 90178W0024 90178W0024
Part # Description Qty Price
28800 - BATTERY
28800-0Q060

1KRFE,2NRFKE..KSP130,NSP131

LN1

 1
28800-0Q061

1KRFE,2NRFKE..KSP130,NSP131

LN1

 1
Common parts
90178-W0024
Linked diagrams
8202
8401
