NSP131R-CHFSBW (2017)
Toyota Yaris/Hybrid(Frp)
ILLUST NO. 3 OF 3(1407- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0DR8020 |
NHP130,NLP130,NSP131..S COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),EU BLACK,TRIM2# |
1 | ||
| 67610-0DR8020 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),EU BLACK,TRIM20,21 |
1 | ||
| 67610-0DL80C1 |
KSP130,NHP130,NLP130,NSP131..5D..(N,S) COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(SHARP BLACK),EU BLACK,TRIM2# |
1 | ||
| 67610-0DR8022 |
NHP130,NLP130,NSP131..S POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN),EU BLACK,TRIM2# |
1 | ||
| 67610-0DR8021 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOR PACKAGE(BURGUNDY)&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(BURGUNDY),EU BLACK,TRIM20,21 |
1 | ||
| 67610-0DR80C2 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOR PACKAGE(WARM GREY)&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(WARM GREY),EU BLACK/WARM GREY,TRIM20,21 |
1 | ||
| 67610-0DR8022 |
NHP130,NLP130,NSP131..S EU BLACK,TRIM2# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0DD40C1 |
KSP130,NHP130,NLP130,NSP131..5D..(N,S) COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(SHARP BLACK),EU BLACK,TRIM2# |
1 | ||
| 67620-0DR8022 |
NHP130,NLP130,NSP131..S POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN),EU BLACK,TRIM2# |
1 | ||
| 67620-0DR8022 |
NHP130,NLP130,NSP131..S EU BLACK,TRIM2# |
1 | ||
| 67620-0DR80C2 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOR PACKAGE(WARM GREY)&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(WARM GREY),EU BLACK/WARM GREY,TRIM20,21 |
1 | ||
| 67620-0DR8020 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),EU BLACK,TRIM20,21 |
1 | ||
| 67620-0DR8021 |
KSP130,NSP131..5D..N;NHP130,NLP130..LHD..5D..N COLOR PACKAGE(BURGUNDY)&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(BURGUNDY),EU BLACK,TRIM20,21 |
1 | ||
| 67620-0DR8020 |
NHP130,NLP130,NSP131..S COLOUR PACK BLACK&POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABRIC(STYLE ALPHA),EU BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90189-06130 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
ILLUST NO. 1 OF 3(1407- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-0D280 |
NHP130,NLP130,NSP131..S |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-0D280 |
NHP130,NLP130,NSP131..S |
1 | ||
| Common parts | ||||
| 61825-02030 | ||||
| 67833-0D010 | ||||
| 90109-W0017 | ||||
| 90119-W0143 | ||||
| 90119-W0230 | ||||
| 90151-50026 | ||||
| 90269-05034 | ||||
| 90333-30002 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
ILLUST NO. 2 OF 3(1407- )

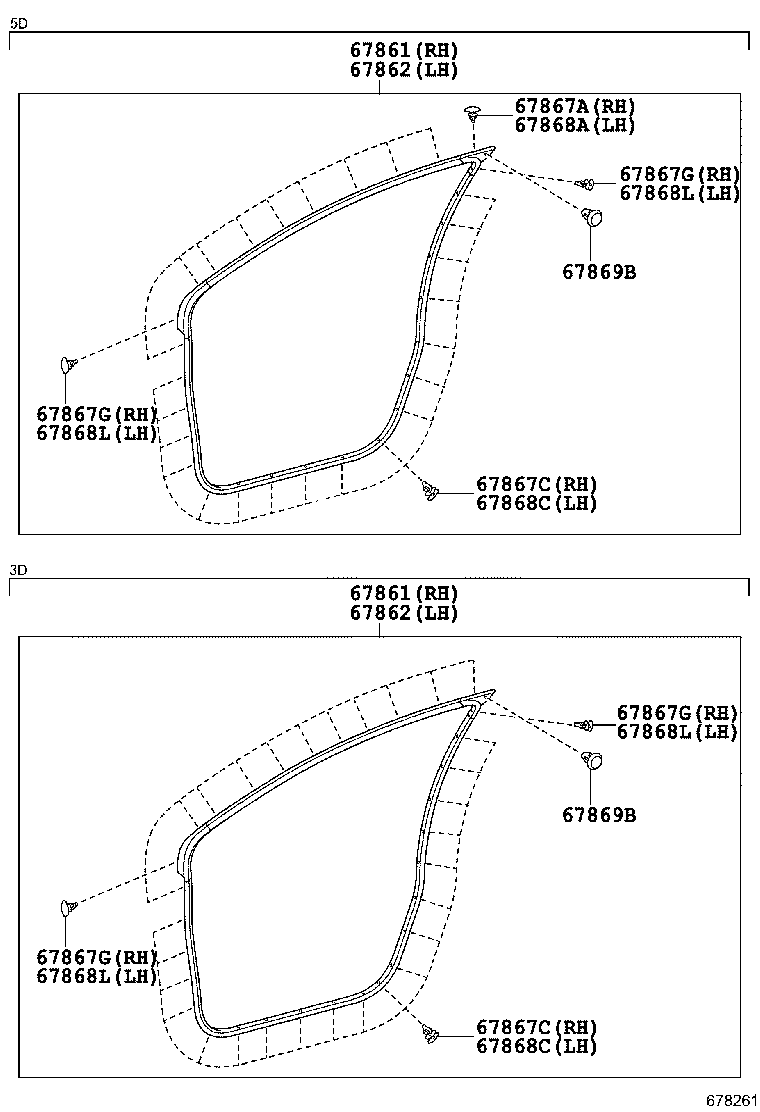

WEATHERSTRIP
| Part # | Description | Qty | Price |
|---|
