NSP131R-CHFSBW (2017)
Toyota Yaris/Hybrid(Frp)

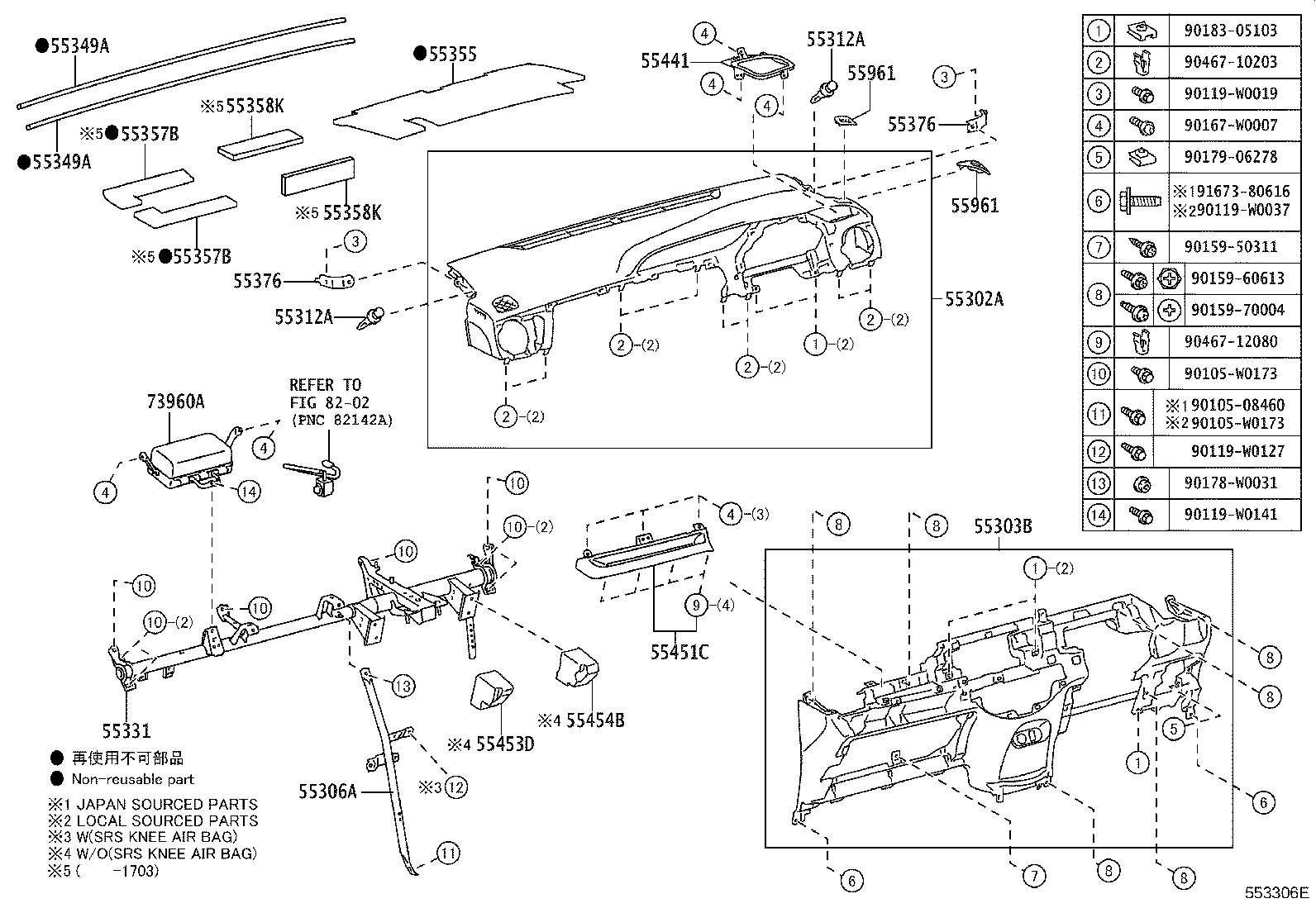

ILLUST NO. 1 OF 2(1407- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D370 |
KSP130,NHP130,NLP130,NSP131..RHD |
1 | ||
| 55306-0D320 |
KSP130,NSP131..RHD..5D..MTM SRS AIR BAG-W(*DRP & SIDE) |
1 | ||
| 55306-0D320 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D541 |
KSP130,NSP131..RHD..5D..MTM SRS AIR BAG-W(*DRP & SIDE) |
1 | ||
| 55330-0D541 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52120 |
KSP130,NSP131..RHD..5D..MTM SRS AIR BAG-W(*DRP & SIDE) |
1 | ||
| 55453-52120 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-0D060 |
KSP130,NSP131..RHD..5D..MTM SRS AIR BAG-W(*DRP & SIDE) |
1 | ||
| 55454-0D060 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D111 |
KSP130,NHP130,NLP130,NSP131 |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-W0173 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90119-W0141 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

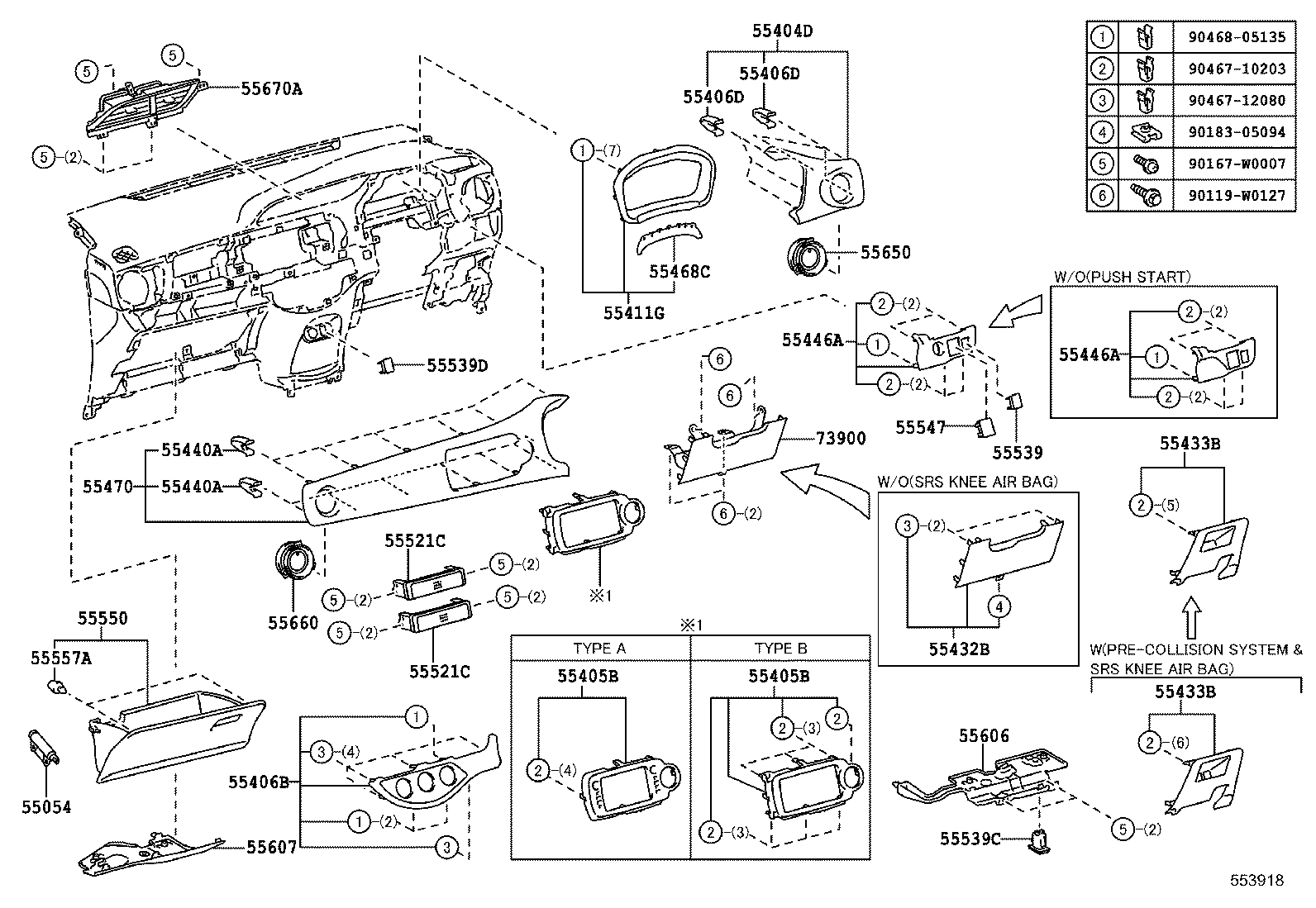

ILLUST NO. 2 OF 2(1703- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0D080B5 |
KSP130,NHP130,NLP130,NSP131..RHD..5D..(G,N) WARM GREY,TRIM20,21 |
1 | ||
| 55404-0D080D1 |
KSP130,NHP130,NLP130,NSP131..RHD..5D..(G,N) BURGUNDY,TRIM20,21 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D040C1 |
KSP130,NSP131..RHD..5D..MTM PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55432-0D040C1 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D170C1 |
KSP130,NSP131..RHD..5D..MTM PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55433-0D170C1 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433-0D390C0 |
KSP130,NHP130,NLP130,NSP131..RHD EU BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D170C1 |
KSP130,NSP131..RHD..5D..MTM PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55433-0D170C1 |
KSP130,NSP131..RHD..5D..MTM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&PRE-COLLISION SYSTEM-WITHOUT&VSC-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433-0D390C0 |
KSP130,NHP130,NLP130,NSP131..RHD EU BLACK,TRIM2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0D100B5 |
KSP130,NHP130,NLP130,NSP131..RHD..5D..(G,N) WARM GREY,TRIM20,21 |
1 | ||
| 55470-0D100D1 |
KSP130,NHP130,NLP130,NSP131..RHD..5D..(G,N) BURGUNDY,TRIM20,21 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
KSP130,NHP130,NSP131..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK |
1 | ||
| 55539-48020 |
KSP130,NHP130,NSP131..RHD REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-52240C2 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| 55680-52260C3 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-52270C3 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55680-52250C2 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
