NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )KSP130,NLP130,NSP13#..RHD

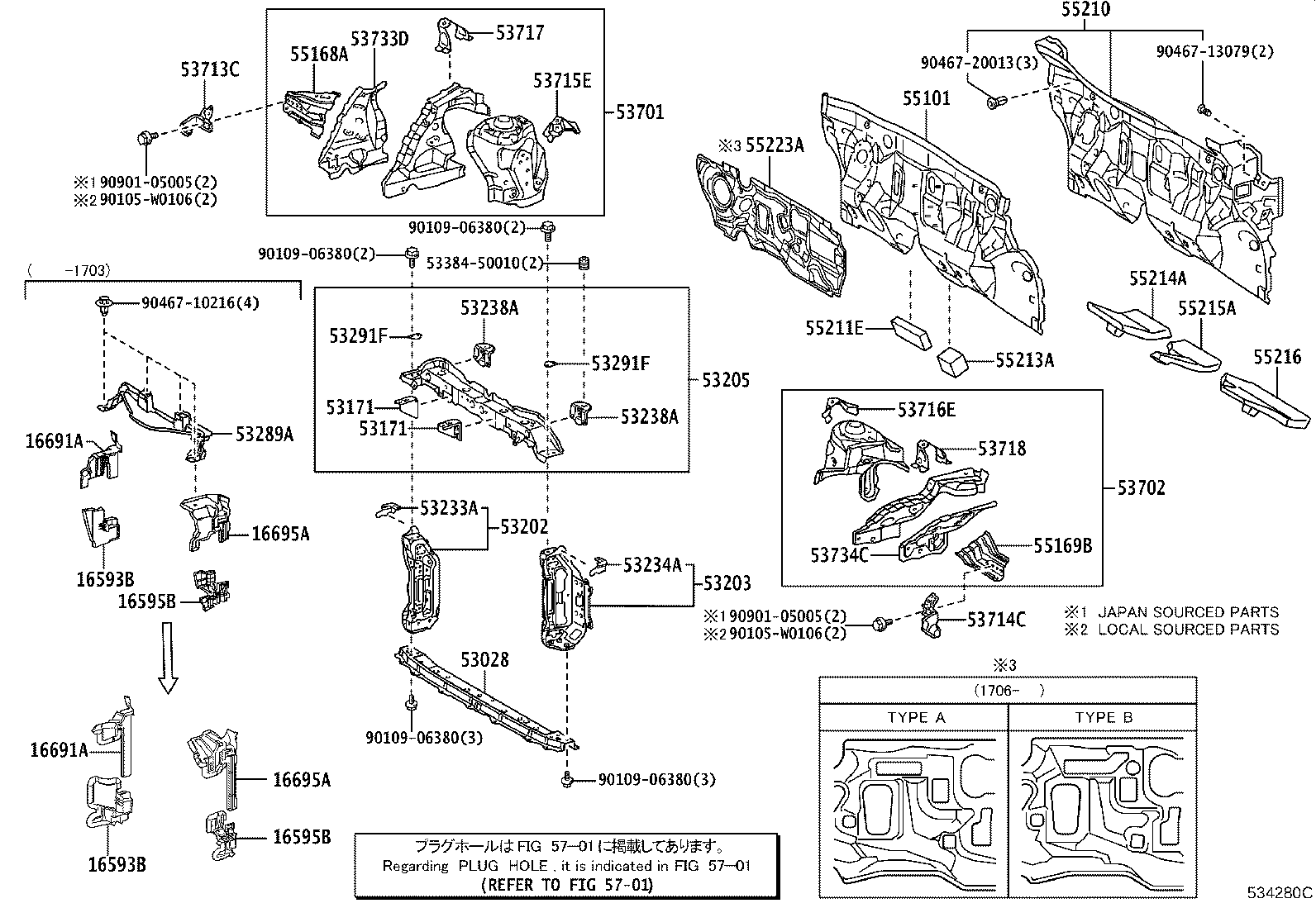

Click highlighted areas on diagram

diagram 16593B 16593B 16595B 16595B 16691A 16691A 16695A 16695A 53028 53171 53171 53202 53203 53205 53233A 53234A 53238A 53238A 53289A 53291F 53291F 5338450010 53701 53702 53713C 53714C 53715E 53716E 53717 53718 53733D 53734C 55101 55168A 55169B 55210 55211E 55213A 55214A 55215A 55216 55223A 5701 90105W0106 90105W0106 9010906380 9010906380 9010906380 9010906380 9046710216 9046713079 9046720013 9090105005 9090105005
Part # Description Qty Price
55223A - INSULATOR, DASH PANEL, OUTER
55223-0D470

KSP130..RHD..G;NHP130,NLP130..RHD;NSP131..RHD..(G,N,S)

 1
55223-0D162

NSP131..RHD..R;KSP130..RHD..(N,R)

 1
Common parts
53384-50010
90105-W0106
90109-06380
90467-10216
90467-13079
90467-20013
90901-05005
Linked diagrams
5701
