NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1407- )KSP130,NLP130,NSP13#

Click highlighted areas on diagram

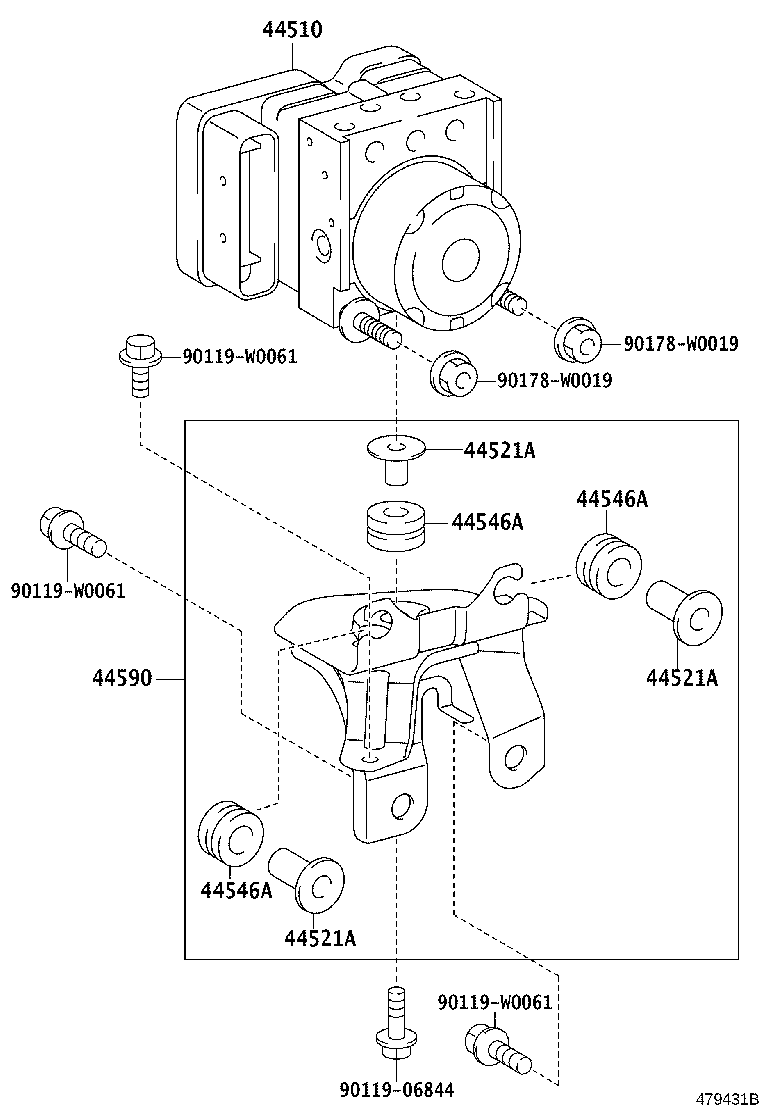

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 90119W0061 90119W0061 90119W0061 90178W0019 90178W0019
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D800

KSP130..RHD..5D;NSP131..5D..6F..(G,N,R)

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5JSTEEL BLACK

 1
44050-0D840

KSP130,NLP130,NSP131

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

 1
44050-0D800

KSP130..RHD..5D;NSP131..5D..6F..(G,N,R)

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5JALUMI

 1
44050-0D800

KSP130,NSP131..5D..MTM

VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

 1
44050-0D800

KSP130,NSP131..5D..MTM

VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

 1
44050-0D800

KSP130..RHD..5D;NSP131..5D..6F..(G,N,R)

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

 1
44050-0D800

KSP130..RHD..5D;NSP131..5D..6F..(G,N,R)

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK

 1
44050-0D840

KSP130,NLP130,NSP131

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D120

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
Common parts
90119-06844
90119-W0061
90178-W0019

ILLUST NO. 1 OF 2(1407- )KSP130,NLP130,NSP13#..RHD

Click highlighted areas on diagram

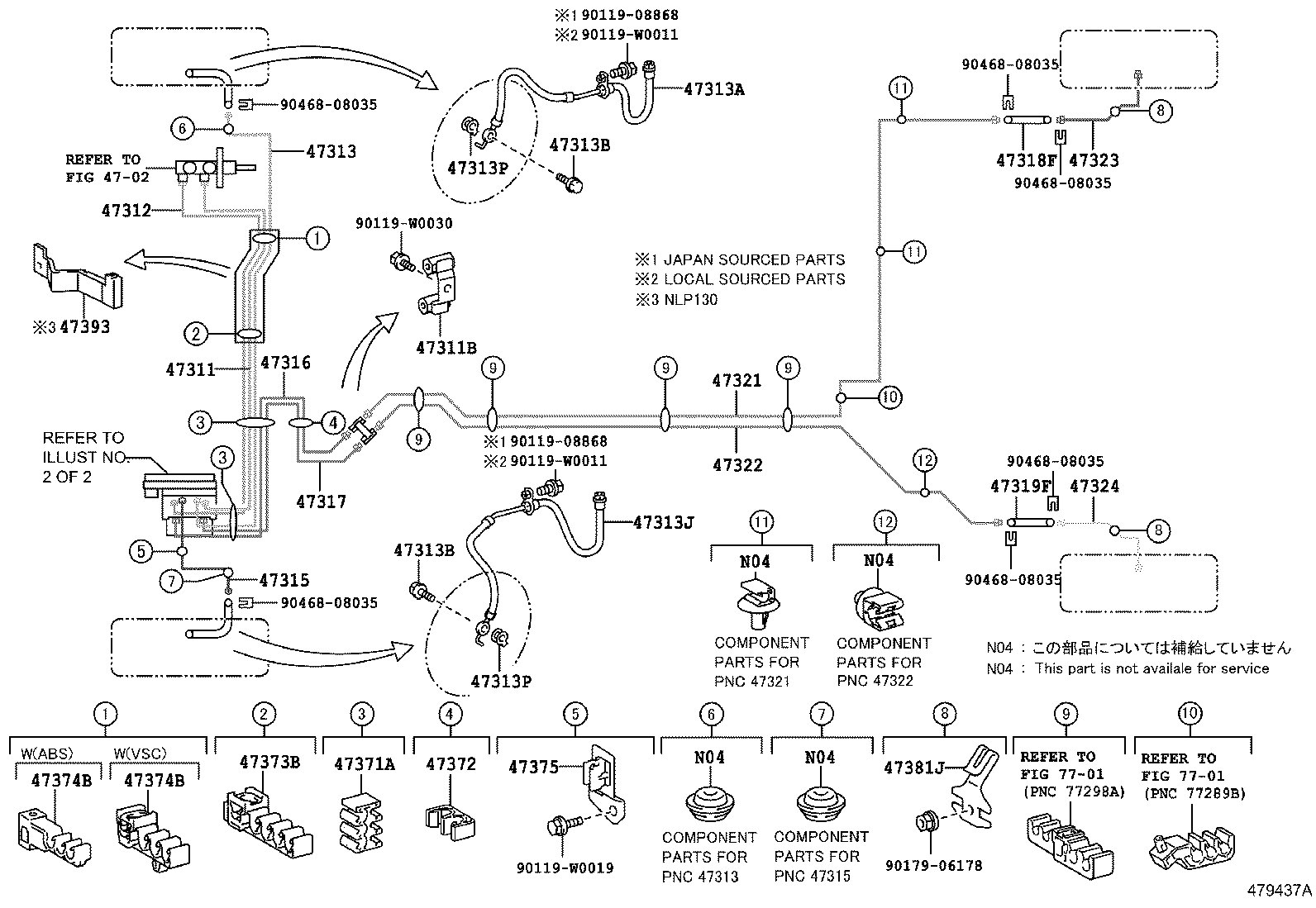

BRAKE TUBE,W(REAR DRUM BRAKE)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47374B 47375 47381J 47393 7701 7701 9011908868 9011908868 90119W0011 90119W0011 90119W0019 90119W0030 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D491

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D441

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D391

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D411

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D321

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D321

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D99

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D96

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00955

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00955

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
Common parts
90119-08868
90119-W0011
90119-W0019
90119-W0030
90179-06178
90468-08035
Linked diagrams
4702
7701

ILLUST NO. 1 OF 2(1407- )KSP130,NLP130,NSP13#..RHD

Click highlighted areas on diagram

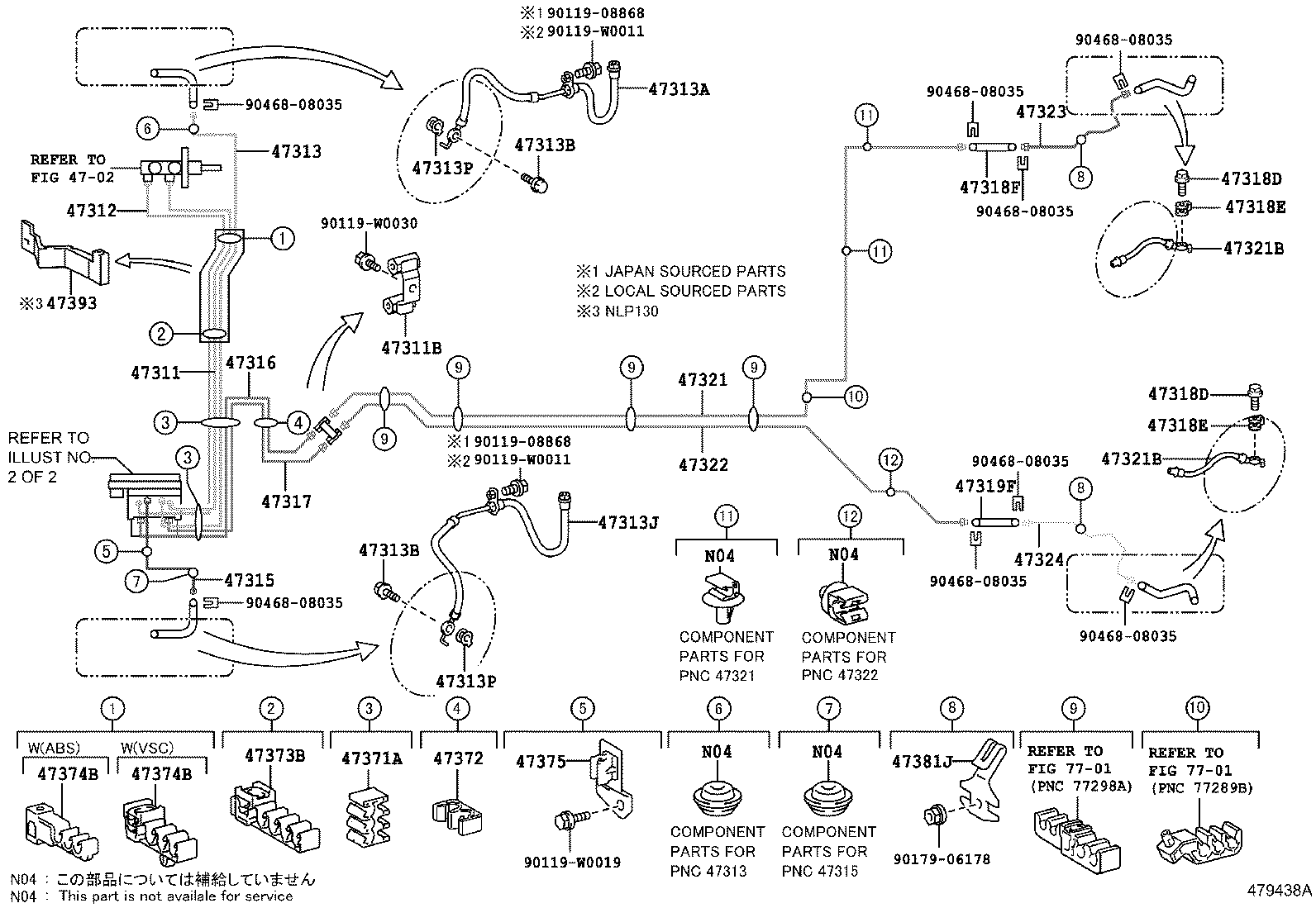

BRAKE TUBE,W(REAR DISC BRAKE)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47373B 47374B 47374B 47375 47381J 47393 7701 7701 9011908868 9011908868 90119W0011 90119W0011 90119W0019 90119W0030 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D491

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D441

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D391

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D411

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D321

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D321

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D99

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D96

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00955

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00955

KSP130,NSP131..RHD..5D..MTM

VSC-WITHOUT

 1
Common parts
90119-08868
90119-W0011
90119-W0019
90119-W0030
90179-06178
90468-08035
Linked diagrams
4702
7701
