NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )RHD

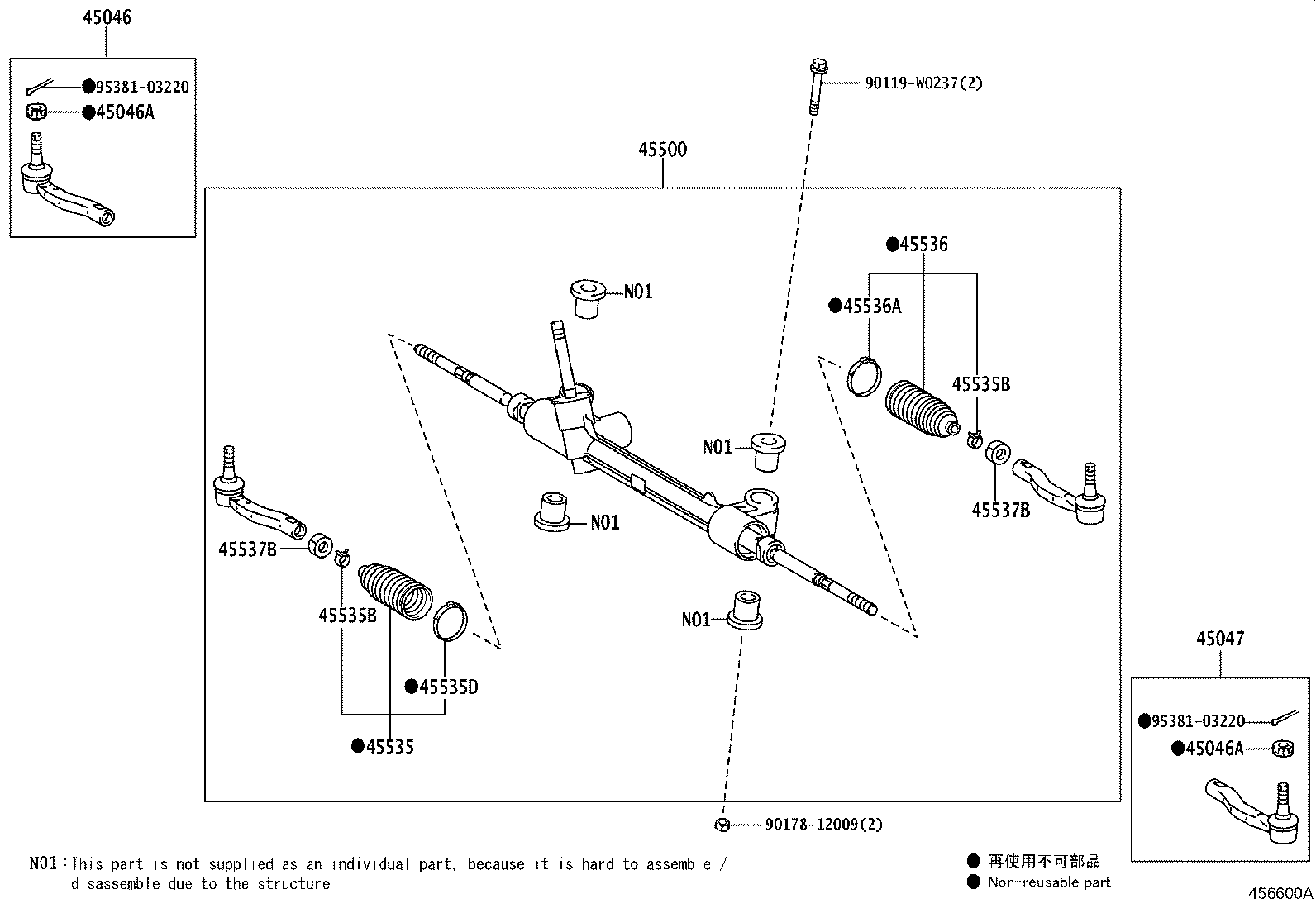

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45500 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 90119W0237 9017812009 9538103220 9538103220
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09860

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

 1
45046-09860

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 1
45047 - END SUB-ASSY, TIE ROD, LH
45046-09860

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

 1
45046-09860

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 1
45500 - LINK ASSY, STEERING
45500-0D310

NHP130..RHD..N;KSP130,NLP130,NSP131..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

 1
45500-0D310

NHP130..RHD..N;KSP130,NLP130,NSP131..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 1
45537B - NUT, RACK END LOCK
90178-15003

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

 2
90178-15003

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 2
45537B - NUT, RACK END LOCK
90178-15003

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

 2
90178-15003

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

 2
Common parts
90119-W0237
90178-12009
95381-03220
