NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )6F

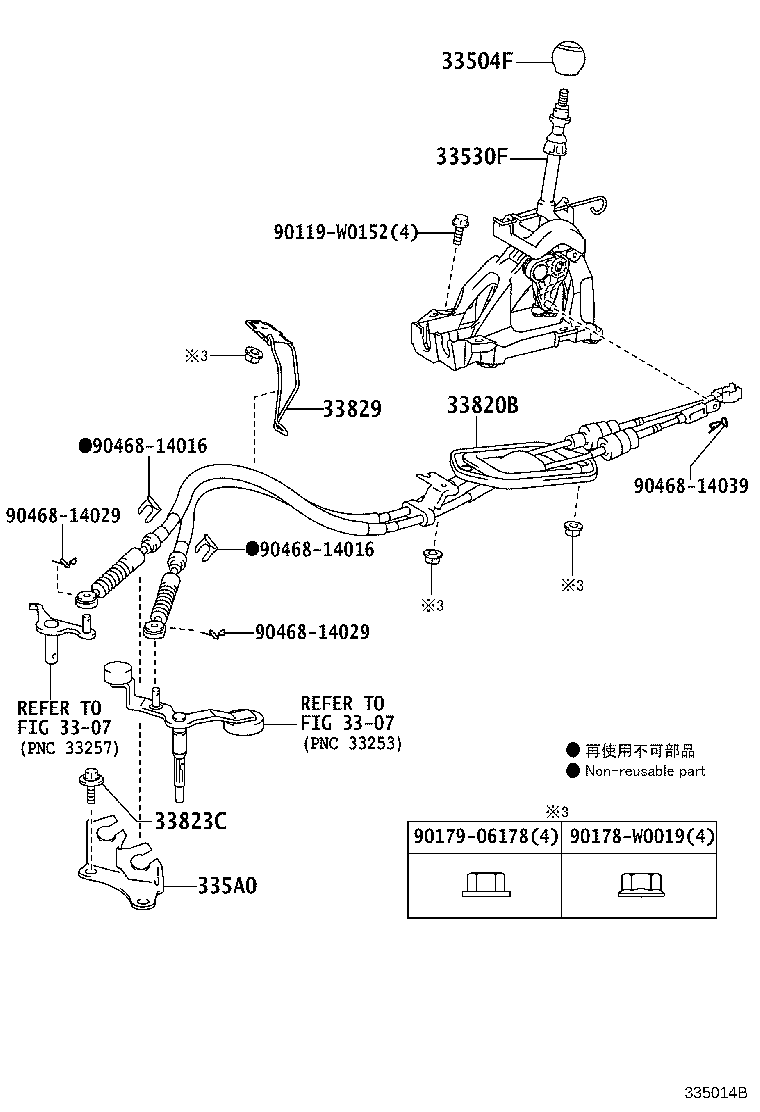

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 33829 90119W0152 90178W0019 9017906178 9046814016 9046814016 9046814029 9046814029 9046814039
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D130C3

NSP131..RHD..5D..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
33504-0D130C3

NSP131..RHD..5D..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SOUTH AFRICA SPEC&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
33504-0D130C3

NLP130,NSP131..R

BLACK,TRIM2#

 1
33504-0D130C3

NSP131..RHD..5D..6F..N

SHIFT LEVER & KNOB-URETHANE,BLACK,TRIM2#

 1
33504-0D670C1

NSP131..6F..S;NLP130..LHD..S

GRAY STITCH,TRIM20,21

 1
33504-0D670C0

NSP131..6F..S;NLP130..LHD..S

BLUE STITCH,TRIM20,21

 1
Common parts
90119-W0152
90178-W0019
90179-06178
90468-14016
90468-14029
90468-14039
Linked diagrams
3307
