NSP131R-CHFSBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Nov 2018
Engine 2NRFKE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )

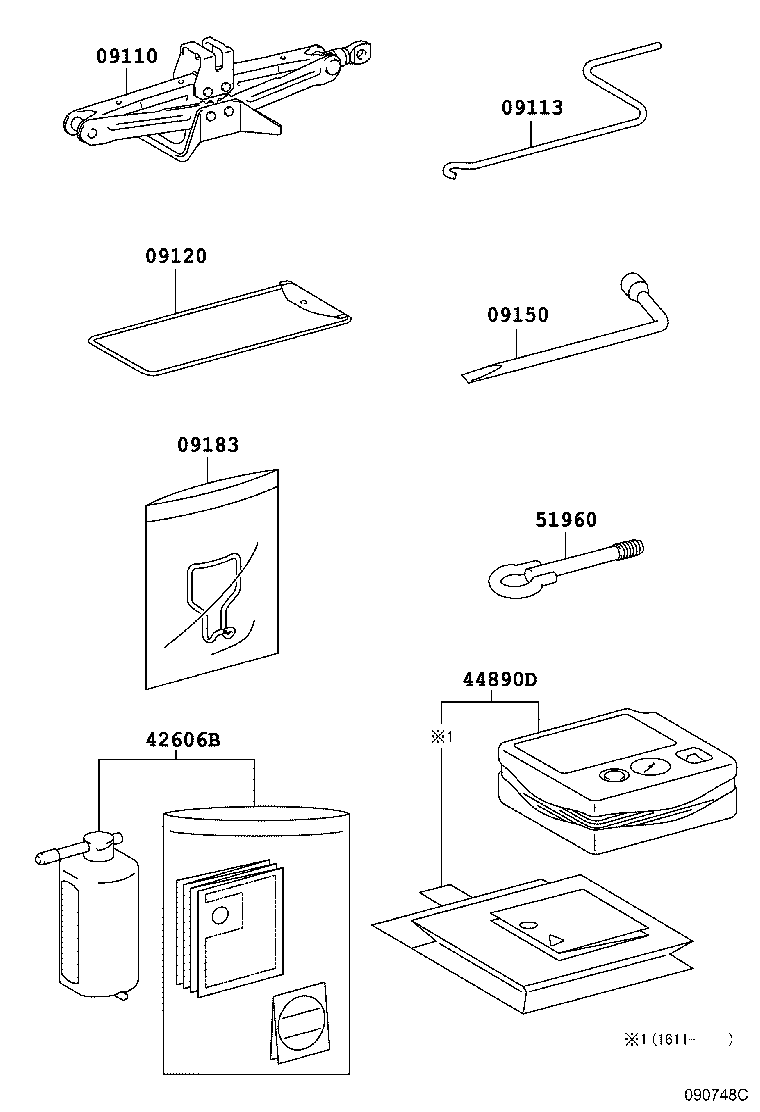

Click highlighted areas on diagram

diagram 09110 09113 09120 09150 09183 42606B 44890D 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-05050

NSP131..LHD..5D..R;KSP130,NSP131..RHD..5D..MTM..(G,N,R)

SPARE TIRE-T125/70D15

 1
09113 - HANDLE, JACK
09113-02051

NSP131..LHD..5D..R;KSP130,NSP131..RHD..5D..MTM..(G,N,R)

SPARE TIRE-T125/70D15

 1
09120 - BAG, TOOL
09120-37030

NSP131..LHD..5D..R;KSP130,NSP131..RHD..5D..MTM..(G,N,R)

SPARE TIRE-T125/70D15

 1
09120-37030

NSP131..S;NLP130..RHD..S

WHEEL CAP-FULL CAP,15 INCH&SPARE TIRE-GROUND TIRE(STEEL)

 1
09150 - WRENCH, HUB NUT BOX
09150-05011

NSP131..LHD..5D..R;KSP130,NSP131..RHD..5D..MTM..(G,N,R)

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&SPARE TIRE-T125/70D15

 1
09150-05011

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK&WHEEL CAP-CENTER ORNAMENT(FOR ALUMINUM WHEEL)&SPARE TIRE-T125/70D16

 1
09150-05011

NSP131..LHD..5D..R;KSP130,NSP131..RHD..5D..MTM..(G,N,R)

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR ALUMINUM WHEEL)&SPARE TIRE-T125/70D15

 1
09150-05011

NSP131..S;NLP130..RHD..S

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&WHEEL CAP-FULL CAP,15 INCH&SPARE TIRE-GROUND TIRE(STEEL)

 1
09150-05011

NHP130..N;KSP130,NSP131..G,N;NLP130..RHD..(G,N)

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM&WHEEL CAP-CENTER ORNAMENT(FOR ALUMINUM WHEEL)&SPARE TIRE-T125/70D16

 1
09150-05011

NSP131..RHD..6F..S

TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&SPARE TIRE-T125/70D15

 1
09150-05011

NSP131..RHD..6F..S

TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&WHEEL CAP-FULL CAP,15 INCH&SPARE TIRE-T125/70D15

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-02010

KSP130,NHP130,NLP130,NSP131

 1
42606-02010

NHP130..N;NSP131..5D..6F..N

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

 1
44890D - COMPRESSOR ASSY, AIR
42680-F4010

NHP130..N;NSP131..5D..6F..N

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

 1
42680-F4010

NLP130..RHD;KSP130,NHP130,NSP131

 1
