NSP131L-CHXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Jun 2020
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )NSP131..CVT

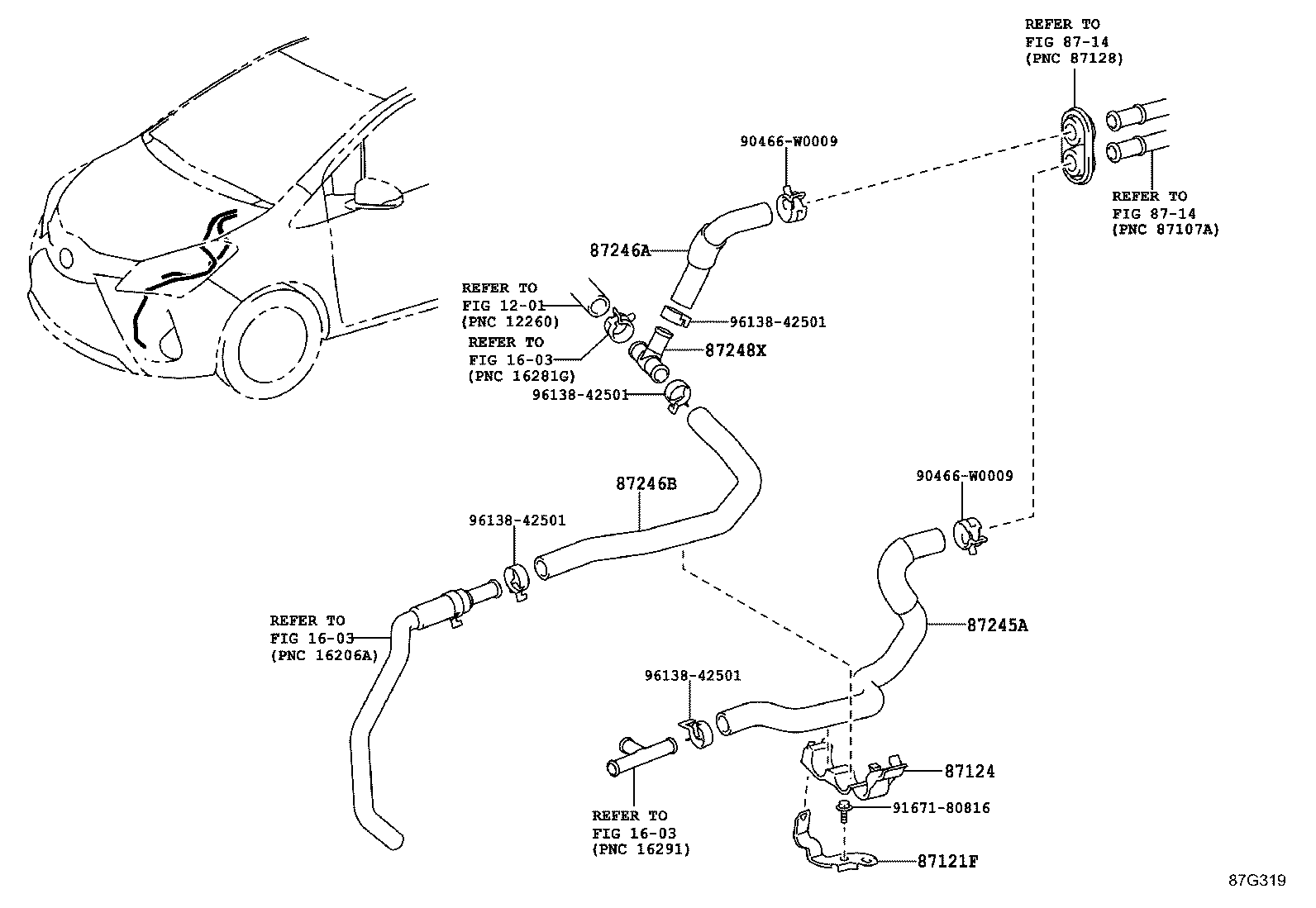

Click highlighted areas on diagram

diagram 1201 1603 1603 1603 87121F 87124 8714 8714 87245A 87246A 87246B 87248X 90466W0009 90466W0009 9167180816 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-0D100

NSP131..CVT

 1
87124 - CLAMP, HEATER
87124-0D590

NSP131..CVT

 1
87245A - HOSE, HEATER WATER, INLET A
87245-52230

NSP131

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-52280

NSP131..CVT

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-52290

NSP131..CVT

 1
87248X - PIPE, HEATER WATER
87248-26880

NSP131..CVT

 1
Common parts
90466-W0009
91671-80816
96138-42501
Linked diagrams
1201
1603
8714
