NSP131L-CHXNBW (2017)
Toyota Yaris/Hybrid(Frp)
(1703- )LHD

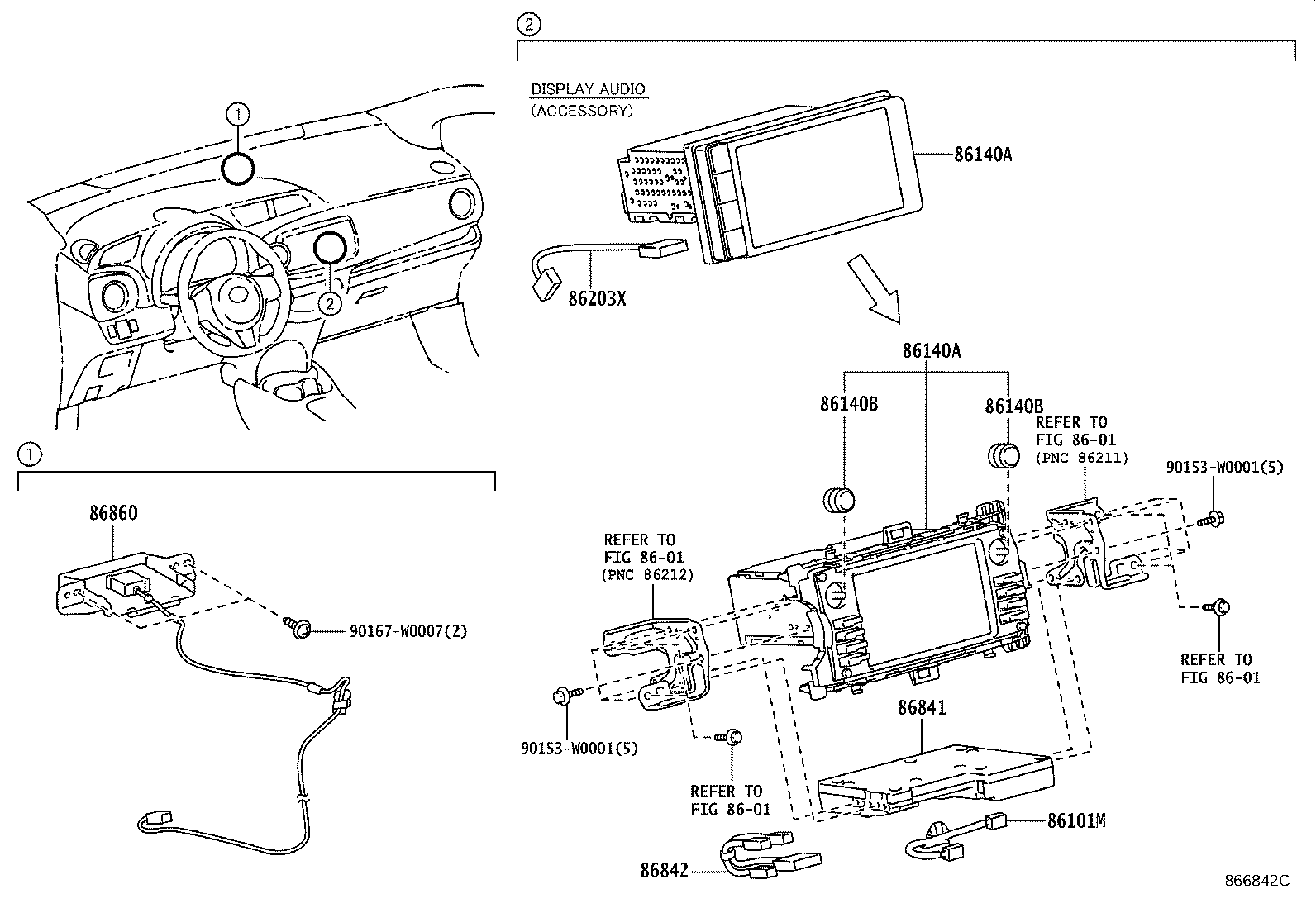

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86705-02070 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86705-02070 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86705-02070 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86705-02070 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0D350 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D310 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D350 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D360 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN |
1 | ||
| 86140-0D310 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) FUJITSU TEN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-0D320 |
KSP130,NLP130,NSP131..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D340 |
KSP130,NLP130,NSP131..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D340 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) FUJITSU TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D330 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-YY150 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) HARMAN,AUDIO-*DA LESS OR *DA(ACCESSORY) |
1 | ||
| 86140-0D330 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D311 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D311 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D331 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D331 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NSP131..LHD..R DENSO TEN,AUDIO-*DA & *BT & 6SPEAKER |
1 | ||
| 86140-0D341 |
KSP130,NSP131..LHD..R DENSO TEN,AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-YY150 |
KSP130,NHP130,NSP131..5D..(G,N) HARMAN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D341 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0D350 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D310 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D350 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D360 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D460 |
KSP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN |
1 | ||
| 86140-0D310 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) FUJITSU TEN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-0D320 |
KSP130,NLP130,NSP131..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D340 |
KSP130,NLP130,NSP131..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D340 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D320 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) FUJITSU TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D370 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D330 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-YY150 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) HARMAN,AUDIO-*DA LESS OR *DA(ACCESSORY) |
1 | ||
| 86140-0D330 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D311 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D311 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN |
1 | ||
| 86140-0D440 |
KSP130,NHP130,NSP131..LHD..5D..(G,N,S) FUJITSU TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D331 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D331 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NSP131..LHD..R DENSO TEN,AUDIO-*DA & *BT & 6SPEAKER |
1 | ||
| 86140-0D341 |
KSP130,NSP131..LHD..R DENSO TEN,AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86140-0D321 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-YY150 |
KSP130,NHP130,NSP131..5D..(G,N) HARMAN,AUDIO-TAS500 (ILA) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D341 |
KSP130,NHP130,NSP131..LHD..(G,N) DENSO TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D441 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,ANTENNA-SHARK FIN TYPE&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140-0D371 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) DENSO TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25299 |
KSP130,NLP130,NSP131..R AUDIO-*DA & *BT & 6SPEAKER |
2 | ||
| 90011-25299 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
2 | ||
| 90011-25299 |
KSP130,NHP130,NLP130,NSP131..G,N,S |
2 | ||
| 90011-25299 |
KSP130,NLP130,NSP131..R AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
2 | ||
| 90011-25299 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA) |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25299 |
KSP130,NLP130,NSP131..R AUDIO-*DA & *BT & 6SPEAKER |
2 | ||
| 90011-25299 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE |
2 | ||
| 90011-25299 |
KSP130,NHP130,NLP130,NSP131..G,N,S |
2 | ||
| 90011-25299 |
KSP130,NLP130,NSP131..R AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
2 | ||
| 90011-25299 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA) |
2 | ||
| 86203X - WIRING SUB-ASSY, RADIO | ||||
| 86203-YY110 |
KSP130,NHP130,NSP131..LHD..5D..(G,N) AUDIO-*DA LESS OR *DA(ACCESSORY) |
1 | ||
| 86203-YY150 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA) |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-0F020 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86840-0F040 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86840-0F040 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86840-0F040 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-12010 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86842-12010 |
KSP130,NHP130,NSP131..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86842-12010 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| 86842-12010 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-0D020 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE) |
1 | ||
| 86860-0D020 |
KSP130,NHP130,NLP130,NSP131..G,N,S EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC) |
1 | ||
| Common parts | ||||
| 90153-W0001 | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8601 | ||||
