NSP131L-CHXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Jun 2020
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1703- )LHD

Click highlighted areas on diagram

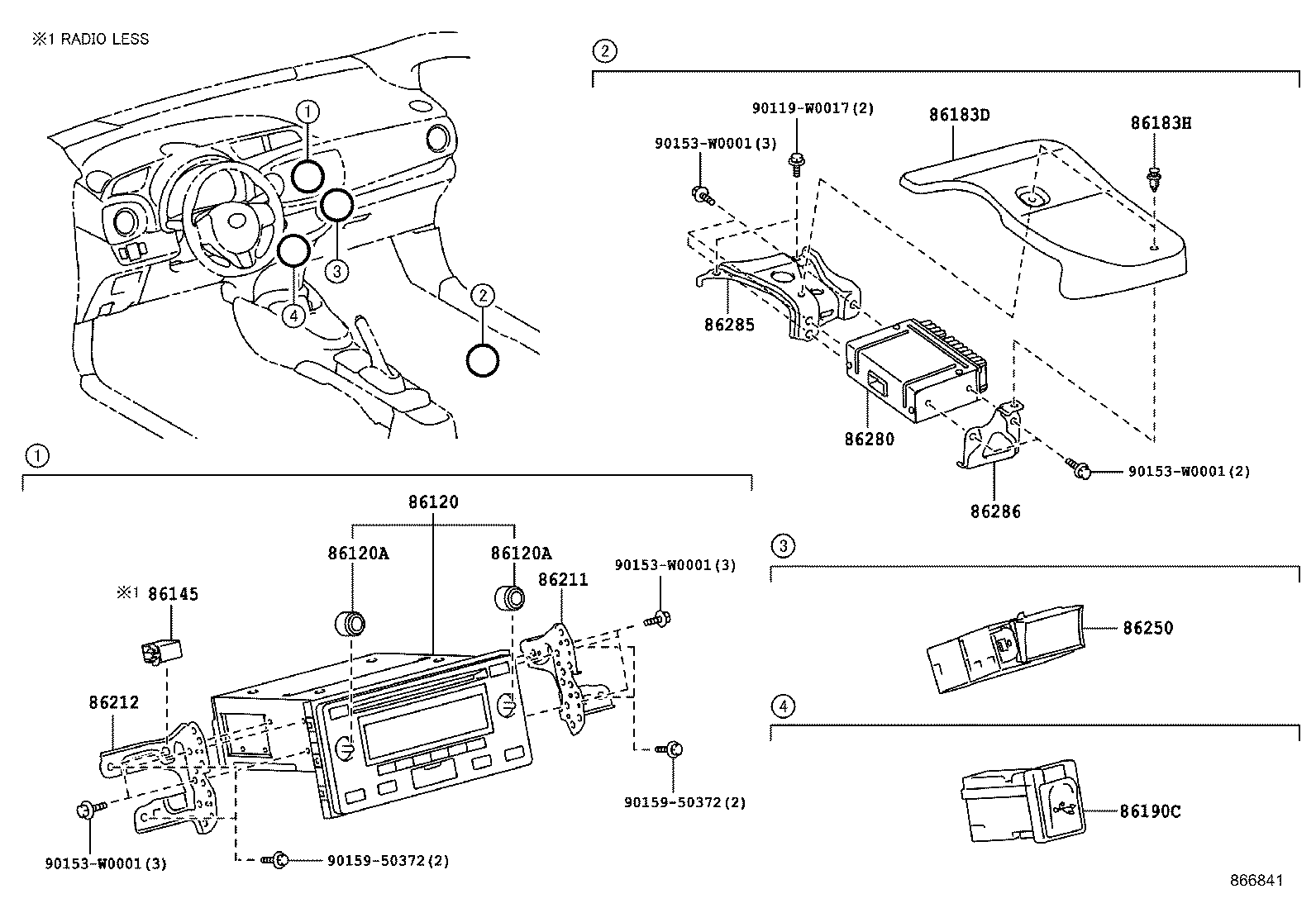

RECEIVER & AMPLIFIER

diagram 86120 86120A 86120A 86145 86183D 86183H 86190C 86211 86212 86250 86280 86285 86286 90119W0017 90153W0001 90153W0001 90153W0001 90153W0001 9015950372 9015950372
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0DC20

KSP130,NHP130,NLP130,NSP131..N

PANASONIC,AUDIO-FM/MW & CD & *BT & 6SPESKER

 1
86120-0DC20

KSP130,NLP130,NSP131..R

PANASONIC

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25290

KSP130,NLP130,NSP131..R

 2
90011-25290

KSP130,NHP130,NLP130,NSP131..N

AUDIO-FM/MW & CD & *BT & 6SPESKER

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25290

KSP130,NLP130,NSP131..R

 2
90011-25290

KSP130,NHP130,NLP130,NSP131..N

AUDIO-FM/MW & CD & *BT & 6SPESKER

 2
86145 - CONNECTOR, ANTENNA MALE
86145-52010

KSP130,NHP130,NLP130,NSP131..N,R

AUDIO-RADIO LESS & 6SPEAKER

 1
86183D - COVER, AUDIO AMPLIFIER
86183-0D010

NSP131..S;NLP130..RHD..(G,S);NSP131..LHD..5D..(G,N);KSP130,NHP130..LHD..5D..(G,N,S)

AUDIO-*DA & *BT & 8SPEAKER

 1
86183H - CLIP, AUDIO AMPLIFIER COVER
90467-07076C7

NSP131..S;NLP130..RHD..(G,S);NSP131..LHD..5D..(G,N);KSP130,NHP130..LHD..5D..(G,N,S)

AUDIO-*DA & *BT & 8SPEAKER,BLACK

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D060

KSP130,NHP130,NLP130,NSP131..G,N,S

 1
86190-0D060

KSP130,NLP130,NSP131..R

AUDIO-*DA & *BT & 6SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-0D130

KSP130,NLP130,NSP131..R

 1
86211-0D130

KSP130,NHP130,NLP130,NSP131..N

AUDIO-RADIO LESS & 6SPEAKER

 1
86211-0D130

KSP130,NHP130,NLP130,NSP131..N

AUDIO-FM/MW & CD & *BT & 6SPESKER

 1
86211-0D210

KSP130,NLP130,NSP131..R

AUDIO-*DA & *BT & 6SPEAKER

 1
86211-0D210

KSP130,NHP130,NLP130,NSP131..G,N,S

 1
86211-0D210

KSP130,NHP130,NSP131..5D..(G,N)

AUDIO-*DA LESS OR *DA(ACCESSORY)

 1
86212 - BRACKET, RADIO, NO.2
86212-0D130

KSP130,NHP130,NLP130,NSP131..N

AUDIO-FM/MW & CD & *BT & 6SPESKER

 1
86212-0D130

KSP130,NLP130,NSP131..R

 1
86212-0D200

KSP130,NHP130,NLP130,NSP131..G,N,S

 1
86212-0D200

KSP130,NHP130,NSP131..5D..(G,N)

AUDIO-*DA LESS OR *DA(ACCESSORY)

 1
86212-0D200

KSP130,NLP130,NSP131..R

AUDIO-*DA & *BT & 6SPEAKER

 1
86212-0D130

KSP130,NHP130,NLP130,NSP131..N

AUDIO-RADIO LESS & 6SPEAKER

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-0D030

KSP130,NHP130,NLP130,NSP131..LHD

 1
86250-0D030

NLP130..LHD..(N,R);KSP130,NHP130,NSP131..LHD..5D..(N,R)

AUDIO-RADIO LESS & 6SPEAKER

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0D010

NSP131..S;NLP130..RHD..(G,S);NSP131..LHD..5D..(G,N);KSP130,NHP130..LHD..5D..(G,N,S)

AUDIO-*DA & *BT & 8SPEAKER

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-0D010

NSP131..S;NLP130..RHD..(G,S);NSP131..LHD..5D..(G,N);KSP130,NHP130..LHD..5D..(G,N,S)

AUDIO-*DA & *BT & 8SPEAKER

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-0D010

NSP131..S;NLP130..RHD..(G,S);NSP131..LHD..5D..(G,N);KSP130,NHP130..LHD..5D..(G,N,S)

AUDIO-*DA & *BT & 8SPEAKER

 1
Common parts
90119-W0017
90153-W0001
90159-50372
