NSP131L-CHXNBW (2017)
Toyota Yaris/Hybrid(Frp)

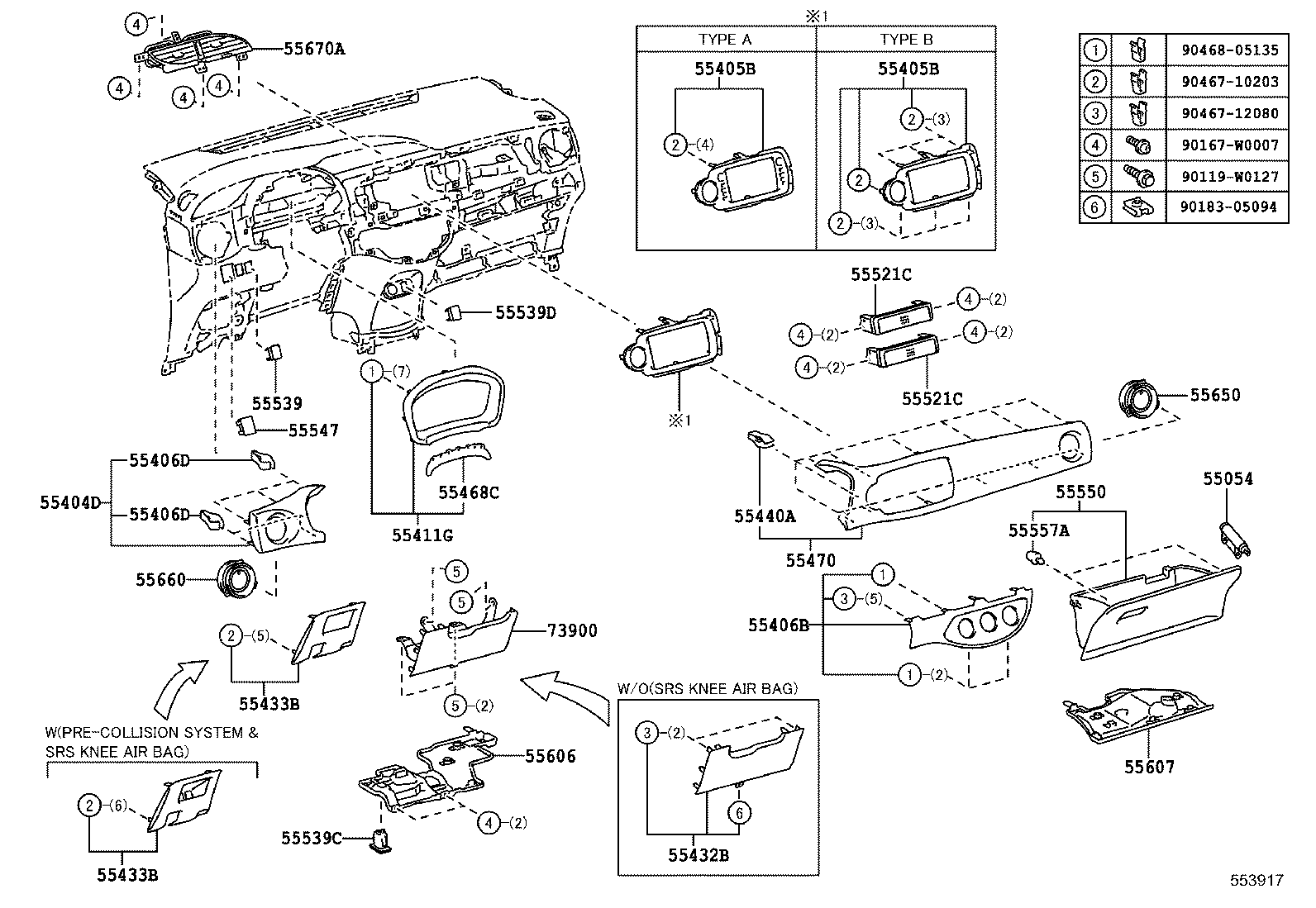

ILLUST NO. 2 OF 2(1703- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
KSP130,NHP130,NLP130,NSP131 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0D020B1 |
KSP130,NLP130,NSP131..LHD..R EUROPE GRAY,TRIM2# |
1 | ||
| 55404-0D070D1 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N) BURGUNDY,TRIM20,21 |
1 | ||
| 55404-0D070J0 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,S) GEO BLUE,TRIM20,21 |
1 | ||
| 55404-0D070C2 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N,S) BLACK,TRIM20,21 |
1 | ||
| 55404-0D070C2 |
KSP130,NHP130,NSP131..LHD..5D..N "Y20"20TH ANNIVERSARY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55404-0D070B5 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N) WARM GREY,TRIM20,21 |
1 | ||
| 55404-0D070B7 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..N MID GREY,TRIM20,21 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D620C0 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-*DA LESS OR *DA(ACCESSORY),BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NLP130,NSP131..R BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NLP130,NSP131..N AUDIO-FM/MW & CD & *BT & 6SPESKER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 86451-0D050C0 |
KSP130,NLP130,NSP131..LHD..R AUDIO-*DA & *BT & 6SPEAKER,BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NLP130,NSP131..N AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA),BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 86451-0D050C0 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D620C0 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-*DA LESS OR *DA(ACCESSORY),BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NLP130,NSP131..R BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NLP130,NSP131..N AUDIO-FM/MW & CD & *BT & 6SPESKER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 86451-0D050C0 |
KSP130,NLP130,NSP131..LHD..R AUDIO-*DA & *BT & 6SPEAKER,BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NLP130,NSP131..N AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55405-0D620C0 |
KSP130,NHP130,NSP131..5D..(G,N) AUDIO-TAS500 (ILA),BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 86451-0D050C0 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D390C2 |
KSP130,NLP130,NSP131..LHD..(N,S) FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55406-0D390C2 |
KSP130,NLP130,NSP131..LHD..(N,R,S) BLACK,TRIM2# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 67773-07020 |
KSP130,NLP130,NSP131..R |
6 | ||
| 90467-13082A0 |
KSP130,NHP130,NLP130,NSP131..G,N,S MELLOW WHITE |
6 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 67773-07020 |
KSP130,NLP130,NSP131..R |
6 | ||
| 90467-13082A0 |
KSP130,NHP130,NLP130,NSP131..G,N,S MELLOW WHITE |
6 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D250C1 |
KSP130,NHP130,NLP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D030C1 |
NSP131..LHD..5D..CVT PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D380C0 |
KSP130,NHP130,NLP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C1 |
KSP130,NHP130,NSP131..LHD PRE-COLLISION SYSTEM-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433-0D180C0 |
KSP130,NHP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C1 |
NSP131..LHD..5D..CVT PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D380C0 |
KSP130,NHP130,NLP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C1 |
KSP130,NHP130,NSP131..LHD PRE-COLLISION SYSTEM-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 55433-0D180C0 |
KSP130,NHP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| 55433-0D030C1 |
NSP131..LHD..5D..CVT PRE-COLLISION SYSTEM-WITHOUT&SRS AIR BAG-W(*DRP & SIDE),EU BLACK,TRIM2# |
1 | ||
| 55440A - CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) | ||||
| 90467-13082A0 |
KSP130,NHP130,NLP130,NSP131..G,N,S MELLOW WHITE |
13 | ||
| 67773-07020 |
KSP130,NLP130,NSP131..R |
13 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D170 |
KSP130,NHP130,NLP130,NSP131..LHD |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0D090D1 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N) BURGUNDY,TRIM20,21 |
1 | ||
| 55470-0D090B7 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..N MID GREY,TRIM20,21 |
1 | ||
| 55470-0D090B5 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N) WARM GREY,TRIM20,21 |
1 | ||
| 55470-0D090J0 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,S) GEO BLUE,TRIM20,21 |
1 | ||
| 55470-0D090C2 |
KSP130,NHP130,NLP130,NSP131..LHD..5D..(G,N,S) BLACK,TRIM20,21 |
1 | ||
| 55470-0D110C0 |
KSP130,NHP130,NSP131..LHD..5D..N "Y20"20TH ANNIVERSARY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55470-0D070B1 |
KSP130,NLP130,NSP131..LHD..R EUROPE GRAY,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
KSP130,NHP130,NLP130,NSP131..N,R AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
KSP130,NHP130,NLP130,NSP131..N,R AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
KSP130,NHP130,NLP130,NSP131..LHD BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
NHP130..S;KSP130,NSP131;NHP130..LHD..(G,N) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&TIRE& DISC WHEEL-185/60R15, 5.5J STEEL BLACK |
1 | ||
| 55539-48020 |
NHP130..S;KSP130,NSP131;NHP130..LHD..(G,N) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&TIRE& DISC WHEEL-185/60R15, 5.5J ALUMI |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
KSP130,NLP130,NSP131..R BLACK |
1 | ||
| 55539-52070C0 |
KSP130,NLP130,NSP131..N AUDIO-FM/MW & CD & *BT & 6SPESKER,BLACK |
1 | ||
| 55539-52070C0 |
KSP130,NLP130,NSP131..N AUDIO-RADIO LESS & 6SPEAKER,BLACK |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010C0 |
NHP130..N;KSP130,NLP130,NSP131..R OUTSIDE REAR VIEW MIRROR-MANUAL MIRROR,BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D171C1 |
KSP130,NLP130,NSP131..LHD..(N,S) FRONT AIR CONDITIONER-AUTO,EU BLACK,TRIM2# |
1 | ||
| 55550-0D151C1 |
KSP130,NHP130,NLP130,NSP131..LHD..(N,R,S) EU BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
KSP130,NHP130,NLP130,NSP131 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D050 |
KSP130,NHP130,NLP130,NSP131..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D050 |
KSP130..LHD..(G,N);NHP130,NLP130,NSP131..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-52240C3 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| 55680-52240C2 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| 55680-52260C3 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55680-52280C3 |
KSP130,NHP130,NSP131..5D..N "Y20"20TH ANNIVERSARY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55680-52260C4 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-52270C3 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55680-52250C3 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| 55680-52250C2 |
KSP130,NLP130,NSP131..R BLACK,TRIM2# |
1 | ||
| 55680-52270C4 |
KSP130,NHP130,NLP130,NSP131..N,S BLACK,TRIM2# |
1 | ||
| 55680-52290C3 |
KSP130,NHP130,NSP131..5D..N "Y20"20TH ANNIVERSARY PACKAGE,BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D240C1 |
KSP130,NLP130,NSP131..LHD..R EU BLACK,TRIM2# |
1 | ||
| 55670-0D260C1 |
KSP130,NHP130,NLP130,NSP131..LHD..(G,N,S) EU BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D031C1 |
KSP130,NHP130,NLP130,NSP131..LHD EU BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
