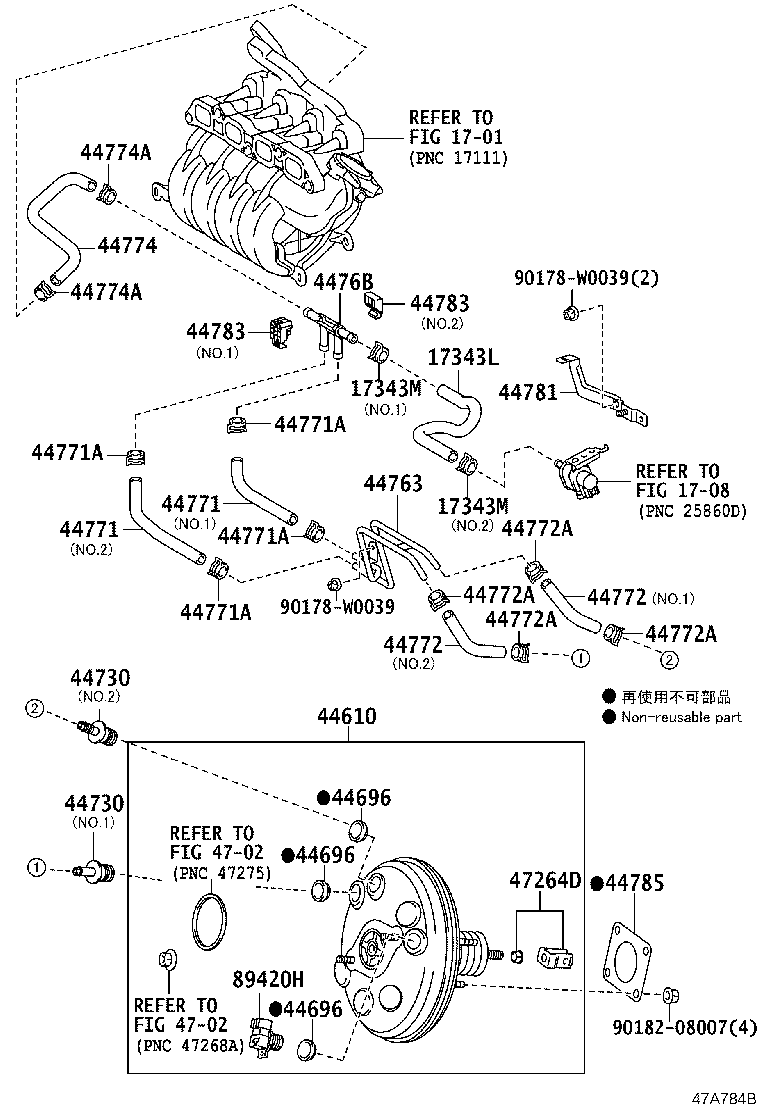

NSP131L-CHXNBW (2017)
Toyota Yaris/Hybrid(Frp)
(1703- )NSP131..LHD..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343L - HOSE, AIR, NO.3 | ||||
| 44727-52020 |
2NRFKE..NSP131..LHD..CVT |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-16014 |
2NRFKE..NSP131..CVT NO.1:REFER ILLUST. |
1 | ||
| 96133-41501 |
2NRFKE..NSP131..CVT NO.2:REFER ILLUST. |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-16014 |
2NRFKE..NSP131..CVT NO.1:REFER ILLUST. |
1 | ||
| 96133-41501 |
2NRFKE..NSP131..CVT NO.2:REFER ILLUST. |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-09F30 |
NSP131..LHD..CVT |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 44692-0D020 |
NSP131..CVT |
3 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 44692-0D020 |
NSP131..CVT |
3 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 44692-0D020 |
NSP131..CVT |
3 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-0D010 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44730-0D050 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-0D010 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44730-0D050 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52180 |
NSP131..LHD..CVT |
1 | ||
| 4476B - EJECTOR, BRAKE BOOSTER VACUUM | ||||
| 4476B-48010 |
NSP131..CVT |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-52020 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44771-52010 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-52020 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44771-52010 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
NSP131..LHD..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
NSP131..LHD..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
NSP131..LHD..CVT |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16014 |
NSP131..LHD..CVT |
4 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52310 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44772-52300 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52310 |
NSP131..LHD..CVT NO.2:REFER ILLUST. |
1 | ||
| 44772-52300 |
NSP131..LHD..CVT NO.1:REFER ILLUST. |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP131..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP131..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP131..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP131..CVT |
4 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52180 |
NSP131..LHD..CVT |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP131..CVT;NSP131..LHD..6F |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP131..CVT;NSP131..LHD..6F |
2 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-0D200 |
NSP131..LHD..CVT |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52090 |
NSP131..CVT NO.1:REFER ILLUST. |
1 | ||
| 44783-52100 |
NSP131..CVT NO.2:REFER ILLUST. |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52090 |
NSP131..CVT NO.1:REFER ILLUST. |
1 | ||
| 44783-52100 |
NSP131..CVT NO.2:REFER ILLUST. |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
KSP130,NLP130,NSP131 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-09010 |
KSP130,NLP130,NSP131..LHD |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-0D010 |
NSP131 |
1 | ||
| Common parts | ||||
| 90178-W0039 | ||||
| 90182-08007 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 4702 | ||||
