NSP131L-CHXNBW (2017)
Toyota Yaris/Hybrid(Frp)
(1811- )NHP130,NSP131
3-SPOKE GR SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0D630C1 |
NLP130..S;KSP130,NHP130,NSP131 EU BLACK,TRIM2# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-0D190C2 |
NSP131..CVT EU BLACK,TRIM2# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL)&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK,EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
NSP131..S;NLP130..RHD..S CRUISE CONTROL-WITHOUT&STEERING SWITCH-W(AUDIO & TELEPHONE),EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
NSP131..S;NLP130..RHD..S CRUISE CONTROL-WITHOUT&STEERING SWITCH-WITH(AUDIO & METER)&SPEEDOMETER-KM/H,WITH(TFT MULTI INFORMATION DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & SPEED LIMITER CONTROL & METER)&SPEEDOMETER-KM/H,WITH(TFT MULTI INFORMATION DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
KSP130,NHP130,NSP131..N,R EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NLP130..RHD..S;KSP130,NHP130,NSP131..G,S EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..RHD..3D;NSP131..5D..CVT..N;NSP131..RHD..5D..R;NSP131..LHD..3D..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..RHD..3D;NSP131..5D..CVT..N;NSP131..RHD..5D..R;NSP131..LHD..3D..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D;NSP131..5D..R;NSP131..5D..CVT..N REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D..N;NSP131..5D..CVT..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & SPEED LIMITER CONTROL & METER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D;NSP131..5D..R;NSP131..5D..CVT..N REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL)&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..N;NSP131..RHD..(N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK,EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
NSP131..S;NLP130..RHD..S CRUISE CONTROL-WITHOUT&STEERING SWITCH-W(AUDIO & TELEPHONE),EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
NSP131..S;NLP130..RHD..S CRUISE CONTROL-WITHOUT&STEERING SWITCH-WITH(AUDIO & METER)&SPEEDOMETER-KM/H,WITH(TFT MULTI INFORMATION DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK&SPEEDOMETER-KM/H,WITH(TACHOMETER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & SPEED LIMITER CONTROL & METER)&SPEEDOMETER-KM/H,WITH(TFT MULTI INFORMATION DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&SPEEDOMETER-KM/H,WITH(TACHOMETER)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D020C2 |
KSP130,NHP130,NSP131..N,R EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NLP130..RHD..S;KSP130,NHP130,NSP131..G,S EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..RHD..3D;NSP131..5D..CVT..N;NSP131..RHD..5D..R;NSP131..LHD..3D..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..RHD..3D;NSP131..5D..CVT..N;NSP131..RHD..5D..R;NSP131..LHD..3D..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D;NSP131..5D..R;NSP131..5D..CVT..N REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D..N;NSP131..5D..CVT..N CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & SPEED LIMITER CONTROL & METER),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..3D;NSP131..5D..R;NSP131..5D..CVT..N REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO & TEL & SPEED LIMITER CONTROL),EU BLACK,TRIM2# |
1 | ||
| 45186-0D030C2 |
NSP131..LHD..R CRUISE CONTROL-WITH&STEERING SWITCH-W(AUDIO)&AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
KSP130,NHP130,NLP130,NSP131 |
1 | ||

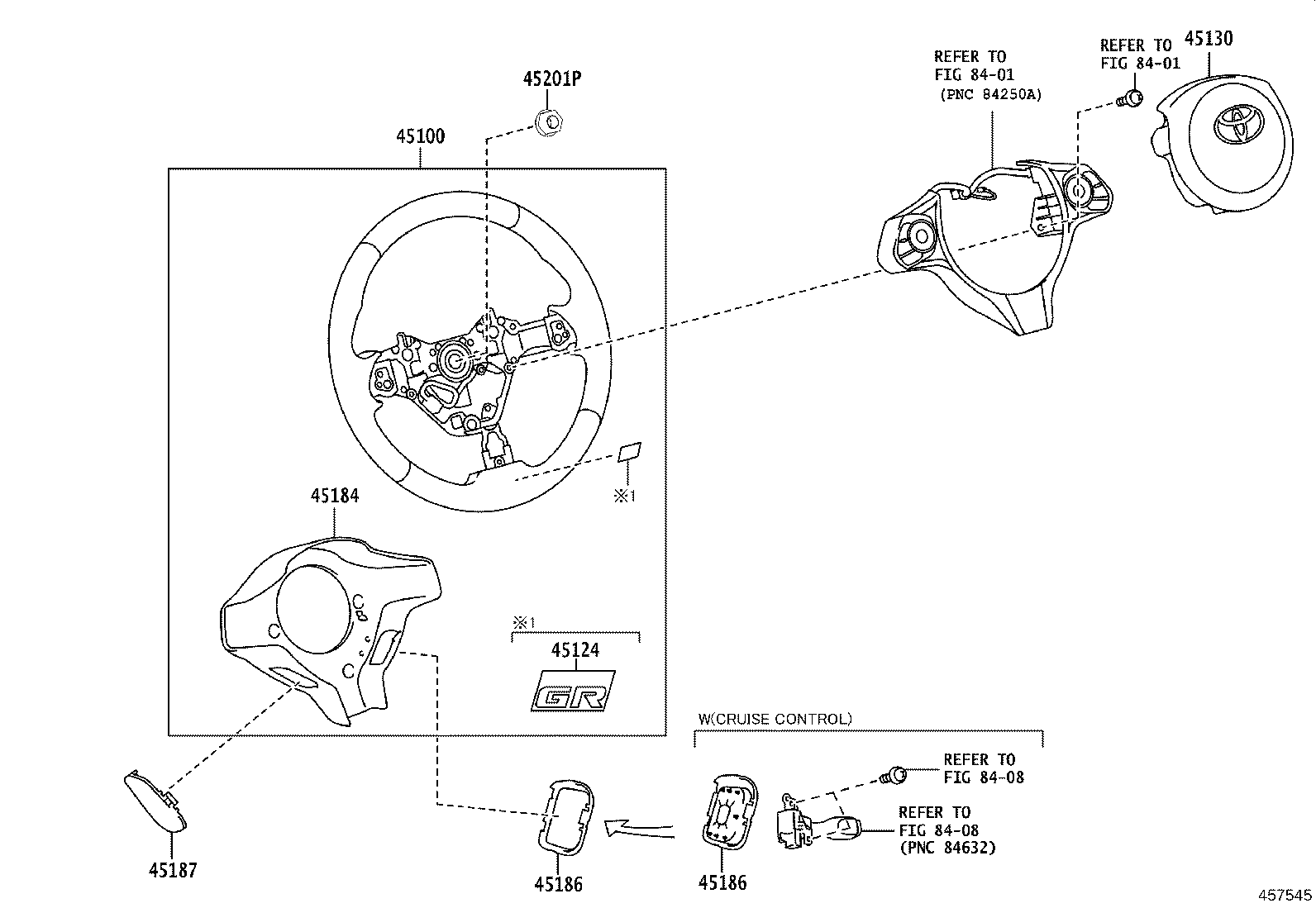

| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
