NSP131L-CHXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Jun 2020
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )NSP131..LHD..CVT

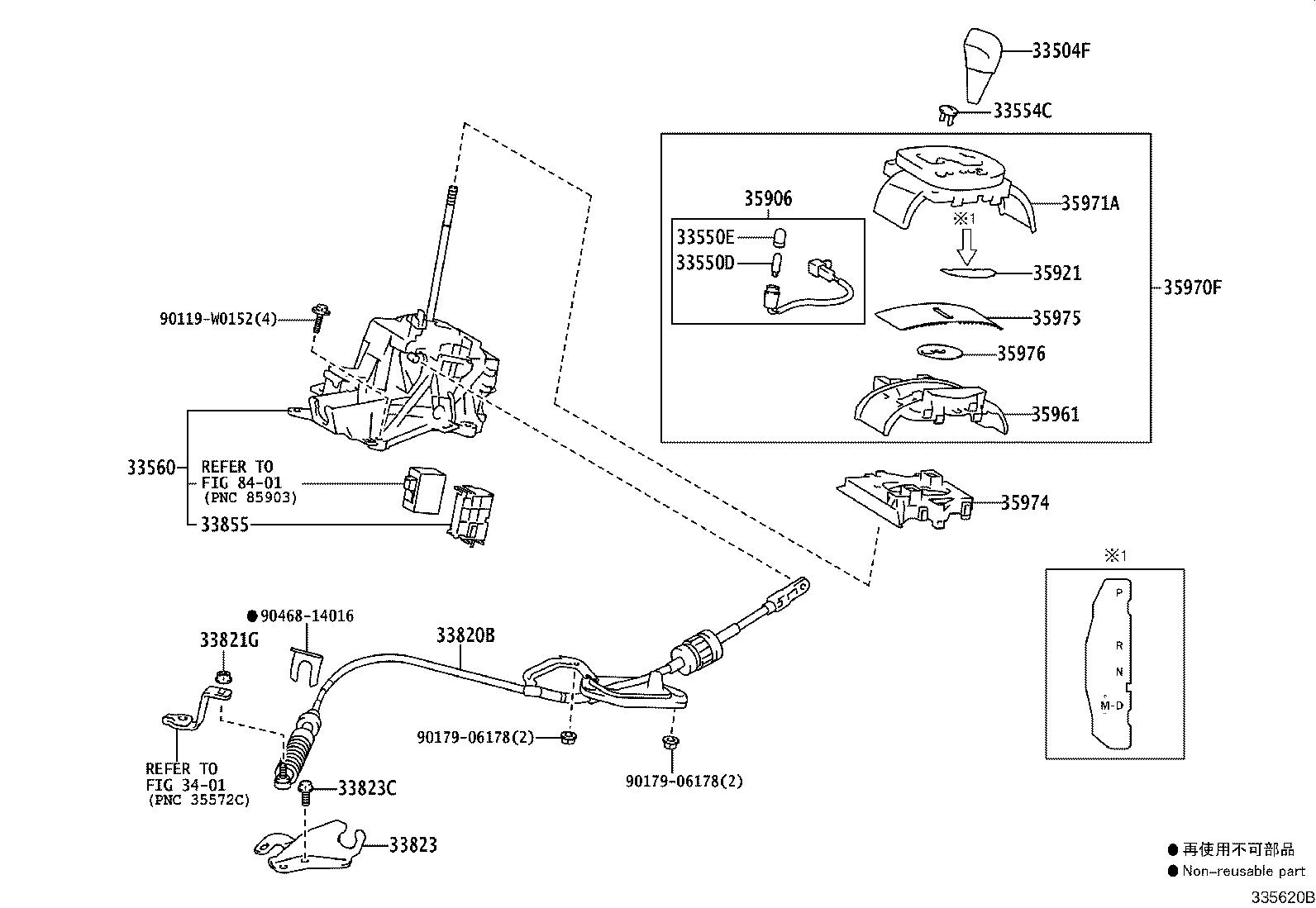

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 33820B 33821G 33823 33823C 33855 3401 35906 35921 35961 35970F 35971A 35974 35975 35976 8401 90119W0152 9017906178 9017906178 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D130C3

NLP130,NSP131..R

BLACK,TRIM2#

 1
33504-0D660C1

NHP130..LHD..S;NSP131..CVT..S

GRAY,TRIM20,21

 1
33504-0D660C0

NHP130..LHD..S;NSP131..CVT..S

BLUE,TRIM20,21

 1
33504-0D270B3

NLP130,NSP131..LHD..R

SHIFT LEVER & KNOB-LEATHER,SILVER/BLACK,TRIM2#

 1
33504-0D490C2

NSP131..CVT..N

EU/INT PIANO BLACK/BLACK,TRIM2#

 1
33504-0D240C4

NSP131..5D..CVT..N

SHIFT LEVER & KNOB-LEATHER,EU PIANO BLACK/BLACK/GRAY,TRIM20,21

 1
33504-0D240C5

NSP131..5D..CVT..N

SHIFT LEVER & KNOB-LEATHER,BURGUNDY STITCH,TRIM20,21

 1
33504-0D240B8

NSP131..5D..CVT..N

SHIFT LEVER & KNOB-LEATHER,BLACK&GRAY ME.&GRAY 205,TRIM20,21

 1
33504-0D130C0

NLP130,NSP131..R

BLACK,TRIM2#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-52010

NHP130,NSP131..CVT

13.5V 2.0W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52050

NHP130,NSP131..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-52100

NHP130,NSP131..LHD..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52510

NSP131..LHD..CVT

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52A60

NSP131..CVT

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NHP130,NSP131..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NSP131..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0027

NSP131..CVT

 2
33855 - COVER, SHIFT LOCK UNIT
33855-52020

NHP130,NSP131..CVT

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52270

NHP130,NSP131..CVT

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-52310

NSP131..LHD..CVT

 1
35961 - HOUSING, POSITION INDICATOR LAMP
35961-52070

NHP130,NSP131..LHD..CVT

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52280C1

NSP131..LHD..CVT

BLACK,TRIM2#

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-52660

NSP131..LHD..CVT

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52150

NHP130,NSP131..LHD..CVT

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52130

NHP130,NSP131..CVT

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52130

NHP130,NSP131..CVT

 1
Common parts
90119-W0152
90179-06178
90468-14016
Linked diagrams
3401
8401
