NSP131L-CHXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Jun 2020
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1703- )2NRFKE

Click highlighted areas on diagram

RADIATOR SIDE

diagram 1104 16360A 16361 16363 16374 16400 16400B 16400F 16401 16431 16431A 16470A 16470B 16471 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16711 7403 9009904119 9009905164 9331514010 9338516016
Part # Description Qty Price
16360A - FAN ASSY, W/MOTOR
16360-0Y110

2NRFKE..NSP131

 1
16361 - FAN
16361-0Y250

2NRFKE..NSP131

 1
16363 - MOTOR, COOLING FAN
16363-0G051

1NDTV,2NRFKE..NLP130,NSP131

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-0Y110

2NRFKE..NSP131

 1
16400 - RADIATOR ASSY
16400-0Y260

2NRFKE..NSP131

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0Q040

1NDTV,2NRFKE..NLP130,NSP131

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1N#,2NRFKE..NHP130,NLP130,NSP131

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36020

2NRFKE..NSP131

 1
16431 - INLET, RADIATOR WATER
16431-0Y260

2NRFKE..NSP131

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0Y070

2NRFKE..NSP131

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16378-0Y110

2NRFKE..NSP131

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1NZFXE,2NRFKE..NHP130,NSP131

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-23030

2NRFKE..NSP131

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0Q020

1N#,2NRFKE..NHP130,NLP130,NSP131

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-W0005

1N#,2NRFKE..NHP130,NLP130,NSP131

 2
16571C - HOSE, RADIATOR, NO.1
16571-47120

2NRFKE..NSP131

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0011

1NDTV,2NRFKE..NLP130,NSP131

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0011

1NDTV,2NRFKE..NLP130,NSP131

 2
16572D - HOSE, RADIATOR, NO.2
16572-47140

2NRFKE..NSP131

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0011

1NDTV,2NRFKE..NLP130,NSP131

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0011

1NDTV,2NRFKE..NLP130,NSP131

 2
16711 - SHROUD, FAN
16711-0Y230

2NRFKE..NSP131

 1
Common parts
90099-04119
90099-05164
93315-14010
93385-16016
Linked diagrams
1104
7403

ILLUST NO. 2 OF 2(1703- )2NRFKE..CVT

Click highlighted areas on diagram

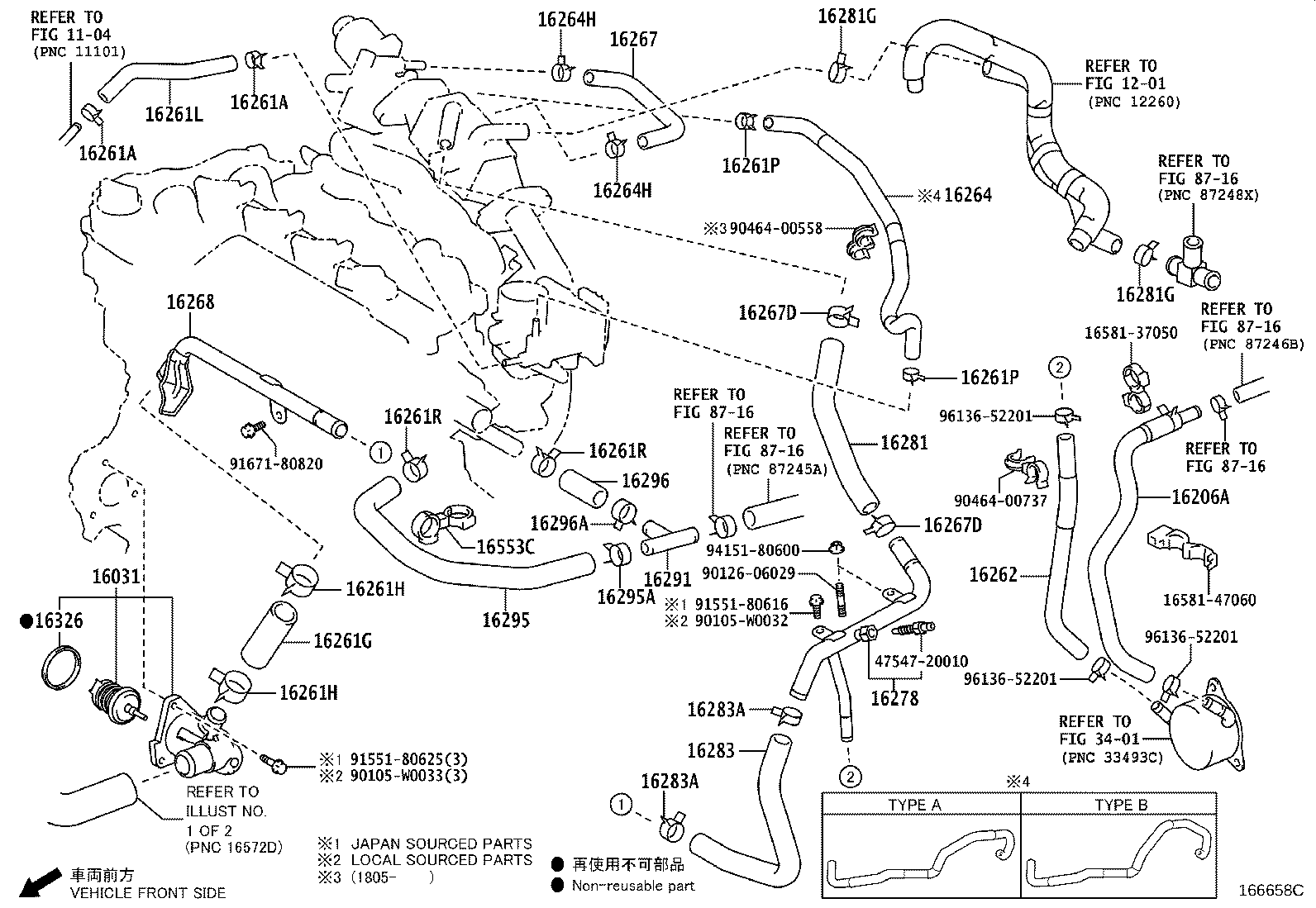

ENGINE SIDE

diagram 1104 1201 16031 16206A 16261A 16261A 16261G 16261H 16261H 16261L 16261P 16261P 16261R 16261R 16262 16264 16264H 16264H 16267 16267D 16267D 16268 16278 16281 16281G 16281G 16283 16283A 16283A 16291 16295 16295A 16296 16296A 16326 16553C 1658137050 1658147060 3401 4754720010 8716 8716 8716 8716 8716 90105W0032 90105W0033 9012606029 9046400558 9046400737 9155180616 9155180625 9167180820 9415180600 9613652201 9613652201 9613652201
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-47041

2NRFKE..NSP131

 1
16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16260-47140

2NRFKE..NSP131..CVT

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501

1NZFXE,2NRFKE..NHP130,NSP131

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501

1NZFXE,2NRFKE..NHP130,NSP131

 2
16261G - HOSE, WATER BY-PASS, NO.1
16261-47020

2NRFKE..NSP131

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

2NRFKE..NSP131

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

2NRFKE..NSP131

 2
16261L - HOSE, WATER BY-PASS
16261-47100

2NRFKE..NSP131

 1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

2NRFKE..NSP131

 2
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

2NRFKE..NSP131

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90466-W0007

2NRFKE..NSP131

 1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90466-W0007

2NRFKE..NSP131

 1
16262 - HOSE, WATER INLET
16262-47030

2NRFKE..NSP131..CVT

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y180

2NRFKE..NSP131

TYPE A:REFER ILLUST.

 1
16264-0Y181

2NRFKE..NSP131

TYPE B:REFER ILLUST.

 1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

2NRFKE..NSP131

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

2NRFKE..NSP131

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-47010

2NRFKE..NSP131

 1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-W0007

2NRFKE..NSP131

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-W0007

2NRFKE..NSP131

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-47090

2NRFKE..NSP131

 1
16278 - PIPE, WATER BY-PASS, NO.2
16270-47030

2NRFKE..NSP131..CVT

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-47030

2NRFKE..NSP131

 1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-21001

2NRFKE..NSP131..CVT;2NRFKE..NSP131..6F..S

(J)

 2
90466-W0009

2NRFKE..NSP131..CVT;2NRFKE..NSP131..6F..S

(L)

 2
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-21001

2NRFKE..NSP131..CVT;2NRFKE..NSP131..6F..S

(J)

 2
90466-W0009

2NRFKE..NSP131..CVT;2NRFKE..NSP131..6F..S

(L)

 2
16283 - HOSE, WATER BY-PASS, NO.6
16283-47050

2NRFKE..NSP131

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-W0007

2NRFKE..NSP131

 2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-W0007

2NRFKE..NSP131

 2
16291 - JOINT, WATER HOSE
16291-47060

2NRFKE..NSP131

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-47040

2NRFKE..NSP131

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96138-42501

2NRFKE..NSP131

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-47040

2NRFKE..NSP131

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96138-42501

2NRFKE..NSP131

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47020

2NRFKE..NSP131

 1
16553C - CLAMP, HOSE
16581-37050

2NRFKE..NSP131

 1
Common parts
16581-37050
16581-47060
47547-20010
90105-W0032
90105-W0033
90126-06029
90464-00558
90464-00737
91551-80616
91551-80625
91671-80820
94151-80600
96136-52201
Linked diagrams
1104
1201
3401
8716
