NSP131L-CHXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Jun 2020
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2NRFKE..CVT

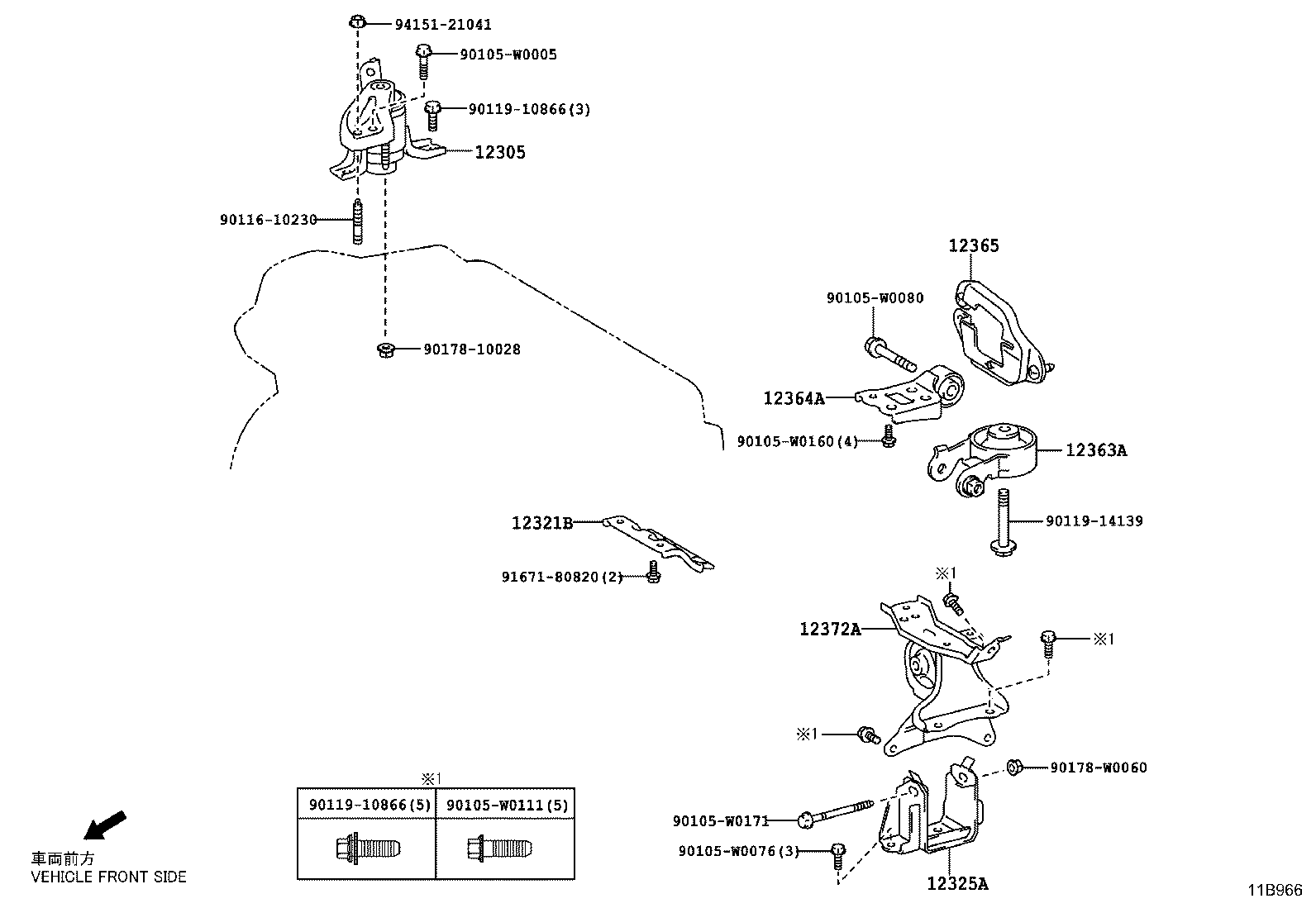

Click highlighted areas on diagram

diagram 12305 12321B 12325A 12363A 12364A 12365 12372A 90105W0005 90105W0076 90105W0080 90105W0111 90105W0160 90105W0171 9011610230 9011910866 9011910866 9011914139 9017810028 90178W0060 9167180820 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y220

2NRFKE..NSP131

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12070

2NRFKE..NSP131

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-47130

2NRFKE..NSP131..CVT

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y240

2NRFKE..NSP131..CVT

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-0Y150

2NRFKE..NSP131..CVT

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1NZFXE,2NRFKE..NHP130,NSP131..LHD

COLD AREA SPEC & W/O(REAR HEATER DUCT)

 1
12365-40010

1NZFXE,2NRFKE..NHP130,NSP131..LHD

COLD AREA SPEC & W(REAR HEATER DUCT)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-47180

2NRFKE..NSP131..CVT

 1
Common parts
90105-W0005
90105-W0076
90105-W0080
90105-W0111
90105-W0160
90105-W0171
90116-10230
90119-10866
90119-14139
90178-10028
90178-W0060
91671-80820
94151-21041
