NSP131L-CGXNBW (2017)

Toyota Yaris/Hybrid(Frp)

Production Mar 2017 - Dec 2019
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )2NRFKE..CVT

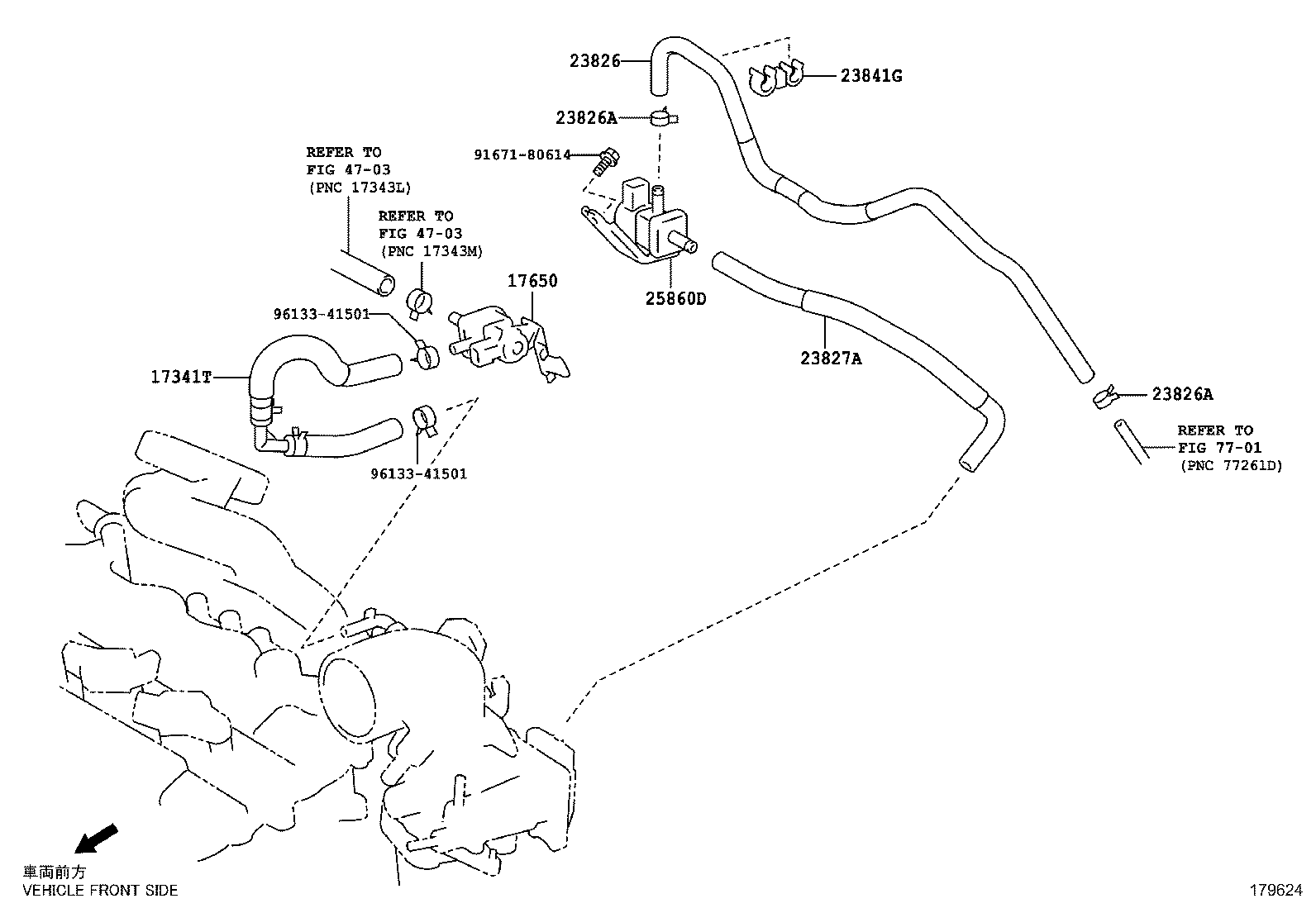

Click highlighted areas on diagram

diagram 17341T 17650 23826 23826A 23826A 23827A 23841G 25860D 4703 4703 7701 9167180614 9613341501 9613341501
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0Y250

2NRFKE..NSP131

 1
Common parts
91671-80614
96133-41501
Linked diagrams
4703
7701
